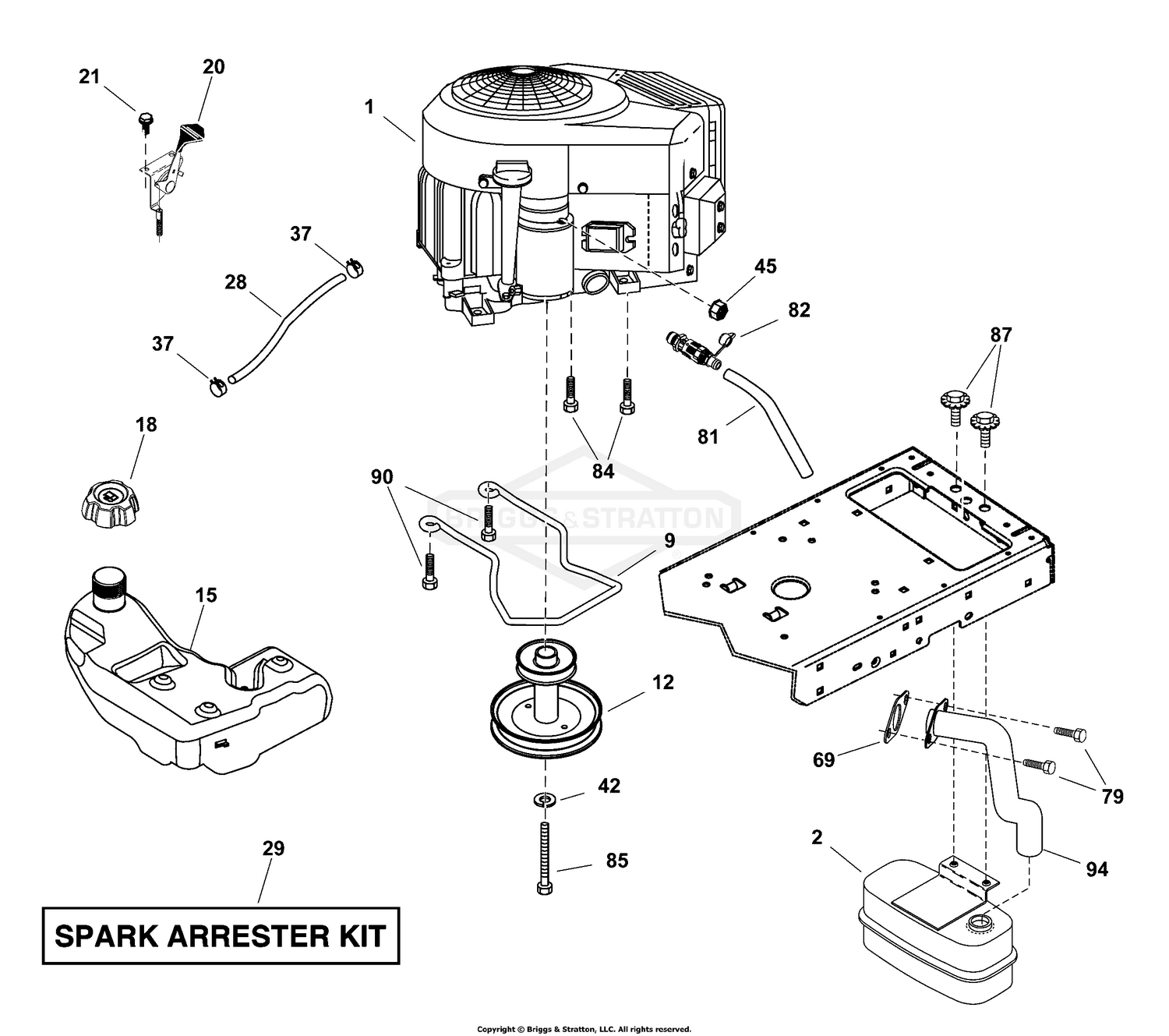

| Ref | Part Number | Description |
|---|
| 2 |
84005724 |
MUFFLER Price: $91.99 |
| 9 |
84004017 |
KEEPER, Engine Belt Price: $22.99 |
| 12 |
84005725 |
PULLEY ASSEMBLY Price: $77.99 |
| 15 |
84005640 |
TANK, Fuel Price: $406.59 |
| 18 |
84004237 |
CAP, Fuel Price: $82.99 |
| 20 |
84004019 |
CONTROL, Throttle/Choke Price: $76.99 |
| 21 |
705233 |
Screw #10 x 0.750 BOS Thread Price: $4.05 |
| 28 |
705141 |
Fuel Line Price: $38.63 |
| 29 |
703822 |
CAPSCREW,5/16-18X.625 This part replaces 705012. Price: $3.94 |
| 37 |
704997 |
Clamp Hose Price: $4.29 |
| 42 |
84004020 |
WASHER, 7/16 Lock SLW Price: $7.19 |
| 45 |
705346 |
Nut Keps Hex 1/4-20 unc Price: $4.79 |
| 69 |
692236 |
GASKET, Exhaust This part replaces 84004021. Price: $4.43 |
| 79 |
705054 |
Screw Socket HD 5/16-18 x .75 Price: $3.94 |
| 81 |
705023 |
Tube Drain Oil Easy Price: $7.59 |
| 82 |
705244 |
Valve Oil Drain Price: $21.88 |
| 84 |
705325 |
Screw 3/8-16 x 1-1/4 Price: $4.76 |
| 85 |
84004023 |
BOLT, 7/16-20 X 4 X GR. 5-1.5, Hex Price: $7.49 |
| 87 |
705031 |
Bolt 5/16-18 unc x 3/4 w/Sems Price: $6.42 |
| 90 |
705323 |
Screw Hexwsh Thd 3/8-16 x 1 Price: $9.51 |
