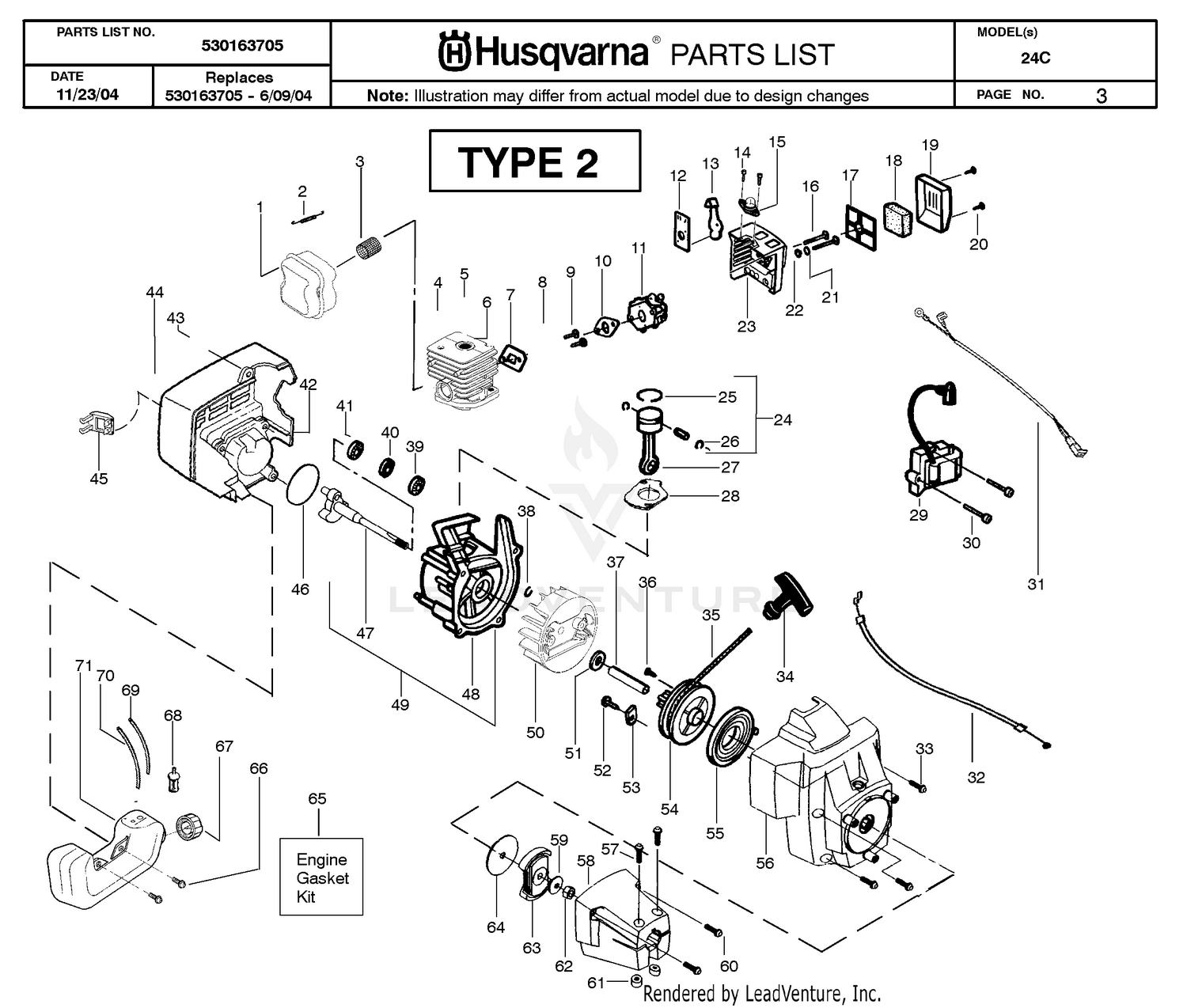

ENGINE 2
Parts (70)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 530071396 | KIT-MUFFLER Price: $12.99 |
| 2 | 530042088 | SPRING-MUFFLER (NEW STYLE) Price: $2.99 |
| 3 | 530071391 | SCREEN Price: $8.99 |
| 4 | 530015953 | SCREW Price: $3.99 |
| 5 | CHAMPION | NEEDS DESCRIPTION Price: Call Us |
| 6 | 530012481 | CYLINDER Price: $19.99 |
| 7 | 530071363 | GASKET KIT Price: $7.99 |
| 8 | 530057635 | ADAPTER Price: $6.99 |
| 9 | 530016014 | SCREW - CARB. ADAPTOR Price: $2.99 |
| 10 | 530071363 | GASKET KIT Price: $7.99 |
| 11 | 530071639 | CARBURETOR Price: $59.99 |
| 12 | 530037326 | CHOKE PLATE Price: $2.99 |
| 13 | 530038102 | CHOKE SHUTTER Price: $2.99 |
| 14 | 530015780 | SCREW 6-19X5/8 PLAS.PAN Price: $2.99 |
| 15 | 530038874 | AIR PURGE BUBBLE Price: $6.99 |
| 16 | 530016393 | SCREW 10-10 X 2.150 TC Price: $3.33 |
| 17 | 530037413 | FILTER PLATE Price: $2.99 |
| 18 | 530037331 | AIR FILTER FOAM Price: $2.99 |
| 19 | 530037292 | AIR FILTER COVER Price: $3.99 |
| 20 | 530016349 | SCREW FILTER PLATE Price: $2.99 |
| 21 | 530015852 | CHOKE SPACER Price: $2.99 |
| 22 | 530015254 | WASHER Price: $2.99 |
| 23 | 530037970 | FILTER HOLDER Price: $2.99 |
| 24 | 530071833 | PISTON KIT Price: $27.99 |
| 25 | 545154001 | RING PISTON This part replaces 530055120. Price: $3.99 |
| 26 | 530015162 | WRIST PIN RET. Price: $2.99 |
| 27 | 530049817 | CONNECTING ROD ASSY This part replaces 530069945. Price: $11.99 |
| 28 | 530071363 | GASKET KIT Price: $7.99 |
| 29 | 530039163 | IGNITION MODULE Price: $37.99 |
| 30 | 530016357 | SCREW Price: $2.99 |
| 31 | 530047278 | LEAD WIRE ASSEMBLY Price: $8.99 |
| 32 | 530056241 | THROTTLE WIRE Price: $8.99 |
| 33 | 530016386 | SCREW This part replaces 530015810. Price: $4.99 |
| 34 | 530027569 | HANDLE-STARTER This part replaces 530036520. Price: $3.99 |
| 35 | 530069232 | KIT-ROPE Price: $4.99 |
| 36 | 530016080 | SCREW Price: $2.99 |
| 37 | 530037414 | SPACER Price: $1.02 |
| 39 | 530055728 | OUTER BEARING Price: $5.99 |
| 40 | 530071615 | KIT-CRANKCASE SEAL Price: $5.99 |
| 41 | 530032125 | BEARING Price: $8.99 |
| 42 | 530057389 | SHROUD HUSQ ORANGE Price: $14.99 |
| 43 | 530015934 | SCREW Price: $2.99 |
| 44 | 530016386 | SCREW This part replaces 530015810. Price: $4.99 |
| 45 | 530054536 | PROTECTOR Price: $2.99 |
| 46 | 530071363 | GASKET KIT Price: $7.99 |
| 47 | 530071625 | KIT ASSY C'CASE/C'SHAFT This part replaces 530052344. Price: $44.99 |
| 48 | 530071627 | KIT ASSY CRANKCASE Price: $22.99 |
| 49 | 530071625 | KIT ASSY C'CASE/C'SHAFT Price: $44.99 |
| 50 | 545221701 | FLYWHEEL ASSY This part replaces 530069886. Price: $24.99 |
| 51 | 530015149 | WASHER Price: $2.99 |
| 52 | 530015775 | SCREW 8-16 X 9/16 (PLAS Price: $2.99 |
| 53 | 530027523 | RETAINER Price: $3.99 |
| 54 | 530071786 | STARTER PULLEY KIT This part replaces 530069400. Price: $9.99 |
| 55 | 545008010 | STARTER SPRING This part replaces 530042085. Price: $7.99 |
| 56 | 530057427 | HOUSING Price: $15.99 |
| 57 | 530015767 | SCREW-10-24 X 1-3/8 (UN Price: $2.99 |
| 58 | 530071697 | ASSY CLUTCH HSG (BLACK) This part replaces 530057426. Price: $44.99 |
| 59 | 530015828 | WASHER FLAT Price: $2.99 |
| 60 | 530015886 | SCREW-10-14 X 13/16 (PL Price: $2.99 |
| 61 | 530015768 | LOCKNUT-HEX 10-24 Price: $3.99 |
| 62 | 530626605 | NUT Price: $4.99 |
| 63 | 530069491 | CLUTCH ASSEMBLY KIT Price: $8.99 |
| 64 | 530015611 | FRICTION DISC,CLUTCH 36/41 Price: $4.99 |
| 65 | 530071363 | GASKET KIT Price: $7.99 |
| 66 | 530016379 | RETAINER Price: $3.99 |
| 67 | 530057390 | CAP Price: $6.99 |
| 68 | 530095646 | FUEL PICK-UP ASSY Price: $5.99 |
| 69 | 530069216 | KIT.LINE TANK/PURGE Price: $9.99 |
| 70 | 530069247 | HOSE. FUEL Price: $6.99 |
| 71 | 530057045 | TANK Price: $19.99 |
