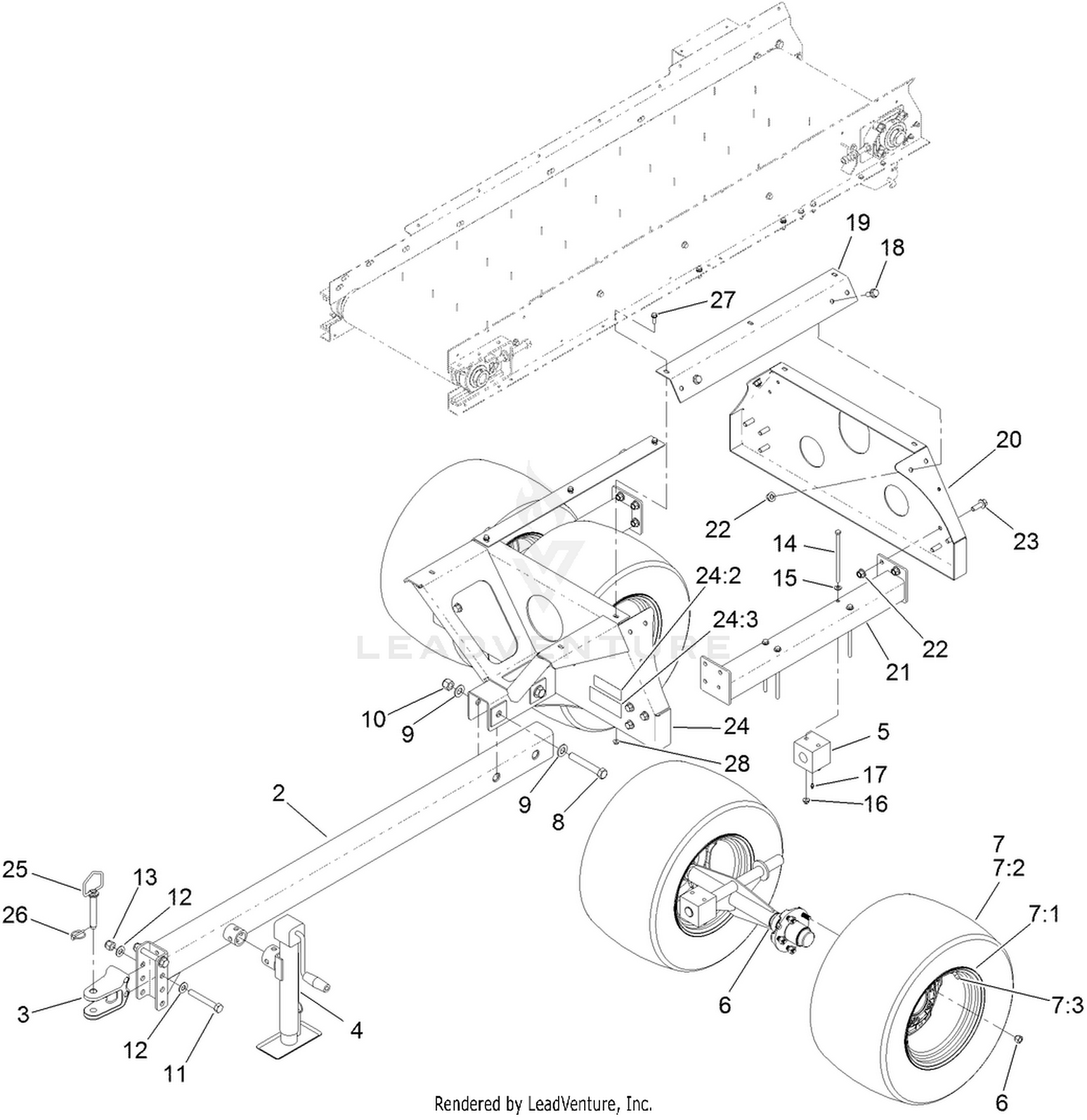

Tow Chassis Assembly
Parts (26)
| Ref | Part Number | Description |
|---|---|---|
| 2 | T36052110-01 | HITCH Price: $854.05 |
| 3 | 131-4381-01 | HITCH-CLEVIS This part replaces 47-3550-01. Price: $161.64 |
| 4 | T0000-3423 | JACK-SIDEWIND Price: $134.35 |
| 5 | T36032010 | BEARING-BEAM, WALKING Price: $103.82 |
| 6 | 119-6930 | WALKING BEAM ASM Price: $570.23 |
| 7 | T68030000 | TIRE AND WHEEL ASM Price: $396.21 |
| 8 | 328-9 | SCREW-HH Price: $16.42 |
| 9 | 3256-28 | WASHER-FLAT Price: $0.48 |
| 10 | 3296-51 | NUT-LOCK, NI Price: $3.23 |
| 11 | 327-23 | SCREW-HH Price: $3.60 |
| 12 | 3256-27 | WASHER-FLAT Price: $0.47 |
| 13 | 3296-53 | NUT-LOCK, NI Price: $1.47 |
| 14 | 323-36 | SCREW-HH Price: $3.05 |
| 15 | 3256-24 | WASHER-FLAT Price: $0.28 |
| 16 | 104-8301 | NUT-HF, NI Price: $1.09 |
| 17 | 302-5 | FITTING-GREASE Price: $0.59 |
| 18 | 3234-38 | SCREW-HHF Price: $3.33 |
| 19 | T36052305-01 | MEMBER-CROSS, TOP Price: $138.01 |
| 20 | T36052300-01 | BRACE-FRAME Price: $840.82 |
| 21 | T36052340-01 | CROSS MEMBER Price: $296.29 |
| 22 | 99-5107 | NUT-LOCK Price: $1.77 |
| 23 | 100-6116 | SCREW-HHF Price: $6.41 |
| 24 | 119-6931 | FRONT BRACE ASM Price: $1,006.53 |
| 25 | T50991348 | PIN-HITCH Price: $32.02 |
| 26 | 92-1298 | PIN-LYNCH Price: $2.27 |
| 27 | 3234-29 | SCREW-HHF Price: $1.84 |
