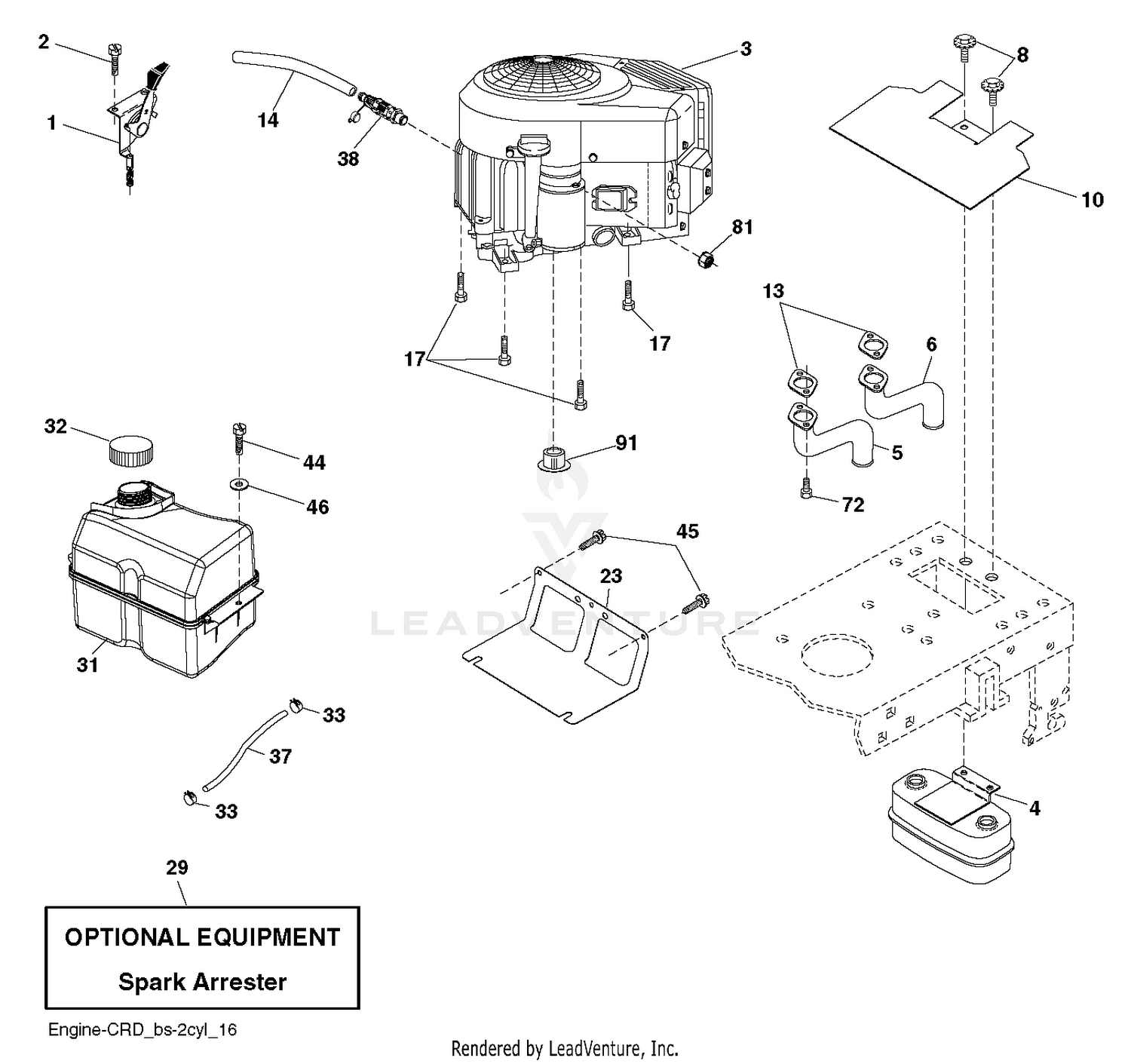

| Ref | Part Number | Description |
|---|
| 1 |
3211-17 |
SCREW-HH Price: Call Us |
| 1 |
532423502 |
CONTROL.TH/CK.COBRA.B&S.TWN.BK Price: $24.99 |
| 2 |
302-11 |
FITTING-LUBE, 45 DEG Price: $1.56 |
| 2 |
596321701 |
Screws This part replaces 532416358. Price: $2.99 |
| 3 |
3253-5 |
WASHER-LOCK Price: $0.29 |
| 4 |
3219-3 |
NUT-HEX Price: $0.34 |
| 4 |
532149723 |
MUFFLER.TWIN.CYL.LOW.TONE Price: $39.99 |
| 5 |
5-1730 |
DISCONTINUED Price: Call Us |
| 5 |
581881101 |
EXHAUST.TUBE.LH.BS/TWIN This part replaces 532159955. Price: $27.99 |
| 6 |
5-1727 |
DISCONTINUED Price: Call Us |
| 6 |
581881001 |
EXHAUST.TUBE.RH.B&S.TWIN.INTEK This part replaces 532160589. Price: $22.99 |
| 7 |
5-1744 |
DISCONTINUED Price: Call Us |
| 8 |
3220-7 |
NUT-JAM Price: $4.09 |
| 8 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK Price: $4.99 |
| 9 |
3254-7 |
WASHER-LOCK, INT Price: $4.82 |
| 10 |
5-1743 |
DISCONTINUED Price: Call Us |
| 10 |
531154901 |
SERVICE KIT HEAT SHIELD This part replaces 532434017. Price: $11.99 |
| 11 |
3272-12 |
PIN-COTTER Price: $0.25 |
| 12 |
5-1752 |
DISCONTINUED Price: Call Us |
| 13 |
287-5 |
DISCONTINUED Price: Call Us |
| 13 |
532165391 |
GASKET.MUFFLER Price: $9.99 |
| 14 |
5-1746 |
DISCONTINUED Price: Call Us |
| 14 |
532148456 |
TUBE, DRAIN OIL ASM. Price: $5.99 |
| 15 |
5-1751 |
DISCONTINUED Price: Call Us |
| 16 |
3257-14 |
KEY Price: $6.19 |
| 17 |
271-10 |
DISCONTINUED Price: Call Us |
| 17 |
817060620 |
SCREW.3/8-16 Price: $5.99 |
| 18 |
3246-3 |
SCREW-HSH Price: $12.70 |
| 19 |
3-4751 |
DISCONTINUED Price: Call Us |
| 20 |
5-1754 |
WASHER-FLAT Price: $2.17 |
| 21 |
236-1 |
DISCONTINUED Price: Call Us |
| 22 |
3256-4 |
WASHER-FLAT Price: $0.28 |
| 23 |
4P-7A |
Bushing Price: Call Us |
| 23 |
531150701 |
SERVICE KIT SHIELD SHIELD.BROW This part replaces 532169837. Price: $19.99 |
| 24 |
59-9740 |
FLEX DRAW LATCH ASM This part replaces 2-4939. Price: $36.89 |
| 25 |
5-1745 |
DISCONTINUED Price: Call Us |
| 26 |
3230-4 |
BOLT-CARR Price: $0.47 |
| 27 |
5-1741 |
DISCONTINUED Price: Call Us |
| 28 |
5-1742 |
DISCONTINUED Price: Call Us |
| 29 |
3254-8 |
WASHER-LOCK Price: $0.37 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 30 |
321-5 |
SCREW-HH Price: $0.22 |
| 31 |
3217-6 |
NUT-HEX Price: $1.19 |
| 31 |
581290101 |
TANK.ASSEMBL.2.5GAL.NON-EPA This part replaces 532407489. Price: $99.99 |
| 32 |
3254-2 |
WASHER-LOCK, INTERNAL Price: $0.27 |
| 32 |
581075501 |
CAP.2.25'.VENTED.RATCHET.EPA This part replaces 532430220. Price: $22.99 |
| 33 |
3-4805 |
DISCONTINUED Price: Call Us |
| 33 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 34 |
3246-2 |
SCREW-SET, HSH Price: $0.54 |
| 35 |
3219-2 |
NUT-HEX Price: $0.37 |
| 36 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 37 |
3210-4 |
SCREW-HH Price: $0.81 |
| 37 |
587044820 |
HOSE 1/4" LOW PERMEATION FUEL This part replaces 532137040. Price: $9.99 |
| 38 |
5-1756 |
DISCONTINUED Price: Call Us |
| 38 |
532428287 |
VALUE.OIL.DRAIN Price: $14.99 |
| 39 |
5-1755 |
DISCONTINUED Price: Call Us |
| 40 |
5-0743-03 |
SPRING-MOWER This part replaces 5-0743. Price: $188.53 |
| 41 |
5-1757 |
DISCONTINUED Price: Call Us |
| 42 |
5-1758 |
DISCONTINUED Price: Call Us |
| 43 |
3258-53 |
Screw Price: Call Us |
| 44 |
3220-1 |
NUT-JAM Price: $0.99 |
| 44 |
817670412 |
SCREW HEXWSHR 1/4-20X3/4 Price: $3.99 |
| 45 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 45 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 46 |
251-165 |
BEARING-BALL Price: $104.65 |
| 46 |
596135301 |
Washers This part replaces 819091416. Price: $2.99 |
| 47 |
251-166 |
BEARING-FLANGE Price: $14.74 |
| 48 |
323-5 |
SCREW-HH Price: $0.41 |
| 49 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 72 |
596134202 |
Screws This part replaces 532183906. Price: $2.99 |
| 81 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
