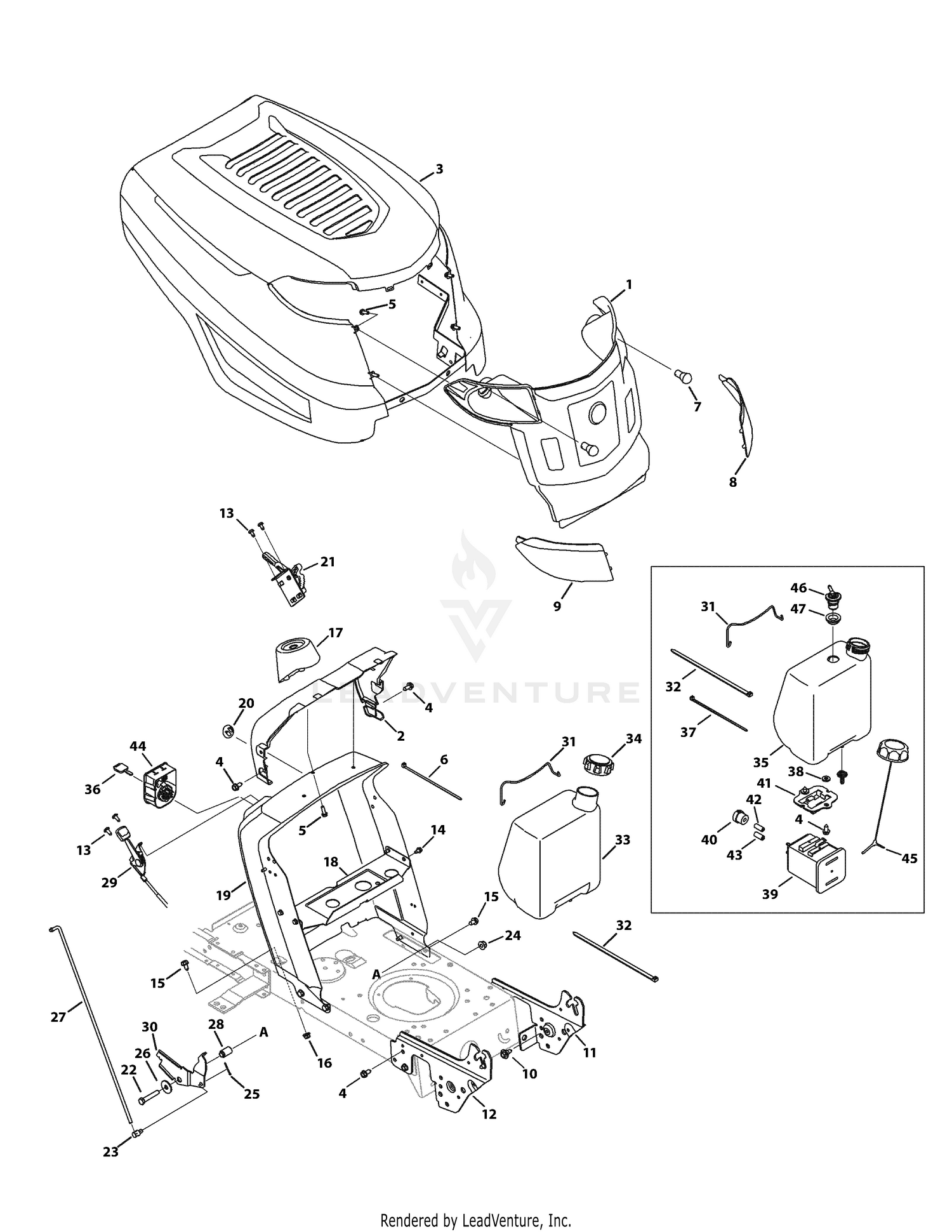

| Ref | Part Number | Description |
|---|
| 1 |
631-04272 |
Grill Assembly, Troy-Bilt Price: $61.79 |
| 2 |
731-05078C |
Dash Assembly Price: $15.85 |
| 3 |
683-04441A-0638 |
Hood Assembly This part replaces 683-04441-0638. Price: $313.46 |
| 4 |
710-04484 |
SCREW 5/16-18 x .750 Price: $3.19 |
| 5 |
710-0895 |
Screw, 1/4-15 x .750 Price: $5.82 |
| 6 |
725-0157 |
Cable Tie Price: $3.46 |
| 7 |
925-0963 |
Lamp Price: $6.73 |
| 8 |
731-06095 |
Left Lens Price: $10.81 |
| 9 |
731-06096 |
Right Lens Price: $10.74 |
| 10 |
738-04091A |
Shoulder Screw, 5/16-18 x .43 x .29 Price: $3.50 |
| 11 |
783-05327B-0637 |
Left Support Pivot Bracket Price: $35.56 |
| 12 |
783-05328B-0637 |
SUPPORT BRACKET (RH) This part replaces 783-05328A-0637. Price: $37.34 |
| 13 |
710-04483 |
SCREW 1/4-20 x .500 Price: $5.97 |
| 14 |
710-0599 |
Hex Washer Screw, 1/4-20 x .500 Price: $3.86 |
| 15 |
710-0604A |
Screw, 5/16-18 x .625 Price: $3.96 |
| 16 |
712-04063 |
Flangelock Nut, 5/16-18 Price: $3.56 |
| 17 |
731-04945 |
Steering Support Price: $16.22 |
| 18 |
783-04584B-0637 |
FUEL TANK SUPPORT BRACKET This part replaces 783-04584A-0637. Price: $16.77 |
| 19 |
783-04873B-0637 |
Dash, No RMC This part replaces 783-04873A-0638. Price: $188.14 |
| 20 |
731-05265 |
Choke Plug Price: $5.01 |
| 22 |
710-3144 |
Hex Screw, 3/8-16 x 2.0 Price: $4.02 |
| 23 |
711-0736 |
ADJUSTMENT FERRULE 1/4-20 x 1.00 Not Available Price: |
| 24 |
710-04065 |
Flangelock Nut, 3/8-16 Price: $5.48 |
| 25 |
714-0111 |
Cotter Pin This part replaces 914-0111. Price: $4.20 |
| 26 |
736-0133 |
Washer, Flat, .411 x 1.25 x .100 This part replaces 936-0133. Price: $4.67 |
| 27 |
747-04430 |
Speed Selector Price: $19.25 |
| 28 |
750-04465B |
Flange Spacer, .390 x .671 x 1.095 This part replaces 750-04465. Price: $3.64 |
| 29 |
746-04364 |
Throttle/Choke Cable Price: $42.43 |
| 30 |
783-04903 |
SPEED LATCH BRACKET Not Available Price: |
| 31 |
747-04744A |
BATTERY ROD ASSEMBLY This part replaces 683-04448-0637. Price: $9.09 |
| 32 |
726-0230 |
Cable Tie Price: $23.95 |
| 34 |
751-0603B |
TANK CAP This part replaces 751-0603A. Price: $20.42 |
| 36 |
925-1745A |
Key Price: $15.91 |
| 37 |
725-0157 |
Cable Tie Price: $3.46 |
| 38 |
936-3008 |
Flat Washer, .344 x .750 x .120 Price: $6.24 |
| 39 |
951-10589 |
CARBON CANISTER Not Available Price: |
| 40 |
951-10590 |
Vent Filter Canister Price: $13.59 |
| 41 |
951-10610 |
CARBON CANISTER ADAPTER BRACKET Not Available Price: |
| 42 |
751-10749-30 |
Fuel Hose, White Price: $31.87 |
| 43 |
751-10750A-28 |
FUEL HOSE LO PERMEATION 28" This part replaces 751-10750-28. Price: $30.56 |
| 45 |
951-12426B |
Fuel Cap This part replaces 951-10947. Price: $36.44 |
| 46 |
751-12118 |
ROLLOVER FUEL VALVE This part replaces 751-10441. Price: $31.61 |
| 47 |
735-04081 |
Rubber Grommet, 23 x 3.55 Price: $3.96 |
