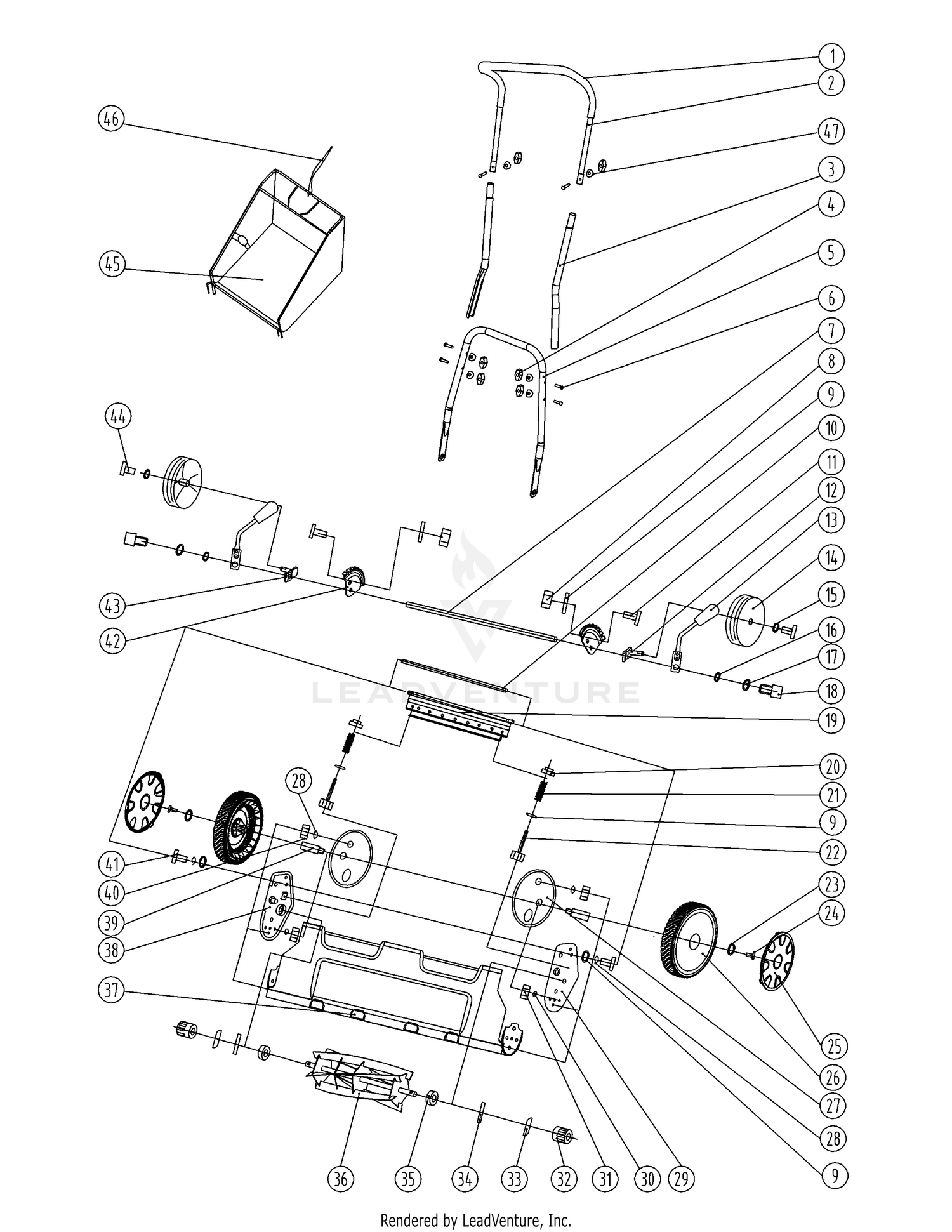

General Assembly
Parts (40)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 720-04167 | GRIP Price: $8.70 |
| 2 | 749-04811 | UPPER HANDLE Price: $24.33 |
| 3 | 749-04812 | MIDDLE HANDLE Price: $16.19 |
| 4 | 720-04168 | KNOB-RED Price: $3.86 |
| 6 | 710-05321 | BOLT Price: $3.63 |
| 8 | 712-04292 | NUT Price: $3.28 |
| 9 | 736-04563 | WASHER Price: $3.49 |
| 11 | 710-05322 | SCREW Price: $3.49 |
| 12 | 787-01959 | REAR BRACKET (LH) Price: $16.75 |
| 13 | 787-02084-0637 | HANDLE ADJUSTMENT (LH) (POWDER BLACK) Not Available This part replaces 787-02087. Price: |
| 13 | 787-02085-0637 | HANDLE ADJUSTMENT (RH) (POWDER BLACK) Not Available This part replaces 787-02086. Price: |
| 14 | 734-04605 | REAR WHEEL Price: $21.55 |
| 15 | 736-04564 | WASHER Price: $3.49 |
| 16 | 736-04565 | WASHER Price: $3.24 |
| 17 | 736-04566 | WASHER Price: $3.21 |
| 18 | 710-05323 | BOLT Price: $3.24 |
| 20 | 712-04293 | NUT Price: $3.75 |
| 21 | 731-04854 | SPACER Price: $3.34 |
| 22 | 710-05324 | BOLT-M8 x 1.65 Price: $3.70 |
| 23 | 736-04567 | WASHER Price: $3.24 |
| 24 | 710-05325 | BOLT Price: $3.49 |
| 25 | 731-08253 | HUBCAP Price: $7.20 |
| 26 | 734-04606 | COMPLETE WHEEL Price: $35.26 |
| 27 | 787-01968 | BRACKET Price: $17.48 |
| 28 | 736-04568 | WASHER Price: $3.13 |
| 29 | 787-01972 | SUPPORT BRACKET (LH) Price: $24.63 |
| 30 | 736-04569 | WASHER Price: $3.13 |
| 31 | 712-04294 | NUT Price: $3.24 |
| 32 | 917-04917 | GEAR-41MM This part replaces 717-04917. Price: $8.34 |
| 33 | 787-01976 | SUPPORT Price: $3.82 |
| 34 | 736-04570 | WASHER Not Available Price: |
| 35 | 741-04514 | BEARING Price: $5.32 |
| 38 | 787-01981 | SUPPORT BRACKET (RH) Price: $24.63 |
| 39 | 711-05536 | WHEEL AXLE Price: $7.71 |
| 40 | 712-04295 | NUT Price: $3.14 |
| 41 | 710-05326 | BOLT Price: $3.24 |
| 42 | 787-01985 | ADJUST BRACKET (RH) Price: $6.07 |
| 42 | 787-01994 | ADJUSTMENT BRACKET 9T (LH) Price: $6.07 |
| 43 | 787-01987 | REAR BRACKET (RH) Price: $15.20 |
| 44 | 710-05327 | BOLT Price: $3.49 |
