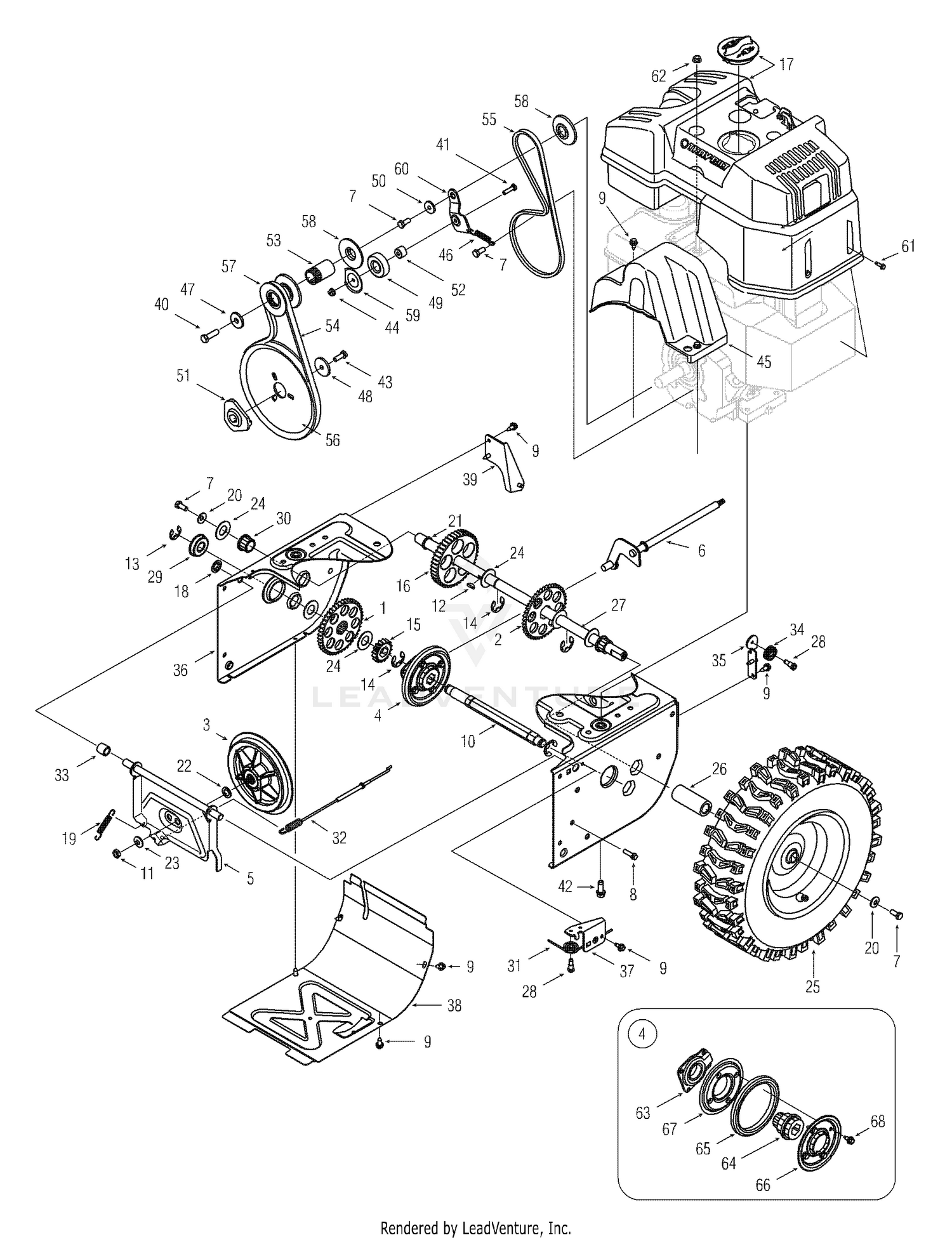

| Ref | Part Number | Description |
|---|
| 1 |
917-04026A |
Gear Assembly, 16/44T This part replaces 617-04026. Price: $109.78 |
| 2 |
917-04025A |
Gear Assembly, 16/44T Not Available This part replaces 617-04025. Price: |
| 3 |
656-04024 |
FRICTION WHEEL DISC ASSEMBLY Not Available Price: |
| 4 |
984-04066 |
FRICTION WHEEL ASSEMBLY 4.9 OD Not Available This part replaces 684-04066. Price: |
| 5 |
684-04045-0637 |
BRACKET ASSEMBLY (POWDER BLACK) Not Available Price: |
| 6 |
684-04139 |
SHIFT ROD ASSEMBLY Not Available Price: |
| 7 |
710-0627 |
Screw, 5/16-24 x .7 50, Gr5 Price: $3.68 |
| 8 |
710-0788 |
Screw, 1/4-20x 1.000 Price: $6.20 |
| 9 |
710-1652 |
Screw, 1/4-20x .625 Price: $3.86 |
| 10 |
753-05173A |
DRIVE WHEEL SERVICE KIT Not Available This part replaces 711-04246A. Price: |
| 11 |
712-0711 |
Nut, Jam, 3/8-24, Gr2 Price: $3.90 |
| 12 |
914-0161 |
KEY 3/16 x 5/8 H This part replaces 714-0161. Price: $3.82 |
| 13 |
716-0231 |
Ring, E Type, .750 Price: $3.50 |
| 14 |
716-0136 |
Ring, E-Type, .875 Price: $7.56 |
| 15 |
717-04129A |
Pinion, 16T Price: $25.03 |
| 16 |
717-04137A |
GEAR-44 T AXLE SHAFT SNWTH NLAUD Not Available Price: |
| 17 |
984-04014A |
SHROUD-W/DECALS Not Available This part replaces 684-04014A. Price: |
| 18 |
726-0221 |
Nut, Speed, .500 Price: $5.34 |
| 19 |
932-0264 |
Extension Spring This part replaces 732-0264. Price: $4.40 |
| 20 |
736-0242 |
Washer, Bell, .340 x .872 x .060 Price: $3.75 |
| 21 |
736-04161 |
Washer, Flat, .75 x 1.00 x .060 Price: $6.01 |
| 22 |
736-0300 |
Washer, Flat, .406 x .875 x .059 Price: $3.93 |
| 23 |
736-0105 |
Washer, Bell, .375 x .870 x .063 Price: $3.96 |
| 24 |
736-0287 |
Washer, Flat, .793 x 1.24 x .060 Price: $3.93 |
| 25 |
634-04147A |
Wheel, Complete, 15 x 5 x 6, LH Price: $170.15 |
| 25 |
634-04148A |
Wheel, Complete, 15 x 5 x 6, RH Price: $166.08 |
| 26 |
731-04873 |
Spacer, 1.25 OD x .75 ID x 3.00 Price: $8.93 |
| 27 |
738-04095A |
Axle, .75 x 22 Price: $122.19 |
| 28 |
738-0924A |
Shoulder Screw, 1/4-28, .340 x .355 This part replaces 738-0924. Price: $5.94 |
| 29 |
941-0563 |
Ball Bearing, 17 x 40 x 12 This part replaces 741-0563. Price: $33.84 |
| 30 |
941-0245 |
Hex Flange Bearing, .75 ID This part replaces 741-0245. Price: $9.07 |
| 31 |
946-0897 |
Auger Cable This part replaces 746-0897. Price: $23.09 |
| 32 |
946-04086 |
Drive Clutch Cable 41.75" Lg. This part replaces 746-04086. Price: $35.65 |
| 33 |
748-0190 |
Spacer, .508 ID x .75 OD x .68 Price: $5.48 |
| 34 |
756-0625 |
Roller, Cable Price: $8.52 |
| 35 |
784-5687A |
AUGER GUIDE BRACKET Not Available Price: |
| 36 |
790-00072-0638 |
DRIVE FRAME HOUSING (MTD RED) Not Available Price: |
| 37 |
790-00096-0637 |
Guide Bracket, Front, Auger Cable Price: $8.20 |
| 38 |
790-00054-0691 |
FRAME COVER Not Available This part replaces 790-00054-0638. Price: |
| 39 |
790-00055-0637 |
DRIVE CABLE BRACKET Not Available Price: |
| 40 |
710-0191 |
Screw, 3/8-24x 1.25, Gr8 Price: $4.02 |
| 41 |
710-0597 |
SCREW 1/4-20 X1.00 GR5 Price: $3.66 |
| 42 |
710-0654A |
Screw, Sems, 3/8-16 x 1.00 Price: $3.75 |
| 43 |
710-1245B |
Screw, 5/16-24 x .875, Gr8 Price: $7.21 |
| 44 |
712-04064 |
Nut, Flange Lock, Nylon, 1/4-20, Gr F Price: $3.64 |
| 45 |
631-05321 |
BELT COVER (SMALL BLOCK) This part replaces 731-04792. Price: $21.88 |
| 46 |
932-0710 |
Extension Spring This part replaces 732-0710. Price: $6.92 |
| 47 |
736-0247 |
Washer, Flat, .406 x 1.25 x.157 Price: $8.82 |
| 48 |
736-0505 |
Washer, Flat, .34 x 1.50 x .1 50 Price: $5.65 |
| 49 |
741P0919B |
BALL BEARING This part replaces 741-0919. Price: $18.90 |
| 50 |
748-0234 |
Shoulder Spacer Price: $3.86 |
| 51 |
748-04053A |
Adapter Pulley, .75 Dia. This part replaces 748-04053. Price: $19.41 |
| 52 |
750-04230A |
SPACER Not Available This part replaces 750-04230. Price: |
| 53 |
750-04303 |
Spacer, .875 ID x 1.185 OD Price: $15.09 |
| 54 |
954-04050A |
Auger Drive Belt This part replaces 754-04050. Price: $25.43 |
| 55 |
954-0456 |
V-Belt This part replaces 754-0456. Price: $25.72 |
| 56 |
756-04109 |
Pulley, Auger, 8.1 x .50 Price: $47.55 |
| 57 |
756-06563 |
HALF PULLEY A2.76 x 1.140 SPLINE This part replaces 756-04113. Price: $3.40 |
| 58 |
756-04114 |
Pulley, Half, 2.2 OD Price: $11.71 |
| 59 |
990-00062 |
WASHER-BRG 2.12 OD x .255ID Not Available This part replaces 790-00062. Price: |
| 60 |
790-00082-0637 |
DRIVE IDLER BRACKET Not Available Price: |
| 61 |
710-04082 |
HEX SCREW DRILLING#10-16 X.75 Not Available Price: |
| 62 |
712-3004A |
HEX FLANGE NUT Price: $3.49 |
| 63 |
618-04169 |
Bearing Assembly , Friction Wheel Price: Call Us |
| 64 |
718-04070 |
Hub, Friction Wheel Price: Call Us |
| 65 |
935-0243B |
Friction Wheel Rubber This part replaces 735-0243B. Price: $14.83 |
| 66 |
790-00010 |
Plate, Friction, 12 Pt 4.60 Dia Not Available Price: |
| 67 |
790-00011 |
FRICTION PLATE Not Available Price: |
| 68 |
710-0896 |
Screw, Self-tapping, 1/4-14 x 0.625 Price: $3.86 |
