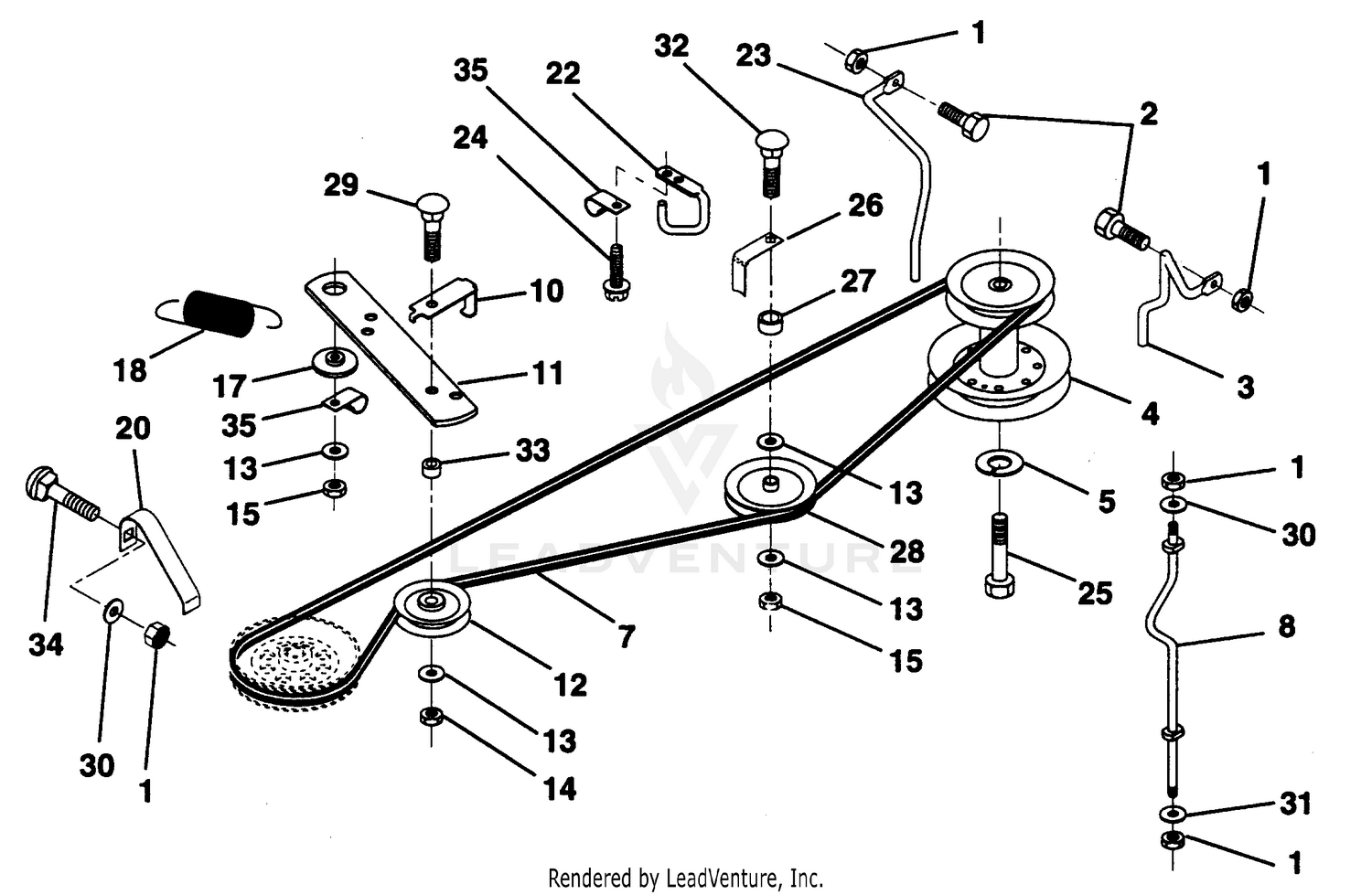

| Ref | Part Number | Description |
|---|
| 1 |
873800500 |
Nut, Lock Hx w/Ins 5/16-18 (AYP part number) Price: $2.99 |
| 2 |
539976934 |
HCS 5/16C X 3/4 This part replaces 874760512. Price: $1.99 |
| 3 |
108-4213 |
BRACKET-HOC, GROOMER (LH) Price: $103.51 |
| 3 |
532140917 |
Keeper, Belt RH Front Price: $4.99 |
| 4 |
108-4214 |
BRACKET-HOC, GROOMER (RH) Price: $103.51 |
| 4 |
532138029 |
Pulley, Engine (AYP part number) Price: $49.99 |
| 5 |
106-3925 |
SHIM-ROLLER (0.25) Price: $5.22 |
| 5 |
539990247 |
WASHER 7/16 LOCK This part replaces 810040700. Price: $1.99 |
| 6 |
106-9758 |
SCREW-CARR Price: $2.99 |
| 7 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 7 |
532140910 |
V-Belt (AYP part number) Price: $49.99 |
| 8 |
112-7451 |
SCREW-TAP Price: $2.17 |
| 8 |
532140785 |
Keeper, Belt RH (AYP part number) Price: $5.91 |
| 9 |
48-9220 |
WASHER-PLAIN Price: $0.87 |
| 10 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 10 |
532140780 |
Keeper, Belt, Idler Pulley (AYP part number) Price: $2.42 |
| 11 |
322-16 |
SCREW-HH Price: $3.39 |
| 11 |
532140911 |
Arm, Idler (AYP part number) Price: $4.35 |
| 12 |
532123674 |
Idler, Flat (AYP part number) Price: $17.99 |
| 13 |
819131316 |
Washer 13/32 x 13/16 x 16 Gauge (AYP part number) Price: $2.99 |
| 14 |
873680600 |
LOCKNUT This part replaces 873930600. Price: $1.99 |
| 15 |
873680600 |
Nut, Hex, Lock Hex w/wsh 3/8-16 Price: $1.99 |
| 17 |
532165723 |
SPACER.RETAINER.MOWER This part replaces 532122052. Price: $2.99 |
| 18 |
532131459 |
Spring, Extension (AYP part number) Price: $4.99 |
| 20 |
532140909 |
Keeper, Belt LH (AYP part number) Price: $2.99 |
| 22 |
532123404 |
Keeper Frame Ground Drive Belt (AYP part number) Price: $3.22 |
| 23 |
532142240 |
Keeper, Belt LH Front (AYP part number) Price: $4.28 |
| 24 |
539990071 |
HCS 1/4-20. This part replaces 817720408. Price: $1.99 |
| 25 |
871170744 |
Bolt, Hex 7/16-20 (AYP part number) Price: $2.99 |
| 26 |
532140913 |
Keeper, Belt (AYP part number) Price: $5.99 |
| 27 |
532140914 |
Spacer (AYP part number) Price: $3.99 |
| 28 |
532139123 |
Pulley, V-Idler (AYP part number) Price: $22.99 |
| 29 |
872110618 |
BOLT CARRIAGE This part replaces 872140618. Price: $2.99 |
| 30 |
734116301 |
WASHER - 15X7.3X1.6 This part replaces 819111116. Price: $2.99 |
| 31 |
734116301 |
WASHER - 15X7.3X1.6 This part replaces 819111216. Price: $2.99 |
| 32 |
872140620 |
Carriage Bolt (AYP part number) Price: $3.99 |
| 33 |
532000160 |
Spacer (AYP part number) Price: $4.86 |
| 34 |
539990316 |
BOLT 5/16C X 3/4" CARRIAGE This part replaces 872140506. Price: $1.99 |
