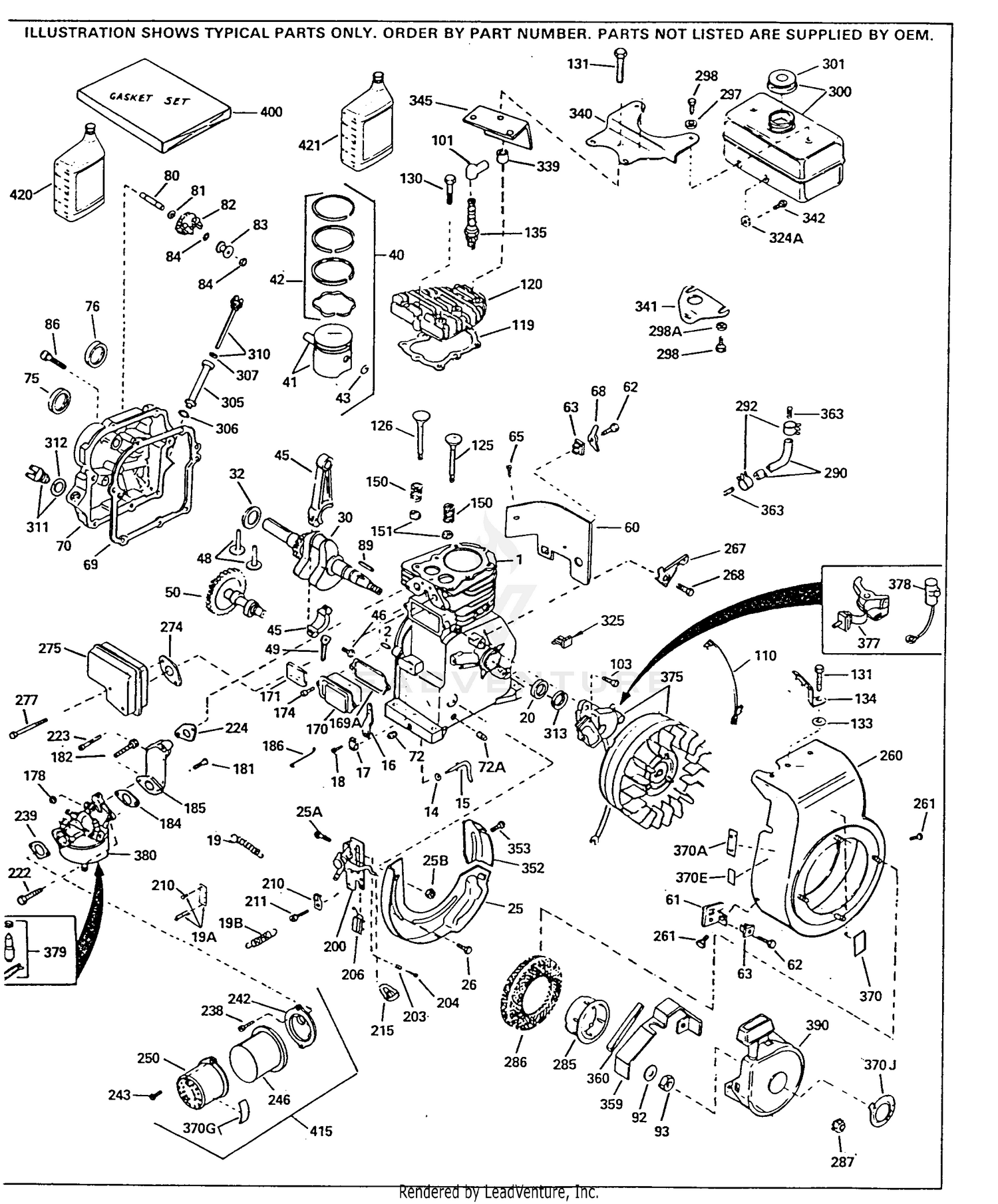

| Ref | Part Number | Description |
|---|
| 1 |
36561 |
CYLINDER This part replaces 33014C. Price: Call Us |
| 2 |
26727 |
DOWEL PIN Price: $1.26 |
| 14 |
28277 |
WASHER Price: $1.26 |
| 15 |
31334 |
GOVERNOR ROD Price: $3.89 |
| 16 |
33302 |
GOV LEVER Price: $1.23 |
| 17 |
29916 |
CLAMP Price: $1.26 |
| 18 |
651018 |
SCREW This part replaces 650548. Price: $1.18 |
| 19 |
31426 |
EXT SPRING Price: $2.80 |
| 19A |
33857 |
SPRING & BRKT Price: $5.21 |
| 20 |
32600 |
OIL SEAL Price: $4.80 |
| 25 |
36552 |
BAFFLE This part replaces 33342. Price: $6.54 |
| 25A |
650139 |
SCREW Price: $1.25 |
| 25B |
30322 |
NUT Price: $1.22 |
| 26 |
650561 |
SCREW Price: $1.25 |
| 30 |
32877A |
CRANKSHAFT Price: $105.18 |
| 32 |
32323 |
WASHER Price: $5.80 |
| 40 |
35544A |
PISTON ASSY STD This part replaces 34851. Price: $43.10 |
| 40 |
35545A |
PISTON ASSY 010 This part replaces 34852. Price: Call Us |
| 40 |
35546 |
PISTON ASSY 020 This part replaces 34853. Price: $52.46 |
| 41 |
35544A |
PISTON ASSY STD This part replaces 32603B. Price: $43.10 |
| 41 |
35545A |
PISTON ASSY 010 This part replaces 32604B. Price: Call Us |
| 41 |
35546 |
PISTON ASSY 020 This part replaces 32605B. Price: $52.46 |
| 42 |
34854 |
RING SET STD Price: Call Us |
| 42 |
34855 |
RING SET 010-NLA Price: Call Us |
| 42 |
34856 |
RING SET 020-NLA Price: Call Us |
| 43 |
20381 |
RET RING Price: $1.26 |
| 45 |
32875A |
CONN ROD This part replaces 32875. Price: $33.84 |
| 46 |
32610A |
SCREW Price: $1.26 |
| 48 |
27241 |
VALVE LIFTER Price: $3.89 |
| 49 |
32654 |
OIL DIPPER Price: $6.40 |
| 50 |
37040 |
CAMSHAFT This part replaces 33158. Price: $21.67 |
| 60 |
29745 |
EXTENSION Price: $2.62 |
| 62 |
650760 |
SCREW Price: $1.17 |
| 63 |
28545 |
GROMMET Price: $1.26 |
| 65 |
650128 |
SCREW Price: $3.60 |
| 68 |
33356 |
TERMINAL Price: $1.26 |
| 69 |
27677A |
GASKET Price: $5.31 |
| 70 |
32700B |
CYL COVER This part replaces 32700A. Price: $80.28 |
| 72 |
27642 |
PIPE PLUG Price: $1.26 |
| 72A |
28582 |
DRAIN PLUG Price: $1.22 |
| 75 |
27897 |
OIL SEAL Price: $5.95 |
| 80 |
30574A |
GOV SHAFT This part replaces 30574. Price: $5.00 |
| 81 |
651080 |
WASHER This part replaces 30590A. Price: $1.24 |
| 82 |
30591 |
GEAR Price: $9.93 |
| 83 |
30588A |
GOV SPOOL Price: $1.26 |
| 84 |
29193 |
RET RING Price: $1.26 |
| 86 |
650451 |
SCREW Price: $1.25 |
| 89 |
610951 |
KEY Price: $1.17 |
| 92 |
650815 |
WASHER Price: $1.25 |
| 93 |
650607 |
NUT Price: $1.20 |
| 101 |
610118 |
PLUG COVER This part replaces 27276. Price: $4.45 |
| 103 |
650489 |
SCREW Price: Call Us |
| 110 |
35349 |
GROUND WIRE Price: $3.20 |
| 119 |
33015A |
GASKET Price: $7.89 |
| 120 |
37675 |
CYL HEAD This part replaces 33016A. Price: $29.58 |
| 125 |
29313C |
EXH VALVE STD Price: $6.23 |
| 125 |
29315C |
EX/INT VALVE OS Price: Call Us |
| 126 |
32644A |
INT VALVE ST Price: $6.91 |
| 126 |
32645A |
INT VALVE OS Price: $43.82 |
| 130 |
6021A |
SCREW Price: $1.26 |
| 131 |
650694A |
SCREW Price: $2.15 |
| 133 |
650890 |
WASHER Price: $1.25 |
| 134 |
30747 |
STOP LEVER Price: $4.95 |
| 135 |
33636 |
SPARK PLUG Price: $5.05 |
| 150 |
31672 |
VALVE SPRING Price: $1.26 |
| 151 |
31673 |
VALVE CAP Price: $1.23 |
| 169A |
31619A |
GASKET Price: $5.19 |
| 170 |
31337B |
BREATHER This part replaces 31337A. Price: $13.55 |
| 171 |
31410 |
ELEMENT Price: $1.19 |
| 174 |
650128 |
SCREW Price: $3.60 |
| 184 |
26756 |
Gasket Price: $2.95 |
| 185 |
33301 |
INTAKE PIPE Price: Call Us |
| 186 |
32855 |
LINK Price: Call Us |
| 186 |
37735 |
LINK & LEVER This part replaces 31858. Price: $9.95 |
| 200 |
730136A |
CONTROL ASSY Price: $23.80 |
| 203 |
31342 |
COMP SPRING Price: $3.95 |
| 204 |
651029 |
SCREW This part replaces 650549. Price: $1.22 |
| 206 |
610973 |
TERMINAL Price: $2.60 |
| 222 |
650517 |
SCREW Price: $1.25 |
| 223 |
30646 |
SCREW Price: $6.40 |
| 224 |
32649A |
GASKET Price: $2.20 |
| 238 |
651081 |
SCREW This part replaces 28820. Price: $2.89 |
| 239 |
27272A |
GASKET Price: $1.18 |
| 242 |
31691 |
BRACKET Price: $15.95 |
| 243 |
650152 |
SCREW Price: $1.60 |
| 250 |
31715 |
CLEANER BODY Price: $15.02 |
| 260 |
33663E |
BLOWER HSG This part replaces 33663C. Price: Call Us |
| 261 |
29716 |
SCREW This part replaces 29212. Price: $0.91 |
| 274 |
33170A |
GASKET Price: Call Us |
| 277 |
650327A |
SCREW This part replaces 650327. Price: $1.25 |
| 277 |
650561 |
SCREW Price: $1.25 |
| 277 |
650774 |
SCREW Price: $1.25 |
| 277 |
650795 |
SCREW Price: $1.25 |
| 285 |
33667 |
STARTER CUP Price: Call Us |
| 286 |
33668 |
SCREEN Price: $5.21 |
| 287 |
29752 |
NUT Price: $1.26 |
| 290 |
29774 |
FUEL LINE Price: $2.78 |
| 290 |
30705 |
FUEL LINE Price: $11.47 |
| 290 |
30962 |
FUEL LINE Price: $22.04 |
| 292 |
26460 |
CLAMP Price: $1.19 |
| 301 |
33032 |
FUEL CAP This part replaces 410144B. Price: $5.31 |
| 301 |
34210 |
FUEL CAP Price: $5.77 |
| 301 |
37845 |
FUEL CAP This part replaces 35355. Price: $6.33 |
| 305 |
30786 |
FILLER TUBE Price: Call Us |
| 306 |
29673 |
GASKET Price: $1.26 |
| 307 |
29985 |
O RING Price: $1.26 |
| 310 |
33336 |
DIPSTICK Price: Call Us |
| 311 |
27625 |
FILLER PLUG Price: $1.65 |
| 312 |
29673 |
GASKET Price: $1.26 |
| 313 |
33876 |
GASKET Price: $3.59 |
| 325 |
29443 |
CLIP Price: $1.26 |
| 342 |
30063 |
SCREW Price: $1.26 |
| 342 |
650561 |
SCREW Price: $1.25 |
| 342 |
650751 |
SCREW Price: $1.25 |
| 352 |
35883 |
EXTENSION Price: $1.26 |
| 353 |
650926 |
SCREW This part replaces 650884. Price: $0.88 |
| 370 |
550223 |
DECAL--Discontinued Price: Call Us |
| 370G |
31752 |
DECAL Price: Call Us |
| 375 |
610942A |
MAGNETO Price: Call Us |
| 377 |
30547A |
BREAKER SET Price: $12.55 |
| 378 |
30548B |
CONDENSER Price: $8.40 |
| 379 |
631021B |
INLET NEEDLE KIT This part replaces 631021. Price: $4.82 |
| 380 |
631795A |
SERVICE CARB This part replaces 631667. Price: $78.81 |
| 390 |
590420A |
STARTER This part replaces 590420. Price: $42.85 |
| 400 |
33240B |
GASKET SET Price: $24.95 |
| 415 |
730127 |
AIR CLEANER Price: $33.14 |
| 420 |
730225A |
OIL SAE 30 This part replaces 730225. Price: $3.38 |
