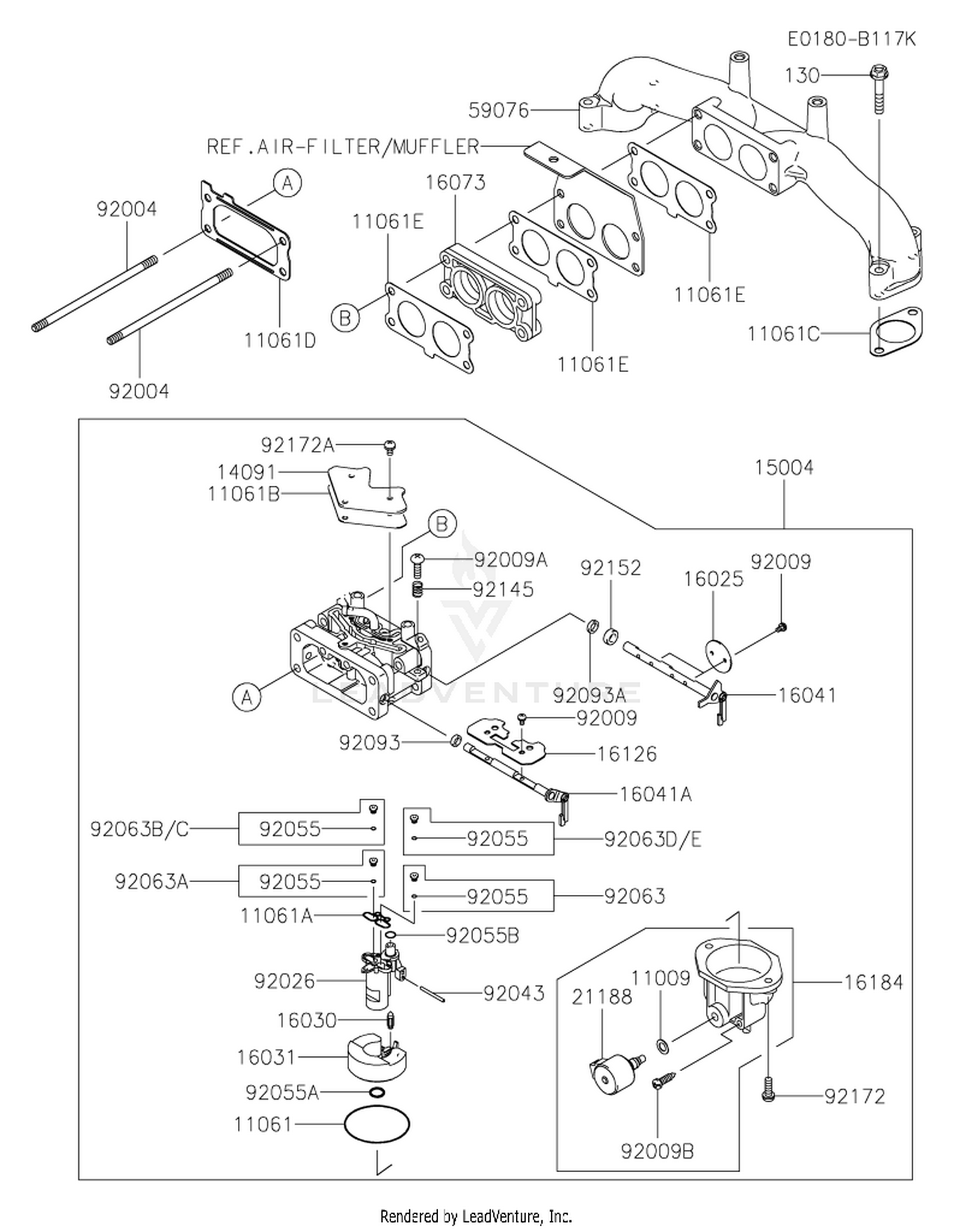

FX801V-ES15 CARBURETOR
Parts (40)
| Ref | Part Number | Description |
|---|---|---|
| 11009 | KM-11009-2056 | GASKET-SOLENOID Price: $2.49 |
| 11061 | KM-11061-1286 | FLOAT CHAMBER GASKET Price: $2.28 |
| 11061A | KM-11061-7037 | GASKET-FLOAT SPACE Price: $7.63 |
| 11061B | KM-11061-7039 | GASKET-COVER PLATE Price: $4.79 |
| 11061C | KM-11061-7070 | GASKET-HEAD/MANIFOLD Price: $2.10 |
| 11061D | KM-11061-7091 | GASKET,CARBURETOR/PIPE Price: $2.31 |
| 11061E | KM-11061-7092 | GASKET-INSULATOR Price: $2.31 |
| 14091 | KM-14091-7031 | PLATE-CARB COVER Price: $13.54 |
| 15004 | KM-15004-1082 | CARBURETOR Price: $593.00 |
| 16025 | KM-16025-7010 | THROTTLE VALVE Price: $22.49 |
| 16030 | KM-16030-7004 | FLOAT VALVE Price: $33.63 |
| 16031 | KM-16031-7003 | FLOAT-CHARBURETOR Price: $51.74 |
| 16041 | KM-16041-0038 | CARBURETOR THROTTLE SHAFT Price: $52.93 |
| 16041A | KM-16041-0041 | CARBURETOR CHOKE SHAFT Price: $38.19 |
| 16073 | KM-16073-0997 | INSULATOR This part replaces KM-16073-7011. Price: $8.93 |
| 16126 | KM-16126-7021 | VALVE Price: $13.15 |
| 16184 | KM-16184-7023 | CHAMBER-ASSEMBLY FLOAT Price: $192.17 |
| 21188 | KM-21188-7003 | SOLENOID-CARBURETO Price: $189.04 |
| 59076 | KM-59076-7013 | INTAKE MANIFOLD Price: $141.54 |
| 92004 | KM-172BA06120 | Bolt-Stud, 6x120 This part replaces KM-92004-7028. Price: $3.59 |
| 92009 | KM-92009-7003 | SCREW Price: $2.55 |
| 92009A | KM-92009-7004 | SCREW Price: $2.22 |
| 92009B | KM-92009-7006 | SCREW-DRAIN Price: $2.46 |
| 92026 | KM-92026-7024 | SPACER Price: $7.88 |
| 92043 | KM-92043-7016 | PIN-FLOAT Price: $1.82 |
| 92055 | KM-92055-7013 | O-RING Price: $2.49 |
| 92055A | KM-92055-7016 | O-RING Price: $2.46 |
| 92055B | KM-92055-7024 | O-RING Price: $2.42 |
| 92063 | KM-92063-7106 | MAIN JET # 124 Price: $22.98 |
| 92063A | KM-92063-7110 | MAIN JET-#118 Price: $18.29 |
| 92063B | KM-92063-7135 | MAIN JET #115 Price: $18.29 |
| 92063C | KM-92063-7136 | MAIN JET #112 Price: $18.29 |
| 92063D | KM-92063-7137 | MAIN JET #117 Price: $18.29 |
| 92063E | KM-92063-7138 | MAIN JET #114 Price: $18.29 |
| 92093 | KM-92093-0720 | CHOKE SHAFT SEAL Price: $1.58 |
| 92093A | KM-92093-7002 | THROTTLE SHAFT SEAL Price: $1.79 |
| 92145 | KM-92145-7010 | SPRING Price: $2.22 |
| 92152 | KM-92152-7005 | COLLAR-THROT SHAFT Price: $9.96 |
| 92172 | KM-92172-7005 | FLOAT SCREW CHAMBE Price: $2.55 |
| 92172A | KM-92172-7006 | SCREW-CARB CVR PLA Price: $2.29 |
