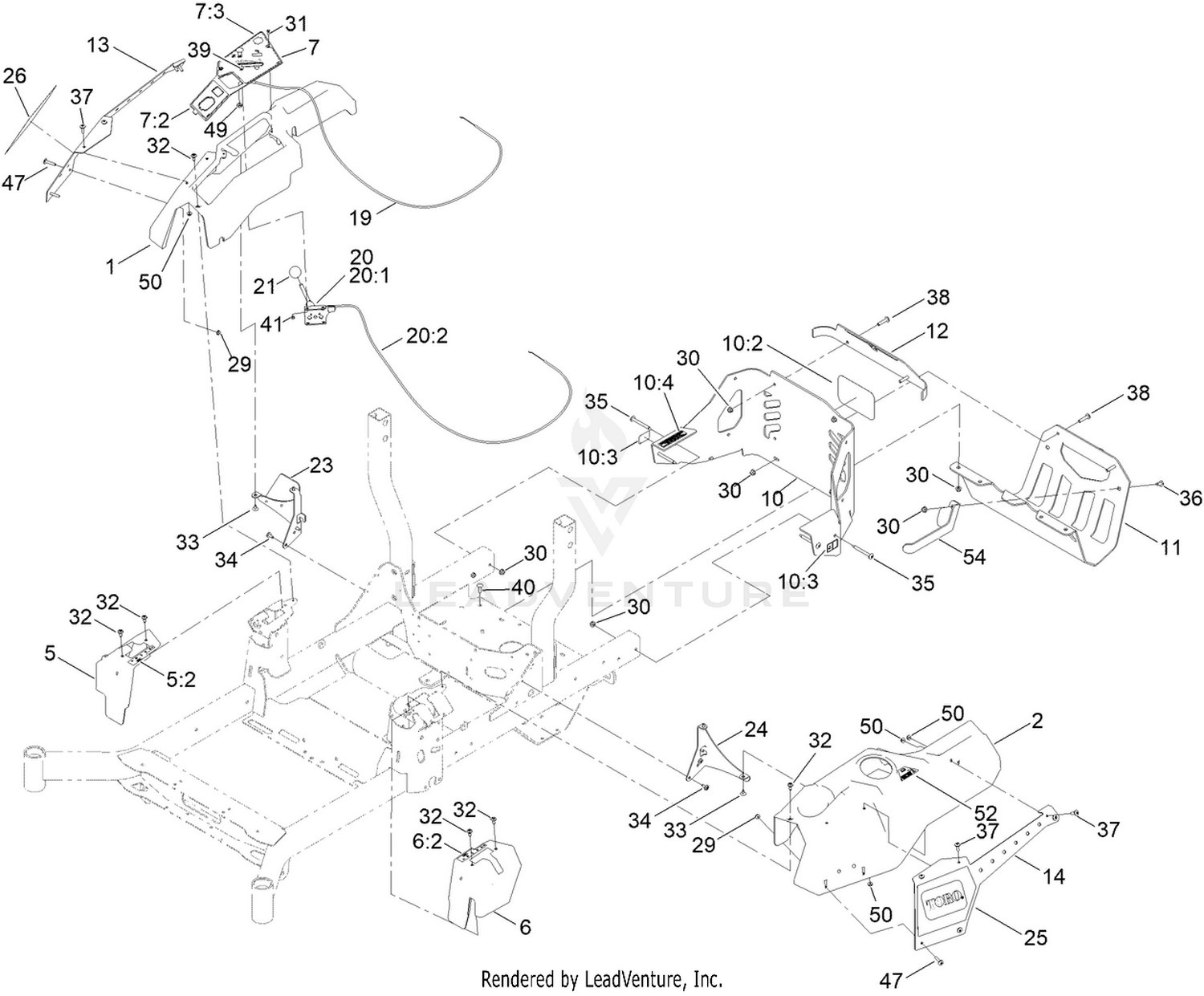

| Ref | Part Number | Description |
|---|
| 1 |
126-4983 |
CONSOLE-RH Price: $47.95 |
| 2 |
126-4984 |
CONSOLE-LH Price: $54.77 |
| 5 |
126-7371 |
COVER-CONTROL, MOTION (RH) Price: $16.85 |
| 6 |
126-7372 |
COVER-CONTROL, MOTION (LH) Price: $16.85 |
| 7 |
147-0323 |
CONTROL PANEL ASM Price: Call Us |
| 10 |
139-3643 |
REAR GUARD ASM Price: $157.02 |
| 11 |
135-5084-03 |
GUARD-MUFFLER [BLACK] Price: Call Us |
| 12 |
139-3644-01 |
TRIM-UPPER REAR Price: $22.41 |
| 13 |
136-1745-01 |
COVER-POD, RH Price: $23.64 |
| 14 |
136-1746-01 |
COVER-LH Price: $23.64 |
| 19 |
144-2647 |
CABLE-CHOKE CONTROL Price: $25.16 |
| 20 |
110-5727 |
THROTTLE CONTROL ASM Price: $56.02 |
| 21 |
1-603175 |
KNOB-BALL Price: $10.99 |
| 23 |
126-9945 |
SUPPORT-CONSOLE, RH Price: $16.85 |
| 24 |
126-5532-03 |
BRACKET-CONSOLE, LH Price: $8.42 |
| 25 |
144-1967 |
DECAL-PLATE, LH Price: $10.93 |
| 26 |
144-1966 |
DECAL-PLATE, RH Price: $10.93 |
| 29 |
104-7201 |
NUT-HF Price: $0.69 |
| 30 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 31 |
117-5036 |
SCREW-HWH Price: $0.27 |
| 32 |
120-7950 |
SCREW-SHOULDER Price: $1.79 |
| 33 |
126-5544 |
SCREW-TORX Price: $0.64 |
| 34 |
126-6266 |
SCREW-TORX Price: $0.91 |
| 35 |
126-6267 |
SCREW-TORX Price: $1.95 |
| 36 |
126-6268 |
SCREW-TORX Price: $1.39 |
| 37 |
126-6269 |
SCREW-TRUSS Price: $1.00 |
| 38 |
126-7439 |
SCREW-TORX Price: $1.29 |
| 39 |
1-807513 |
BOLT-CARR Price: $1.14 |
| 40 |
3230-22 |
SCREW-CARR Price: $1.99 |
| 41 |
3296-2 |
NUT-LOCK, NI Price: $1.89 |
| 47 |
126-8232 |
SCREW-TRUSS Price: $1.02 |
| 49 |
3220-3 |
NUT-HJ Price: $0.28 |
| 50 |
32149-2 |
NUT-KEPS Price: $2.39 |
| 52 |
126-9939 |
DECAL-FILL, FUEL Price: $2.32 |
