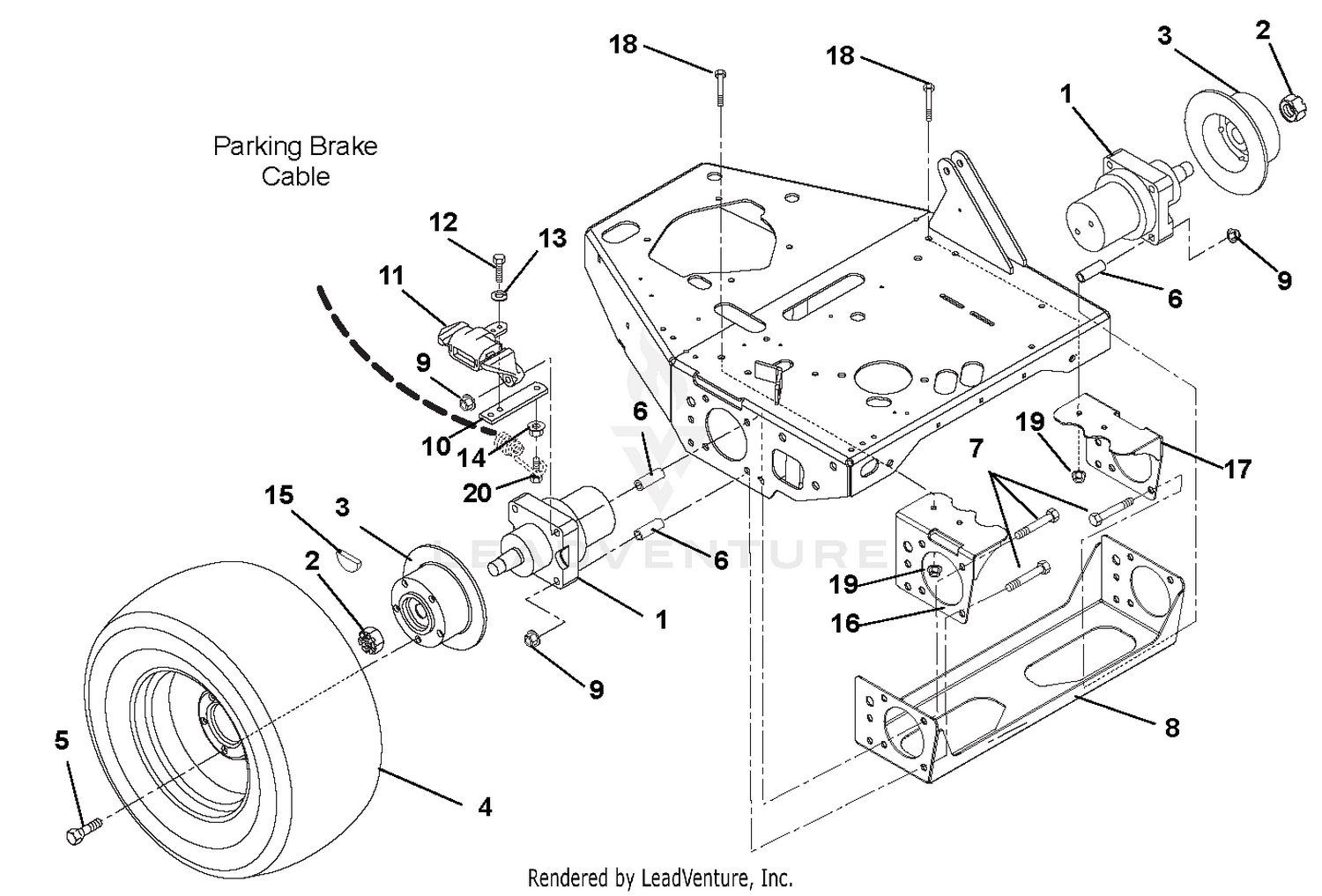

| Ref | Part Number | Description |
|---|
| 2 |
06541900 |
NUT-LK-JAM-PTCH 1.00-20 Price: $28.95 |
| 3 |
09247100 |
HUB & DISK (PARK) 8" 1/2 HOLE Price: $234.95 |
| 4 |
00180235 |
TIRE/WHEEL ASSY, 24X11.50-12 This part replaces 07100207. Price: $252.95 |
| 5 |
07000143 |
BLT-LUG .50-20X1.38 YWZC Price: $3.45 |
| 6 |
05531400 |
BSHG-SLV .513X.748X2.129 Price: $12.45 |
| 8 |
03929051 |
WMT-WHEEL SUPPORT BRACKET Price: $134.95 |
| 9 |
06500907 |
NUT-LK-TOP-FLG .500-13 GF ZCC This part replaces 06543600. Price: $1.45 |
| 10 |
03927900 |
ARM-PARKING BRAKE EXTENSION Price: $5.45 |
| 12 |
05901704 |
BLT-HEX .31-18X.75 G5 ZCC This part replaces 05947000. Price: $1.45 |
| 13 |
06300119 |
WSHR-LK-REG .312X.078 ZCC This part replaces 06308600. Price: $0.95 |
| 14 |
06500815 |
NUT,SPNLK-FLG .31-18 G5 ZCC This part replaces 06530400. Price: $1.45 |
| 15 |
09200600 |
PAD SET, DISK BRAKE Price: $46.95 |
| 16 |
03927151 |
WMT-MAIN FRAME BRACE-RH Price: $56.75 |
| 17 |
03927851 |
WMT-MAIN FRAMEBRACE-LH Price: $57.95 |
| 18 |
05901702 |
BLT,HEX .38-16X.75 G5 ZCC This part replaces 05959400. Price: $1.45 |
| 19 |
06500822 |
NUT-LK-TOP-FLG .38-16 ZC120 This part replaces 06542000. Price: $0.95 |
