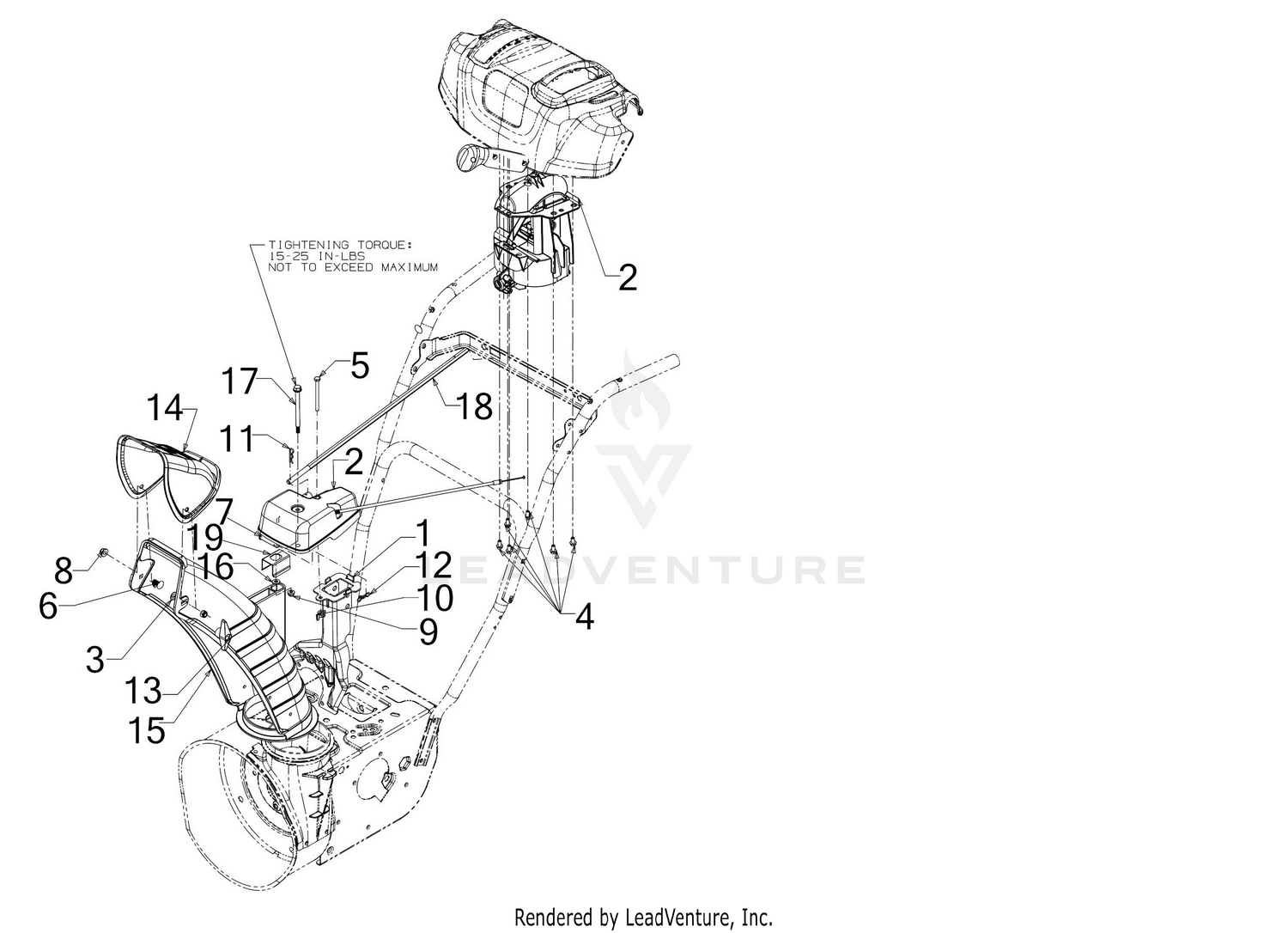

| Ref | Part Number | Description |
|---|
| 1 |
684-04311A-0637 |
CHUTE SUPPORT BRACKET ASSEMBLY Price: $37.04 |
| 3 |
710-04071 |
CARRIAGE BOLT 5/16-18 x 1 Price: $3.94 |
| 4 |
710-04187A |
HEX SCREW 1/4-15 x .50 Price: $5.99 |
| 5 |
710-04370 |
SCREW 1/4-20 x 3.0 GR5 Price: $3.66 |
| 6 |
710-0451 |
CARRIAGE BOLT 5/16-18 x .75 Price: $3.53 |
| 7 |
711-04469A |
CLEVIS PIN 3/8 x 1.87 Price: $5.15 |
| 8 |
712-04063 |
FLANGE LOCK NUT 5/16-18 Price: $3.56 |
| 9 |
712-04064 |
FLANGE LOCK NUT Price: $3.64 |
| 10 |
712-3087 |
WING NUT 1/4-20 Price: $3.53 |
| 11 |
714-0101 |
Int. Cotter Pin This part replaces 914-0101. Price: $4.13 |
| 12 |
714-04040 |
BOW TIE COTTER PIN 1/4-5/16 Price: $1.28 |
| 13 |
720-0284 |
Knob This part replaces 920-0284. Price: $4.08 |
| 14 |
731-04426C |
UPPER CHUTE (W/LBL MANUAL TILT) This part replaces 731-04426A. Price: $17.04 |
| 15 |
731-06440A |
LOWER CHUTE 5" DIA Price: $45.59 |
| 16 |
736-04446 |
FLAT WASHER Price: $3.75 |
| 17 |
738-04367 |
SHOULDER SCREW Price: $4.36 |
| 18 |
747-05116 |
CHUTE ROTATION ROD Price: $26.47 |
