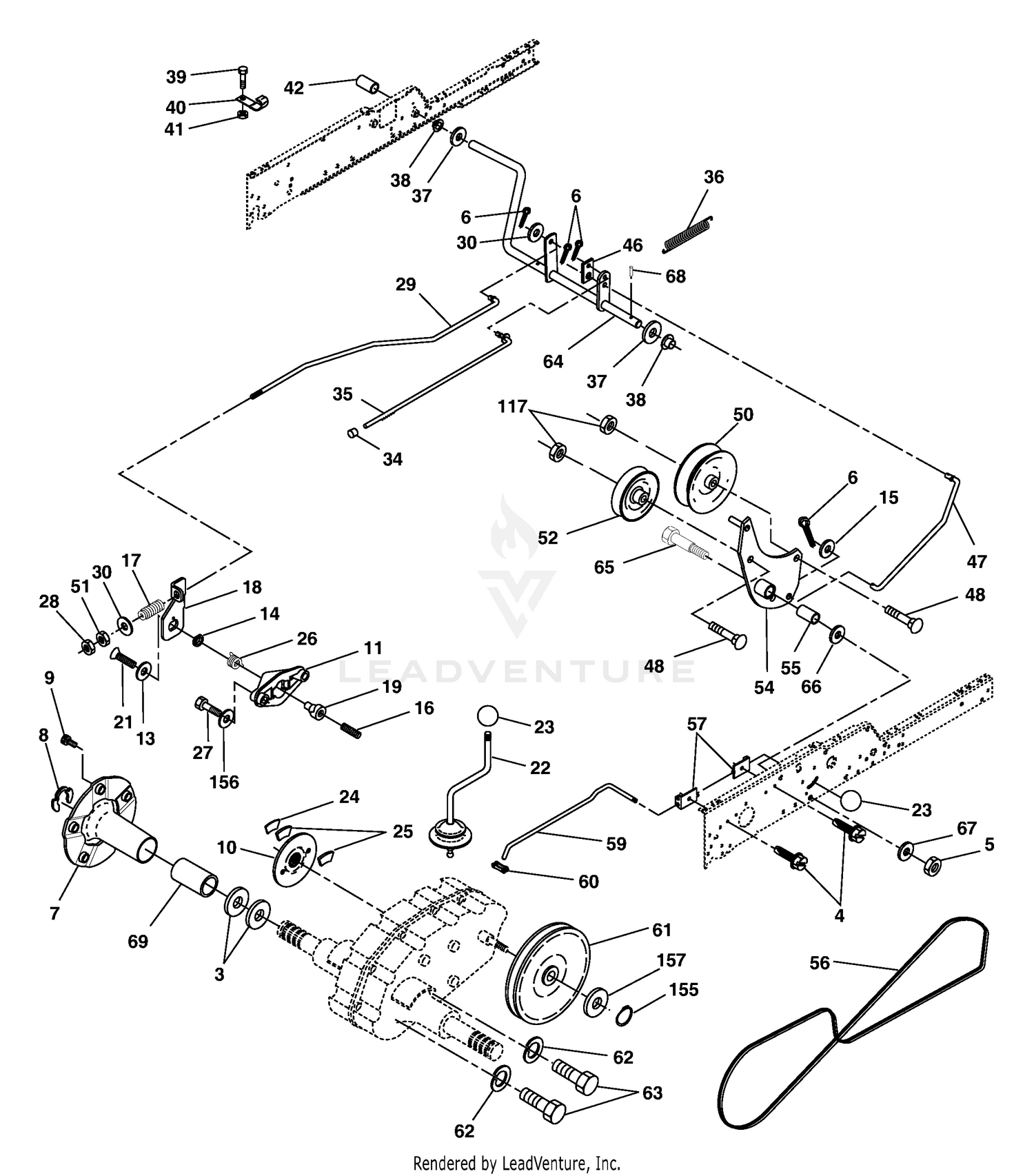

| Ref | Part Number | Description |
|---|
| 1 |
98-7417 |
PLATE-ELEMENT Price: $2.18 |
| 2 |
98-7418 |
PLATE-ELEMENT Price: $3.79 |
| 3 |
7563R |
Washer, Thrust, Axle Price: Call Us |
| 3 |
98-7419 |
ELEMENT-BREATHER Price: $1.72 |
| 4 |
17490508 |
Screw Thdrol 5/16-18 x 3/4 Price: Call Us |
| 4 |
98-7420 |
SHIELD-BREATHER, OIL Price: $5.59 |
| 5 |
73680600 |
Nut, Crownlock 3/8-16 Price: Call Us |
| 5 |
98-7421 |
SCREW W/WASHER Price: $0.24 |
| 6 |
76020412 |
Pin, Cotter Price: Call Us |
| 6 |
98-7422 |
JOINT-PIPE, BREATHER Price: $11.13 |
| 7 |
149176 |
Wheel, Hub Assembly Price: Call Us |
| 7 |
98-7423 |
PIPE-BREATHER Price: $8.51 |
| 8 |
12000034 |
Klip, Ring Price: Call Us |
| 8 |
98-7424 |
CLAMP-PIPE Price: $6.82 |
| 9 |
140080 |
Bolt, Hub Price: Call Us |
| 9 |
98-7425 |
COVER-HEAD, CYLINDER Price: $373.42 |
| 10 |
142509 |
Disc, Brake Price: Call Us |
| 10 |
98-7426 |
GASKET-COVER, HEAD Price: $42.36 |
| 11 |
136927 |
Yoke, Brake Disc Price: Call Us |
| 11 |
98-7427 |
NUT-CAP Price: $6.64 |
| 12 |
98-7428 |
GASKET Price: $0.68 |
| 13 |
107-9075 |
PLUG-FILLER, OIL This part replaces 98-7429. Price: $7.25 |
| 13 |
139419 |
Washer, Special Price: Call Us |
| 14 |
138901 |
Bushing Price: Call Us |
| 15 |
19131316 |
Washer 13/32x13/16 x 16 Ga. Price: Call Us |
| 16 |
143012 |
Set, Screw 1/4-28 x 3/4 Price: Call Us |
| 17 |
126909X |
Spring Price: Call Us |
| 18 |
137104 |
Lever, Brake Price: Call Us |
| 19 |
136926 |
Cam, Brake Disc Price: Call Us |
| 21 |
23260412 |
Screw, Flat Head 1/4-28 x 3/4 Price: Call Us |
| 22 |
194121 |
Gearshift, Lever Assembly Price: Call Us |
| 23 |
106932X |
Knob Price: Call Us |
| 24 |
136925 |
Support, Puck Brake Price: Call Us |
| 25 |
136923 |
Puck, Brake Top Price: Call Us |
| 26 |
137552 |
Spring, Return Price: Call Us |
| 27 |
74880528 |
Bolt Hx Gr 8 5/16-18 UNC x 1-3/4 Price: Call Us |
| 28 |
73350600 |
Nut, Hex Jam 3/8-16 Price: Call Us |
| 29 |
137213 |
Brake, Rod Price: Call Us |
| 30 |
19131616 |
Washer 13/32 x 1 x 16 Ga. Price: Call Us |
| 34 |
71673 |
Cap, Plunger Price: Call Us |
| 35 |
137648 |
Rod, Parking Brake Price: Call Us |
| 36 |
149412 |
Spring, Drive Ground Price: Call Us |
| 37 |
121749X |
Washer 25/32 x 1-1/4 x 16 Ga. Price: Call Us |
| 38 |
150035 |
Nyliner Price: Call Us |
| 39 |
74321016 |
Screw, Fin. #10-24 x 1 Price: Call Us |
| 40 |
178575 |
Actuator, Interlock Switch Price: Call Us |
| 41 |
73931000 |
Nut, Centerlock #10-24 Price: Call Us |
| 42 |
123533X |
Cover, Pedal Price: Call Us |
| 46 |
145170 |
Retainer, Spring Price: Call Us |
| 47 |
138228 |
Clutch Rod Price: Call Us |
| 48 |
72110612 |
Bolt, Carr. 3/8-16 x 1-1/2 Gr. 5 Price: Call Us |
| 50 |
131494 |
Pulley, Idler, Flat Price: Call Us |
| 51 |
73800600 |
Nut, Crownlock 3/8-16 unc Price: Call Us |
| 52 |
139123 |
Pulley, Idler, Grooved Price: Call Us |
| 54 |
161590 |
Clutch, Arm Assembly Price: Call Us |
| 55 |
105706X |
Bearing, Idler Price: Call Us |
| 56 |
137153 |
V-Belt Price: Call Us |
| 57 |
141756 |
Bracket, Shift Rod, Hi-Lo Price: Call Us |
| 59 |
122253X |
Shift Rod, Hi-Lo Price: Call Us |
| 60 |
122268X |
Spring Clip, Connecting Link Price: Call Us |
| 61 |
184787 |
Pulley, Transaxle Price: Call Us |
| 62 |
10040700 |
Washer, Lock 7/16 Price: Call Us |
| 63 |
74780720 |
Bolt, Fin Hex 7/16-14 x 1-1/4 Price: Call Us |
| 64 |
154752 |
Shaft, Clutch/Brake Pedal Price: Call Us |
| 65 |
179613 |
Bolt, Shoulder Price: Call Us |
| 66 |
140296 |
Washer, Hardened Price: Call Us |
| 67 |
19131312 |
Washer, Flat Price: Call Us |
| 68 |
5142H |
Pin, Roll Price: Call Us |
| 69 |
136327 |
Hub, Cover Price: Call Us |
| 117 |
73900600 |
Nut, Lock Flg. 3/8-16 unc Price: Call Us |
| 155 |
12000028 |
Ring Retainer Price: Call Us |
| 156 |
10040500 |
Washer Lock Hvy HLCL SPR 5/16 Price: Call Us |
