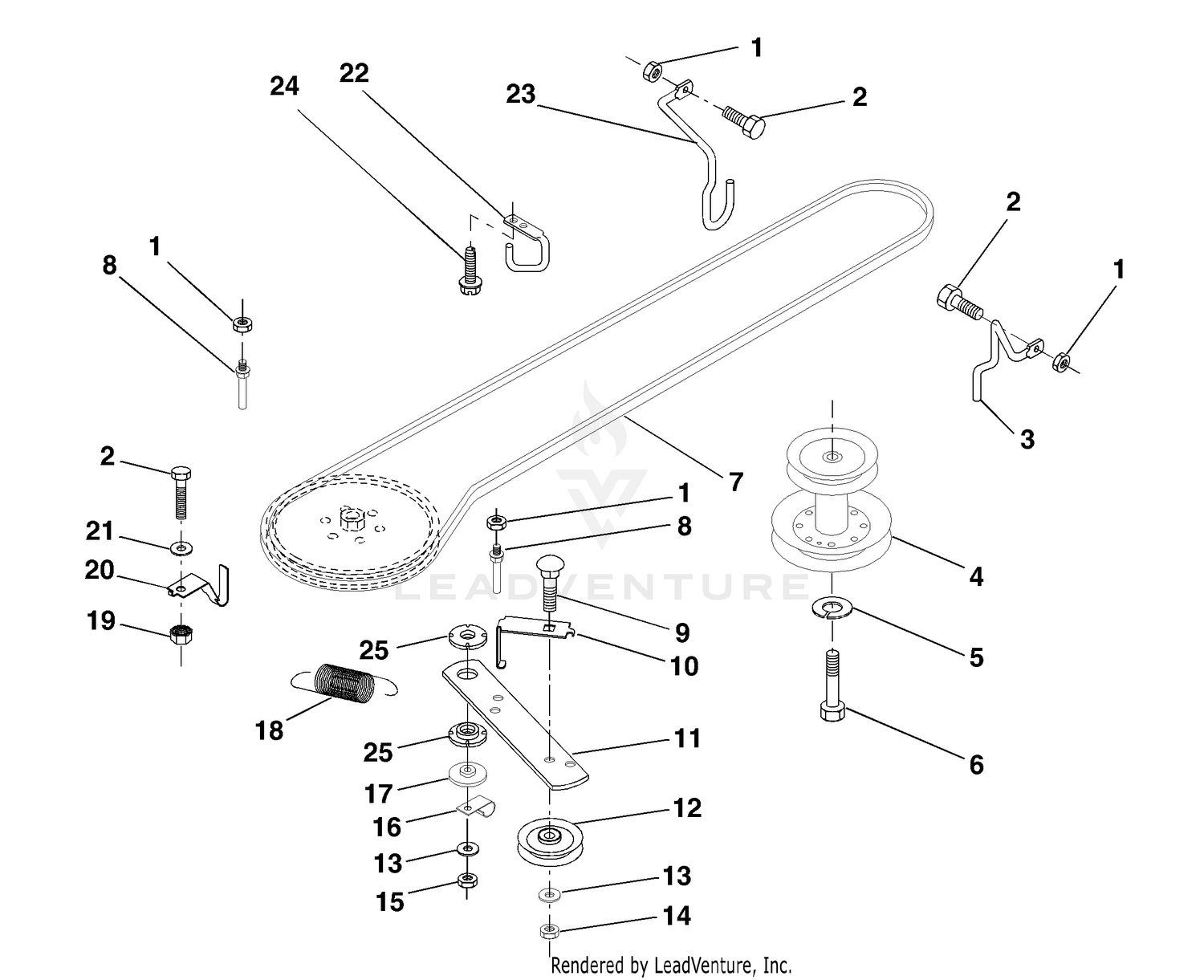

| Ref | Part Number | Description |
|---|
| 1 |
596040501 |
Hardware This part replaces 873680500. Price: $2.99 |
| 1 |
98-7430 |
O-RING Price: $1.95 |
| 2 |
107-9075 |
PLUG-FILLER, OIL This part replaces 98-9449. Price: $7.25 |
| 2 |
596030501 |
SCREW HEXAGON HEAD SCREW 5/16- This part replaces 874760512. Price: $3.99 |
| 3 |
532141342 |
KEEPER/MOWER DRIVE RH Price: $4.99 |
| 3 |
98-9455 |
NUT-CAP Price: $4.77 |
| 4 |
532138029 |
PULLEY.ENGINE.36/38 LR Price: $48.99 |
| 4 |
98-9454 |
GASKET Price: $1.43 |
| 5 |
596238901 |
Washers This part replaces 810040700. Price: $2.99 |
| 5 |
98-9492 |
JOINT-PIPE, BREATHER Price: $9.68 |
| 6 |
871170744 |
Bolt Hex 7/16-20 Gr. 5 Price: $2.99 |
| 6 |
98-9491 |
PIPE-BREATHER Price: $12.92 |
| 7 |
532419271 |
V-BELT.DRIVE.MOWER.30" This part replaces 532126520. Price: $49.99 |
| 7 |
98-9364 |
SCREW (WITH WASHER) Price: $0.32 |
| 8 |
532156109 |
BELT KEEPER KIT This part replaces 532123405. Price: $3.99 |
| 8 |
98-9490 |
SHIELD-OIL, BREATHER Price: $1.28 |
| 9 |
872140612 |
Bolt, Carr. 3/8-16 UNC x 1-1/2 Price: $2.99 |
| 9 |
98-9488 |
PLATE-ELEMENT, BREATHER Price: $1.33 |
| 10 |
532123396 |
KEEPER.BELT.GROUND.DRIVE.IDLER Price: $4.99 |
| 10 |
98-9493 |
ELEMENT-BREATHER Price: $6.10 |
| 11 |
532150926 |
ARM, GROUND DRIVE CLUTCH Price: $4.69 |
| 11 |
98-9489 |
PLATE-ELEMENT, BREATHER Price: $7.89 |
| 12 |
532123674 |
PULLEY.IDLER.FLAT Price: $24.99 |
| 12 |
98-9615 |
GASKET-COVER, HEAD Price: $20.34 |
| 13 |
596565301 |
WASHER PLAIN WASHER 3/8 X 0.08 This part replaces 819131316. Price: $2.99 |
| 14 |
596322601 |
Nuts This part replaces 873930600. Price: $2.99 |
| 15 |
596322601 |
Nuts This part replaces 873680600. Price: $2.99 |
| 16 |
532126471 |
CLIP,INSULATOR Price: $3.99 |
| 17 |
532150932 |
SPACER, RETAINER Price: $2.99 |
| 18 |
532131459 |
SPRING.EXTENSION Price: $4.99 |
| 19 |
596040501 |
Hardware This part replaces 873510500. Price: $2.99 |
| 20 |
532139919 |
KEEPER-T/A GROUND DRIVE BELT Price: $2.99 |
| 21 |
819111016 |
Washer 11/32 x 5/8 x 16 Ga. Price: $5.99 |
| 22 |
532123404 |
KEEPER,FRA DR BEL Price: $3.22 |
| 23 |
532140916 |
KEEPER-MOWER DRIVE LH Price: $5.99 |
| 24 |
596437001 |
Screws This part replaces 817720408. Price: $2.99 |
