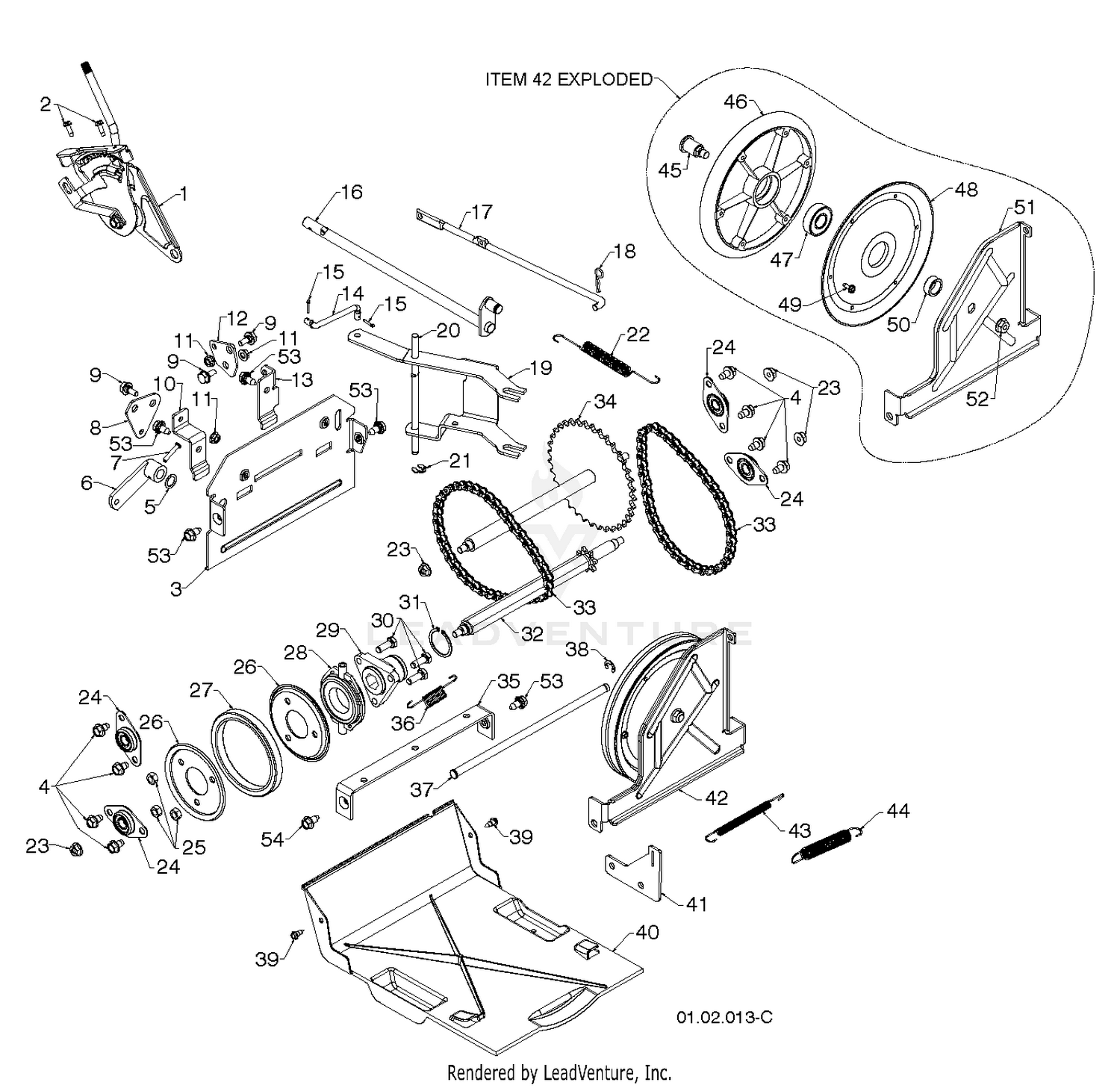

| Ref | Part Number | Description |
|---|
| 1 |
3274-71 |
SCREW-HSH Price: $2.71 |
| 1 |
532429667 |
KIT.CONTROL.SPEED.SELECTOR.SNO This part replaces 532198875. Price: $66.99 |
| 2 |
817501010 |
SCREW #10-24 X 5/8 Price: $3.99 |
| 3 |
532437074 |
Price: $17.99 |
| 4 |
817490508 |
Screw, Hex Washer Head Threaded, Rolling 5/16-18 x 1/2 Price: $3.99 |
| 4 |
86-5620 |
BEARING-BALL, 2 BOLT FLANGE Price: $103.16 |
| 5 |
532057079 |
THRUST WASHER Price: $2.99 |
| 5 |
84-1320-03 |
SHAFT-PTO This part replaces 84-1320. Price: $276.98 |
| 6 |
100-2592 |
SCREW-HHF This part replaces 66-9303. Price: $9.09 |
| 6 |
532405485 |
ARM, AUGER CONTROL Price: $6.99 |
| 7 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 7 |
532198580 |
CLEVIS PIN Price: $3.99 |
| 8 |
32144-11 |
SCREW-THD ROLL, HWH Price: $6.99 |
| 8 |
532415450 |
PLATE.SHIFTER.BZP Price: $2.99 |
| 9 |
532402881 |
BOLT.SHOULDER.3/X.25 Price: $2.99 |
| 9 |
86-5470 |
DISCONTINUED Price: Call Us |
| 10 |
2412-109 |
CLIP-J Price: $3.82 |
| 10 |
532415433 |
BRACKET.SHIFTER.PLATE.BZP Price: $2.99 |
| 11 |
33115-030 |
SCREW-HH This part replaces 48-9470. Price: $0.68 |
| 11 |
532191730 |
NUT.HEX.FLANGE.1/4 Price: $3.99 |
| 12 |
325-14 |
SCREW-HH Price: $2.64 |
| 12 |
532415435 |
PLATE.CLUTCH.BZP Price: $2.99 |
| 13 |
106-1061 |
CLUTCH ADAPTER KIT This part replaces 84-1410. Price: $263.30 |
| 13 |
532416864 |
BRACKET.CLUTCH.PLATE.BZP Price: $2.99 |
| 14 |
532187101 |
LINK, SPEED CONTROL Price: $14.99 |
| 14 |
92-5818-03 |
HOUSING This part replaces 92-5818. Price: $554.35 |
| 15 |
532700279 |
RETAINER CLIP Price: $3.99 |
| 15 |
88-1140 |
SPACER-BEARING, LOWER Price: $16.29 |
| 16 |
251-310 |
BEARING-BALL Price: $140.09 |
| 16 |
532429668 |
KIT.CONTROL.SHAFT.SNO This part replaces 532427542. Price: $28.99 |
| 17 |
532402568 |
ROD.CLUTCH.SWING.PLATE Price: $9.99 |
| 17 |
84-0180 |
DISCONTINUED Price: Call Us |
| 18 |
532169675 |
SPRING RETAINER Price: $3.99 |
| 18 |
84-1540 |
KEY-CLUTCH Price: $18.26 |
| 19 |
581422501 |
BRACKET.YOKE.SHIFTER.BLACK This part replaces 532401732. Price: $17.99 |
| 19 |
88-1170 |
V-BELT (MATCHED SET) Price: $105.24 |
| 20 |
532402310 |
ROD.PIVOT.SHIFTER Price: $3.99 |
| 21 |
812000036 |
KLIP RING TI Price: $3.99 |
| 21 |
84-1570 |
SPACER-PLATE Price: $14.75 |
| 22 |
532402878 |
SPRING.TRACTION.RETURN Price: $2.99 |
| 22 |
84-1550 |
MOUNT-RUBBER Price: $27.49 |
| 23 |
532751153 |
NUT, LOCK 5/16-18 Price: $1.99 |
| 23 |
88-1510 |
SCREW-SPECIAL Price: $9.28 |
| 24 |
3234-22 |
SCREW-HHF Price: $2.69 |
| 24 |
532408981 |
BEARING FLANGE BALL Price: $5.99 |
| 25 |
873930500 |
NUT.CENTERLOCK.5/16- Price: $3.99 |
| 26 |
532435789 |
RUBBER WHEEL PLATE This part replaces 532199509. Price: $6.99 |
| 26 |
84-1560 |
WASHER-THRUST Price: $2.71 |
| 27 |
3296-25 |
NUT-LOCK, NI Price: $1.34 |
| 27 |
532440620 |
RING.RUBBER.2-STG.SNW.DRV.WH Price: $12.99 |
| 28 |
32128-49 |
NUT-HHF Price: $1.04 |
| 28 |
532175344 |
TRUNNION BEARING ASSY Price: $19.99 |
| 29 |
325-9 |
SCREW-HH Price: $1.87 |
| 29 |
532178613 |
HUB, RUBBER WHEEL Price: $19.99 |
| 30 |
874760514 |
BOLT Price: $3.99 |
| 30 |
88-1450 |
LOCKNUT-BEARING Price: $32.99 |
| 31 |
812000012 |
RETAINING RING Price: $2.99 |
| 31 |
94-5623 |
MAIN HARNESS Price: $1,410.45 |
| 32 |
532402187 |
SHAFT.HEX.W/SPOCKET Price: $14.99 |
| 32 |
88-1460 |
WASHER-LOCK Price: $13.85 |
| 33 |
532401619 |
CHAIN.DRIVE.SNOWTHROWER.#420 Price: $11.99 |
| 33 |
88-1150 |
SPACER-CLUTCH Price: $31.20 |
| 34 |
532437303 |
SPROCKET.WELDMENT Price: $28.99 |
| 34 |
92-5817 |
PIN-STOP, CLUTCH Price: $18.86 |
| 35 |
532435955 |
BRACKET.YOKE.SHIFTER.BLACK This part replaces 532415429. Price: $6.99 |
| 35 |
88-1280 |
COVER-BELT, LOWER Price: $156.55 |
| 36 |
3256-70 |
WASHER-FLAT Price: $0.25 |
| 36 |
532180135 |
SPRING, BIAS Price: $2.99 |
| 37 |
532402652 |
ROD.PIVOT.SWING.PLATE Price: $12.99 |
| 37 |
98-7254 |
KIT - CLUTCH REPLACEMENT This part replaces 98-7250. Price: $2,193.47 |
| 38 |
532428288 |
E-RING.RETAINER.REINFORCED.375 Price: $2.99 |
| 38 |
84-1580 |
WASHER-CLUTCH Price: $30.33 |
| 39 |
3234-19 |
SCREW-HHF Price: $1.73 |
| 39 |
532184471 |
SCREW, HEX HEAD, TAPPING Price: $2.99 |
| 40 |
532410877 |
PAN.BOTTOM.PLASTIC Price: $17.99 |
| 40 |
86-3040 |
COUPLER-LINE, DRIVE Price: $381.88 |
| 41 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 41 |
532416682 |
BRACKET.TRACTION.SPRING. Price: $3.99 |
| 42 |
532402689 |
PULLEY.PLATE.ASM.DRIVE Price: $77.99 |
| 42 |
86-1990 |
WASHER-THRUST Price: $1.81 |
| 43 |
302-60 |
FITTING-GREASE Price: $2.26 |
| 43 |
532414557 |
SPRING.TRACTION.IDLER Price: $2.99 |
| 44 |
3296-47 |
NUT-LOCK, NI Price: $3.59 |
| 44 |
532178828 |
SPRING, BRAKE Price: $2.99 |
| 45 |
532402504 |
SHAFT.FRICTION.PULLEY.SNOW Price: $7.99 |
| 46 |
532402689 |
PULLEY.PLATE.ASM.DRIVE This part replaces 532401820. Price: $77.99 |
| 47 |
532198791 |
BEARING Price: $11.99 |
| 48 |
532402393 |
PULLEY.HALF.TRACTION Price: $59.99 |
| 49 |
817541008 |
SCREW Price: $2.99 |
| 50 |
532402511 |
SPACER BEARING Price: $2.99 |
| 51 |
532422941 |
SWINGPLATE Price: $7.99 |
| 52 |
532409148 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 532132010. Price: $2.69 |
| 53 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 Price: $2.49 |
