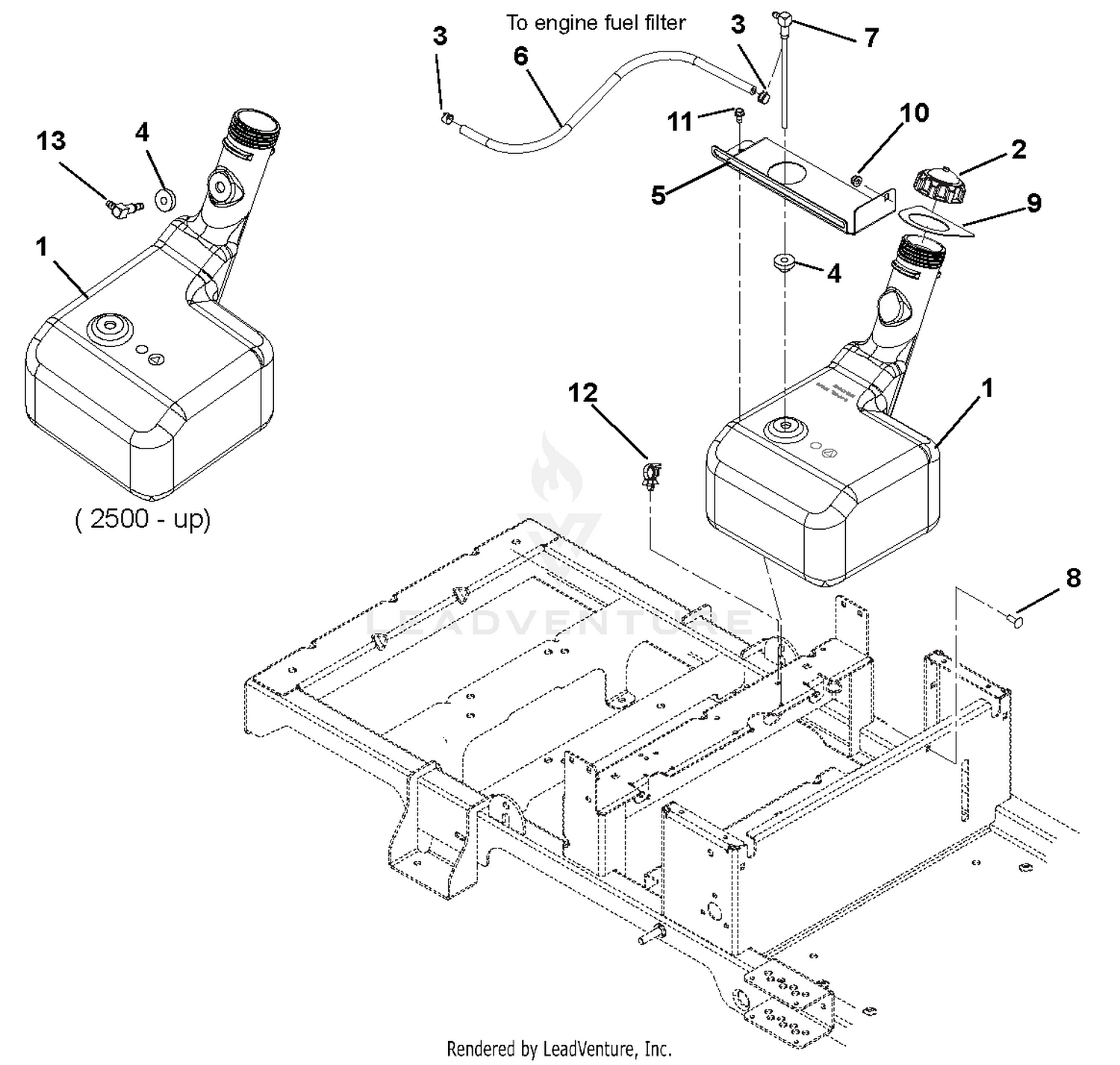

Fuel Tank
Parts (8)
| Ref | Part Number | Description |
|---|---|---|
| 3 | 03278800 | CLAMP, FUEL LINE Price: $0.95 |
| 5 | 03771451 | BRKT, TANK STRAP Price: $17.45 |
| 7 | 04333600 | FUEL PICK UP TUBE Price: $14.45 |
| 8 | 06200307 | BLT, RHSN .25-20X.750 G5 ZCC This part replaces 06219900. Price: $0.95 |
| 9 | 03795700 | SEAL-TANK NECK Price: $3.45 |
| 10 | 06500813 | NUT,NYL-FLG .25-20 GF ZCC This part replaces 06500012. Price: $1.45 |
| 11 | 07400122 | SCR-TAP .25-20X.50 HWH ZCC This part replaces 07400034. Price: $0.45 |
| 12 | 00390100 | WIRE CLIP Price: $3.45 |
