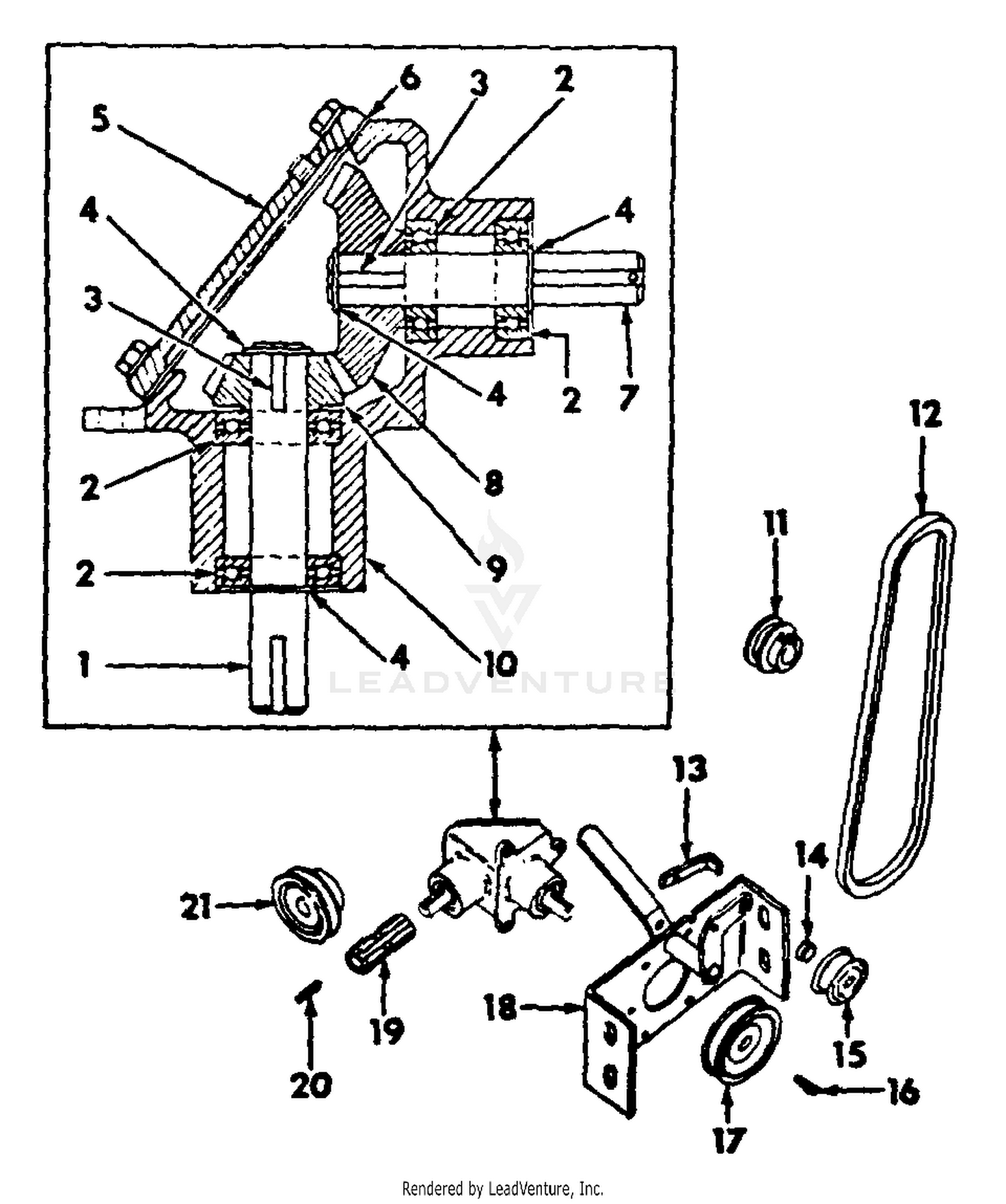

| Ref | Part Number | Description |
|---|
| 1 |
475605-R1 |
SHAFT, INPUT Price: Call Us |
| 1 |
532421059 |
TUBE.LOWER.HANDLE.SNOW.BLACK Price: $84.99 |
| 1 |
808440 |
Cylinder Assembly Price: Call Us |
| 2 |
475-627-R91 |
BEARING, BALL Price: Call Us |
| 2 |
532422117 |
SUPPORT.WELDMENT.ROTATOR. Price: $6.99 |
| 2 |
808534 |
Bushing-Seal Kit Price: Call Us |
| 3 |
475-642-R1 |
KEY, 3/16 x 11/16 SQ PARALLEL Price: Call Us |
| 3 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 532150078. Price: $4.99 |
| 4 |
269-181-R1 |
RING, RETAINING Price: Call Us |
| 5 |
475-597-R1 |
COVER, GEAR BOX Price: Call Us |
| 6 |
475-598-R1 |
GASKET, COVER Price: Call Us |
| 7 |
475-601-R1 |
SHAFT, OUTPUT Price: Call Us |
| 8 |
485-304-R1 |
GEAR, LARGE BEVEL Price: Call Us |
| 8 |
807795 |
Breather Assembly Price: Call Us |
| 9 |
485-305-R1 |
GEAR, SMALL BEVEL Price: Call Us |
| 10 |
475-596-R1 |
HOUSING, GEAR BOX Price: Call Us |
| 10 |
805751 |
Screw Price: Call Us |
| 11 |
475640-R1 |
PULLEY, TOP Price: Call Us |
| 11 |
806083 |
Tube-Breather Price: Call Us |
| 12 |
475595-R1 |
BELT, DRIVE Price: Call Us |
| 12 |
806190 |
Gasket-Crankcase Price: Call Us |
| 13 |
175636-R1 |
LATCH Price: Call Us |
| 14 |
475594-R1 |
BUSHING, PIVOT Price: Call Us |
| 15 |
475592-R91 |
PULLEY, IDLER Price: Call Us |
| 15 |
805048 |
Plug-Oil Drain Price: Call Us |
| 16 |
Q-5-024 |
KEY, 3/16 x 1 SQ PARALLEL Price: Call Us |
| 17 |
475641-R91 |
PULLEY, LOWER Price: Call Us |
| 17 |
805754 |
Ball Bearing Price: Call Us |
| 18 |
475635-R91 |
PLATE ASSY, MOUNTING Price: Call Us |
| 18 |
808502 |
Cover-Crankcase Price: Call Us |
| 20 |
474-098-R1 |
KEY, 3/16 x 1-114 SQ PARALLEL Price: Call Us |
| 22 |
805696 |
Screw-Hex. Price: Call Us |
| 84 |
91488 |
Plug-Oil Price: Call Us |
| 116 |
806191 |
Seal-O-Ring Price: Call Us |
| 166 |
805073 |
Stud-Hex. Drive Price: Call Us |
| 188 |
805247 |
Screw Price: Call Us |
| 189 |
805449 |
Washer Price: Call Us |
| 523 |
808407 |
Dipstick Price: Call Us |
| 525 |
808377 |
Tube-Oil Fill Price: Call Us |
| 552 |
805412 |
Bushing-Govemor Shaft Price: Call Us |
| 552A |
805413 |
Bushing-Govemor Shaft Price: Call Us |
| 572 |
805197 |
Baffle-Oil Price: Call Us |
| 614 |
806096 |
Pin-Cotter Price: Call Us |
| 616 |
807596 |
Fork-Govemor Price: Call Us |
| 634 |
805416 |
Seal-Governor Price: Call Us |
| 718 |
805103 |
Pin-Dowel Price: Call Us |
| 982 |
805030 |
Screw Price: Call Us |
| 1027 |
492932 |
Filter-Oil Price: Call Us |
| 1028 |
808325 |
Adapter-Oil Filter Price: Call Us |
