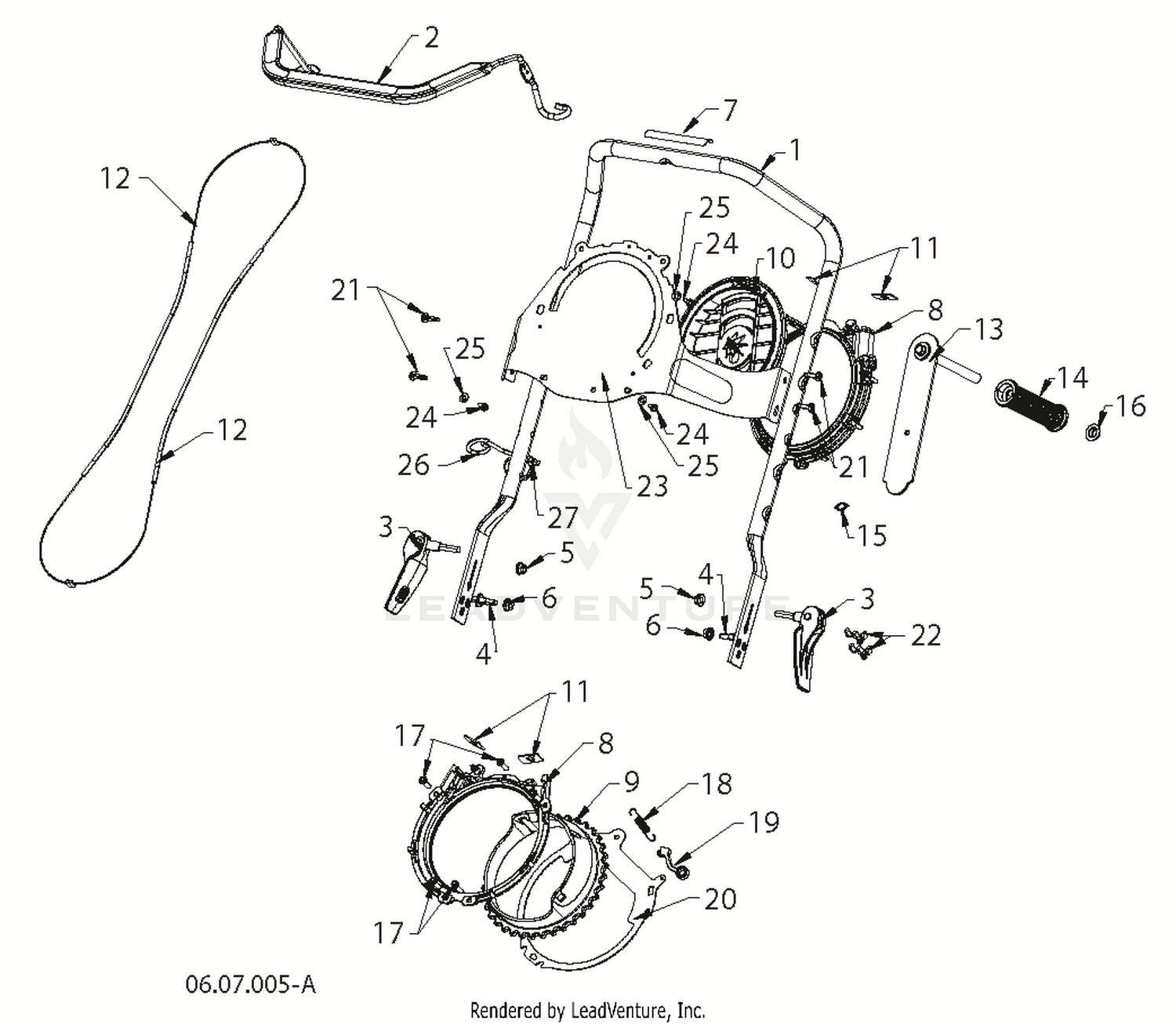

| Ref | Part Number | Description |
|---|
| 1 |
532443432 |
HANDLE.UPPER.ERGO.SSST.GREY Price: $39.99 |
| 2 |
532443433 |
BAIL.OVERMOLD.HUSQ.SSST.BLACK Price: $64.99 |
| 3 |
532443021 |
SUBASM.QUICK.ADJUST.COLD Price: $27.99 |
| 4 |
532199255 |
STUD.QUICK.ADJUST Price: $2.99 |
| 5 |
532442248 |
NUT 5/16- 18 FLANGE NYLOCK.BLK Price: $3.99 |
| 6 |
596040501 |
Hardware This part replaces 873970500. Price: $2.99 |
| 7 |
532437506 |
DECAL.SSST.AUGER.INSTRUCTIONS Price: $7.99 |
| 8 |
532443938 |
CHUTE RING.RETAINER Price: $12.99 |
| 9 |
532443939 |
CHUTE BASE.DCC.BLACK Price: $17.99 |
| 10 |
532443940 |
PULLEY.DCC.RING.BLACK Price: $19.99 |
| 11 |
532436806 |
CABLE.BRACKET.DCC Price: $6.99 |
| 12 |
532436805 |
CABLE.DCC Price: $24.99 |
| 13 |
532436890 |
HANDLE.SUBASM.PIVOT Price: $19.99 |
| 14 |
532442835 |
GRIP.HANDLE.SUBASM. Price: $11.99 |
| 15 |
532444749 |
WASHER.THREE.WAVE.SPRING.SSST Price: $3.99 |
| 16 |
532435417 |
NUT.PUSH.AXLE.0.5IN Price: $7.99 |
| 17 |
817411312 |
SCREW.HX.13X.750 Price: $4.99 |
| 19 |
532434878 |
ARM.CHUTE.RATCHET Price: $14.99 |
| 20 |
580855601 |
PLATE.CHUTE.BASE.SS.SNOW.BLACK Price: $22.99 |
| 21 |
532442250 |
SCREW.PAN.HD.TORX.1/4-20X.750 Price: $3.99 |
| 22 |
532145006 |
PUSH CLIP Price: $2.99 |
| 23 |
532443318 |
BRACKET.SUPPORT.DCC.STAMP This part replaces 580855901. Price: $43.99 |
| 24 |
594975601 |
Screws This part replaces 532184471. Price: $1.99 |
| 25 |
596029801 |
WASHER SPRING LOCK WASHER WITH This part replaces 810040400. Price: $2.99 |
| 26 |
532442234 |
GUIDE.ROPE.SNOW Price: $22.99 |
| 27 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 532132004. Price: $1.99 |
