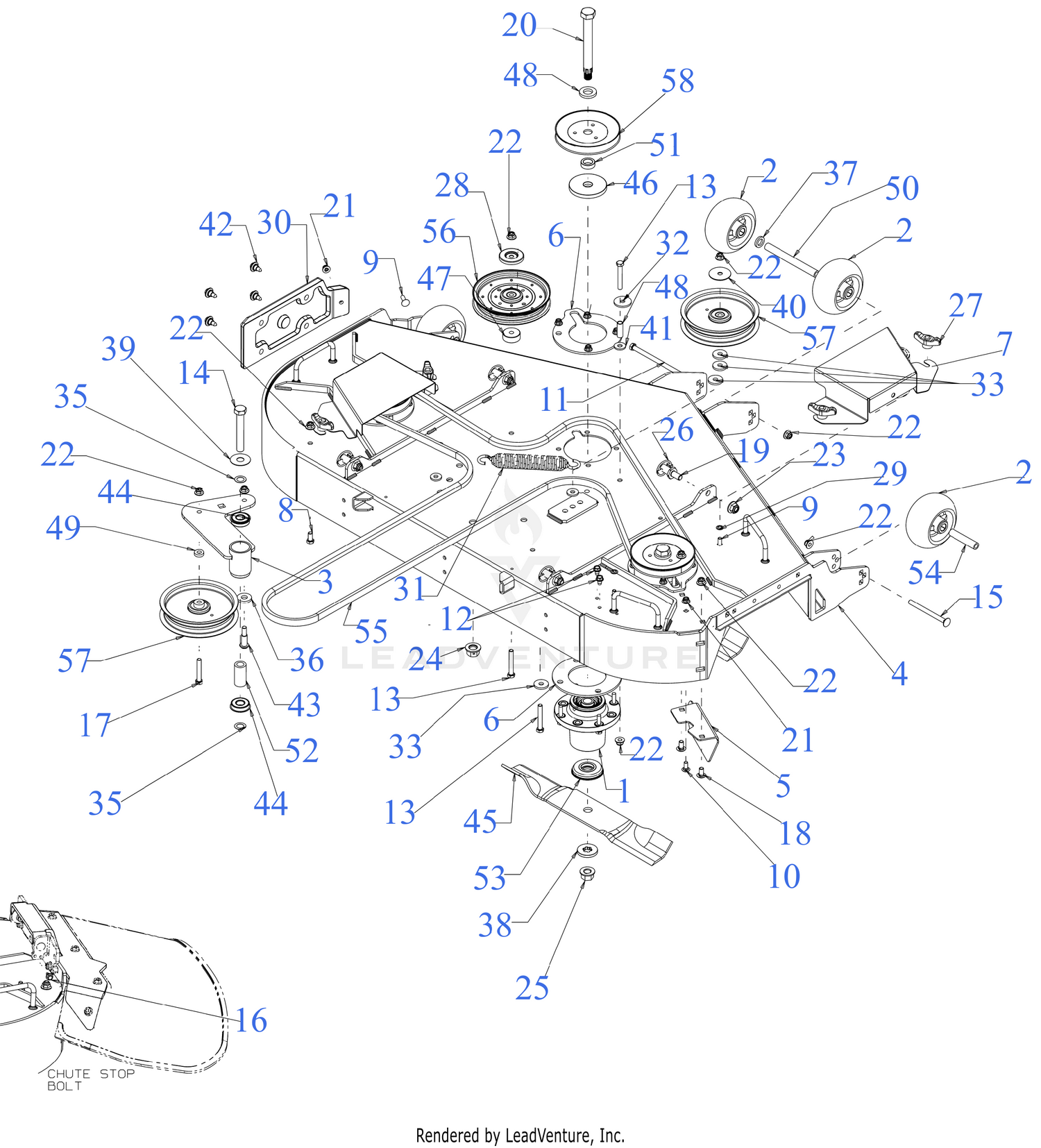

| Ref | Part Number | Description |
|---|
| 6 |
703E10057A |
SPINDLE SUPPORT PLATE TOP & BOTTOM Price: $22.65 |
| 8 |
710-0216 |
HEX SCREW 3/8-16 x .75 Price: $3.93 |
| 9 |
710-0276 |
CARRIAGE BOLT 5/16-18 x 1.00 Price: $3.68 |
| 10 |
710-0451 |
CARRIAGE BOLT 5/16-18 x .75 Price: $3.53 |
| 11 |
710-04692 |
SCREW 3/8-16 x 7.25 GR5 Price: $8.15 |
| 12 |
710-0607 |
SCREW 5/16-18 x .500 Price: $6.06 |
| 13 |
710-0859 |
HEX SCREW-3/8-16X2.5 GR5 Price: $5.99 |
| 14 |
710-1143A |
SCREW 5/8-18 x 4 GR5 Price: $10.02 |
| 15 |
710-1649 |
CARRIAGE BOLT 3/8-16 x 4.25 GR5 Price: $15.07 |
| 16 |
710-1652 |
SCREW 1/4-20X.625 Price: $3.86 |
| 17 |
710-3011 |
SCREW 3/8-16 x 2.25 GR5 Price: $6.49 |
| 18 |
710-3178 |
CARRIAGE BOLT 3/8-16 x .75 Price: $3.93 |
| 19 |
711-05604 |
PIN Price: $9.67 |
| 20 |
711-06787 |
SPINDLE SHAFT Price: $29.42 |
| 21 |
712-04063 |
FLANGE LOCK NUT 5/16-18 Price: $3.56 |
| 22 |
712-04065 |
NUT Price: $3.68 |
| 23 |
712-04150 |
NUT Price: $3.74 |
| 24 |
712-04327 |
NUT Price: $6.57 |
| 25 |
712-05203 |
FLANGE NUT - 5/8-18 GDE 8 Price: $6.16 |
| 26 |
753-04070 |
LYNCH PIN .1875 Price: $8.64 |
| 27 |
720-04122 |
WING KNOB 5/16-18 Price: $5.87 |
| 28 |
721-04516 |
PULLEY CAP Price: $12.89 |
| 29 |
726-0201 |
PUSH NUT Price: $6.01 |
| 30 |
731-11926 |
DECK SKID PLATE (LH) Price: $44.26 |
| 31 |
732-05360C |
SPRING 1.25" DIA x 8.5" LONG This part replaces 732-05360A. Price: $30.00 |
| 32 |
736-0227 |
FLAT WASHER .390x1.500x.134 Price: $5.78 |
| 33 |
736-0247 |
FLAT WASHER Price: $8.82 |
| 34 |
736-0258 |
FLAT WASHER .385 x 1.00 x .135 Price: $3.93 |
| 35 |
736-0349 |
FLAT WASHER Price: $3.59 |
| 36 |
736-04019 |
FLAT WASHER .531 x 1.25 x .181 Price: $7.02 |
| 37 |
736-04296 |
FLAT WASHER .632X1.00X.16 Price: $2.83 |
| 38 |
736-05223A |
FLAT WASHER - SPECIAL Price: $5.95 |
| 39 |
736-05255 |
THRUST WASHER .635x1.750x0.055 Price: $1.70 |
| 40 |
736-3040 |
HUB CAP WASHER .406 x 1.92 x .060 Price: $5.52 |
| 41 |
736-3052 |
FLAT WASHER .406ID X1.0 OD Price: $4.02 |
| 42 |
738-04091A |
SHOULDER SCREW .43X.29X5/16-18 TT Price: $3.50 |
| 43 |
738-0966A |
SHOULDER SCREW .50X.925 Price: $4.08 |
| 44 |
941-0563 |
BALL BEARING W/RET Price: $33.84 |
| 45 |
02005018P-X |
BLADE- HI LIFT 19.0 XTREME Price: $23.03 |
| 45 |
742P04416-L |
LOW-LIFT 19"BLADE (54"DECK) Price: $26.49 |
| 46 |
748-05174A |
SPINDLE SPACER (UPPER) This part replaces 748-05174. Price: $9.81 |
| 47 |
750-05392 |
SPACER - .385 ID x 1.500DX .585 L Price: $11.31 |
| 48 |
750-05673 |
SPACER Price: $7.49 |
| 49 |
750-06192A |
SPACER Price: $3.70 |
| 50 |
750-06516 |
WHEEL SPACER Price: $9.96 |
| 51 |
750-06708 |
SPACER (.792 x 1.20 x .380) Price: $4.21 |
| 52 |
750-06716 |
SPACER 0.63 x 1.00 x 2.01 Price: $5.78 |
| 53 |
750-06749A |
SPINDLE SPACER (LOWER) This part replaces 750-06749. Price: $11.42 |
| 54 |
750-3193 |
WHEEL SPACER .38ID x 3.04LG Price: $16.22 |
| 55 |
954-05813 |
DECK BELT B SEC x 154 Price: $138.50 |
| 56 |
756-04487 |
IDLER PULLEY Price: $58.67 |
| 57 |
756-05257 |
IDLER PULLEY (6.00" DIA) Price: $70.26 |
