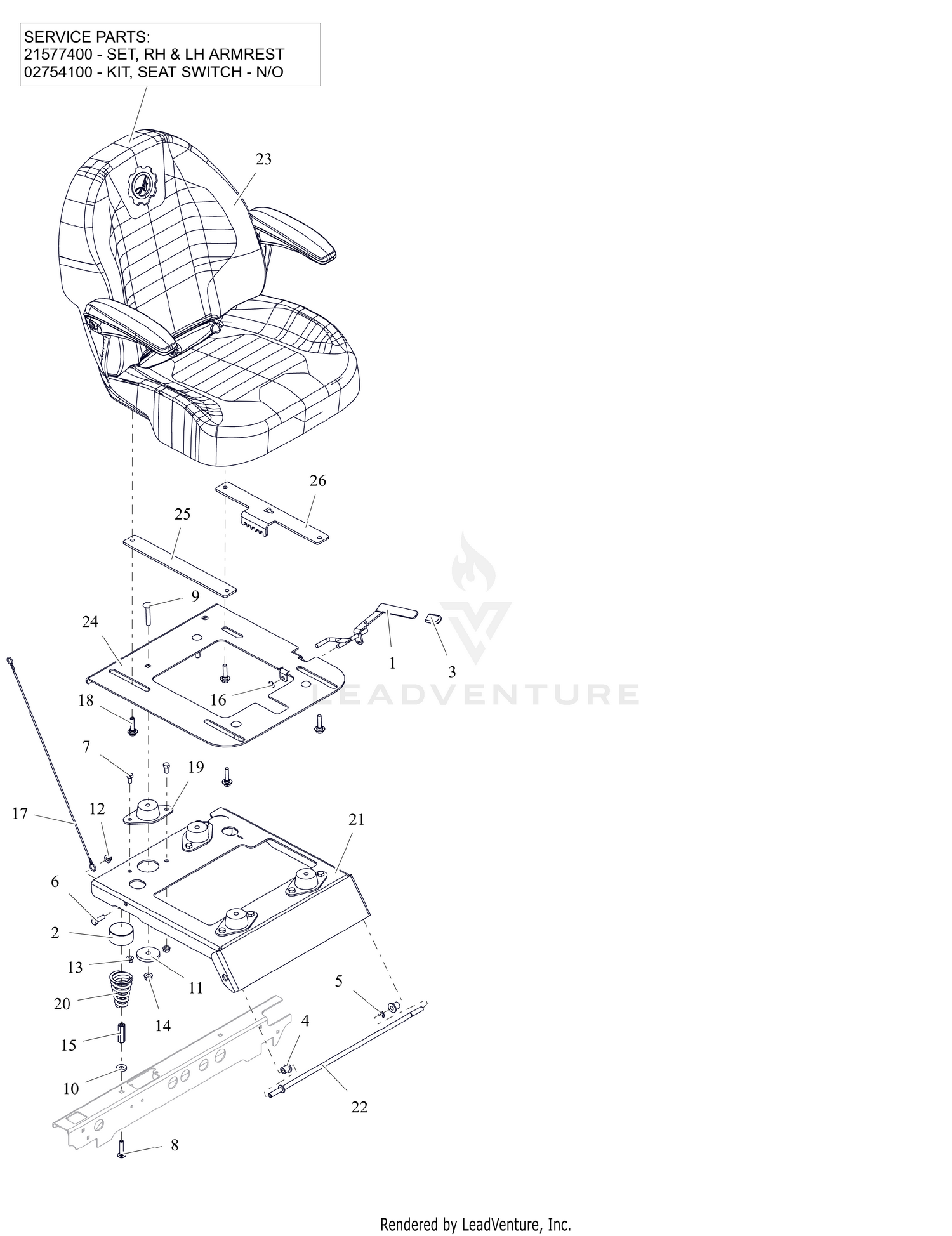

| Ref | Part Number | Description |
|---|
| 1 |
05015251 |
WLDMT, SEAT SLIDE LEVER Price: $19.45 |
| 2 |
00337700 |
HUB CAP Price: $2.45 |
| 3 |
04396600 |
GRIP, SEAT LEVER, GREY Price: $2.45 |
| 4 |
05501231 |
BSHG-FLG .38X.580X.667X.750 Price: $2.45 |
| 5 |
05710600 |
RG-RTNG-EXT .375X.035 TYP E Price: $0.95 |
| 6 |
05901701 |
BLT,HEX .31-18X1.00 G5 ZCC Price: $1.45 |
| 7 |
05901832 |
BLT, HEX .31-18X.625 G5 ZCC Price: $1.45 |
| 8 |
06200233 |
BLT,RHSN .31-18X1.50 G5 ZCC Price: $1.45 |
| 9 |
06200323 |
BLT,RHSSN.375-16X2.00 G5 ZCC Price: $2.45 |
| 10 |
06401103 |
WSHR, FLT .328X.870X.179 ZCC Price: $2.95 |
| 11 |
06401212 |
WSHR-FL-STL 0.406X2X0.25 ZCC Price: $4.45 |
| 12 |
06500809 |
NUT,LK-NYL-FLG .31-18 G5ZC120 Price: $1.45 |
| 13 |
06500840 |
NUT,LK-CTR-FLG .31-18 GF ZCC Price: $0.95 |
| 14 |
06500901 |
NUT-LK-CTR-FLG .375-16 GF ZCC Price: $0.95 |
| 15 |
06500927 |
NUT, COUPLING .31-18X1.75 ZCC Price: $3.95 |
| 16 |
06514900 |
NUT-PUSH .312 Price: $0.45 |
| 17 |
06900623 |
LANYARD, SEAT CABLE .093X19.5 Price: $10.95 |
| 18 |
07001929 |
BOLT SHLDR .31-18 X .175 Price: $2.45 |
| 19 |
07500237 |
MOUNT, FAIL-SAFE COMPRESSION Price: Call Us |
| 20 |
08300021 |
SPRING, SEAT Price: $18.45 |
| 21 |
09158141 |
PLATE- SEAT (ISO MOUNT) Price: $81.95 |
| 22 |
09448000 |
ROD- SEAT PIVOT Price: $10.95 |
| 23 |
09476100 |
SEAT- IKON SPECIAL EDITION Price: $356.95 |
| 24 |
09654851 |
PLATE- SEAT ISO - LIMITED Price: $71.45 |
| 25 |
09654951 |
PLATE- SEAT SLIDE - LIMITED Price: $15.45 |
