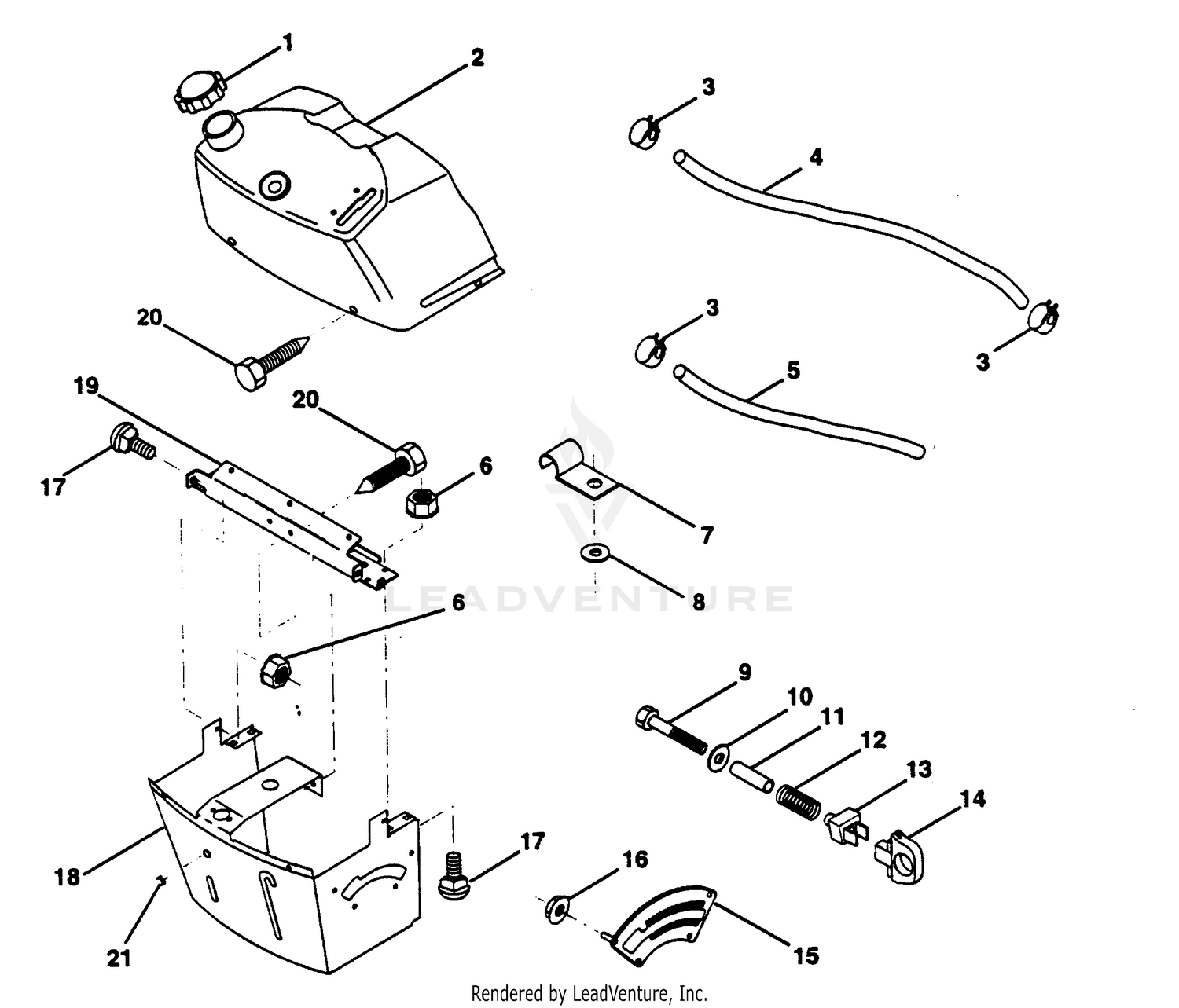

| Ref | Part Number | Description |
|---|
| 1 |
108-6715 |
GAUGE BAR ASM Price: $148.12 |
| 1 |
581075501 |
CAP.2.25'.VENTED.RATCHET.EPA This part replaces 532141523. Price: $14.99 |
| 2 |
29-9100 |
BRUSH AND HANDLE ASM Price: $58.15 |
| 2 |
532138393 |
Assembly, Dash & Fuel Tank (AYP part number) Price: $124.58 |
| 3 |
532123487 |
Clamp, Hose (AYP part number) Price: $3.99 |
| 4 |
115-0803 |
ROLLER REBUILD TOOL KIT Price: $122.41 |
| 4 |
532008544 |
Line, Fuel (AYP part number) Price: $2.99 |
| 5 |
117-0975 |
TOOL-INSTALLATION, REEL BEARING Price: $30.44 |
| 5 |
532008548 |
Line, Fuel (AYP part number) Price: $2.99 |
| 6 |
125-5610 |
PAPER-REEL, TORO (10 PACK) Price: $6.02 |
| 6 |
873680400 |
NUT.CROWNLOCK.1/4 This part replaces 873510400. Price: $2.99 |
| 7 |
140-5531 |
SHIM-TORO REEL (.002IN) This part replaces 125-5611. Price: $6.67 |
| 7 |
532002751 |
Clip, Insulated (AYP part number) This part replaces 532124996. Price: $2.42 |
| 8 |
131-6828 |
INDICATOR-ANGLE Price: $69.10 |
| 8 |
531003379 |
WASHER This part replaces 819091216. Price: $2.99 |
| 9 |
874760432 |
Bolt, Fin. Hex 1/4-20 x 2 (AYP part number) This part replaces 874760428. Price: $3.99 |
| 10 |
819091416 |
WASHER This part replaces 819091413. Price: $3.99 |
| 11 |
532121249 |
Spacer, Split (AYP part number) Price: $3.99 |
| 12 |
532003720 |
Spring (AYP part number) Price: $3.99 |
| 13 |
532126450 |
Clip, Height Adjustment (AYP part number) Price: $2.99 |
| 14 |
532126115 |
Knob, Height Stop (AYP part number) Price: $3.99 |
| 15 |
532122023 |
Adjustment, Quadrant Height (AYP part number) Price: $9.99 |
| 16 |
532124346 |
Nut, Self-Threading 3/16-18 (AYP part number) Price: $3.99 |
| 17 |
872110404 |
Bolt, Carriage 1/4-20 x 1/2 Gr. 5 (AYP part number) Price: $3.99 |
| 18 |
532130745 |
Support Assembly, Dash (AYP part number) Price: $23.04 |
| 19 |
532134744 |
Brace, Cross (AYP part number) Price: $9.17 |
| 20 |
817060408 |
Screw, Self-Tapping 1/4-20 x 1/2 (AYP part number) Price: $3.99 |
