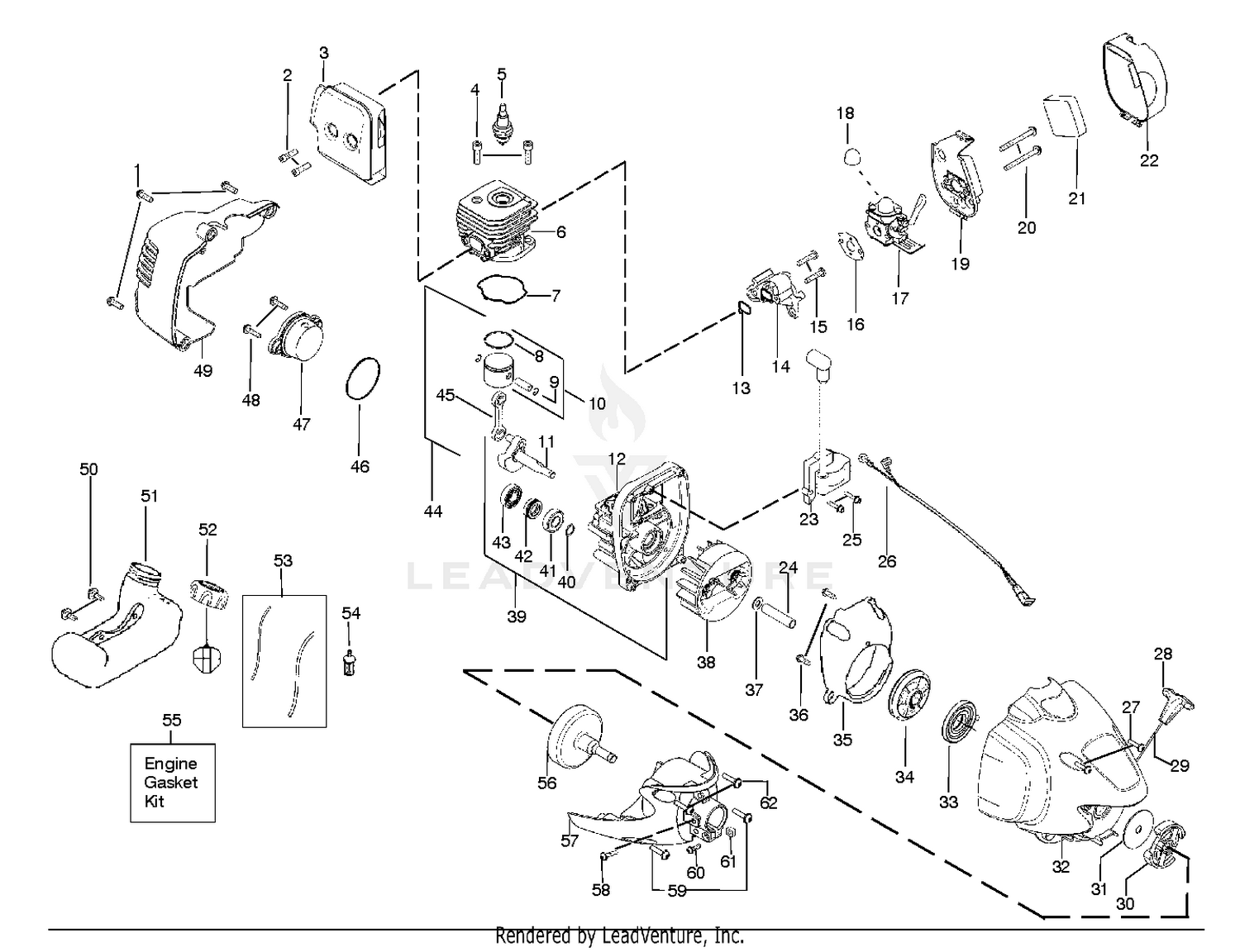

ENGINE
Parts (53)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 323-6 | SCREW-HH Price: $0.66 |
| 1 | 530015880 | SCREW Price: $1.99 |
| 2 | 3256-24 | WASHER-FLAT Price: $0.28 |
| 2 | 530058982 | BOLT MUFFLER Price: $1.99 |
| 3 | 3253-21 | WASHER-LOCK Price: $0.28 |
| 4 | 3296-39 | NUT-LOCK, NI Price: $2.29 |
| 4 | 530015953 | SCREW Price: $1.99 |
| 5 | 234010 | Mulcher Screen Price: Call Us |
| 6 | 530012541 | CYLINDER MACHINED 25CC LO Price: $11.99 |
| 8 | 545154001 | RING PISTON Price: $1.99 |
| 9 | 530015162 | WRIST PIN RET. Price: $1.99 |
| 11 | 545145802 | ASSY CRANKSHAFT This part replaces 530012579. Price: $17.99 |
| 14 | 530057547 | ADAPTOR CARBURETOR Price: $7.99 |
| 15 | 530016441 | SCREW Price: $1.99 |
| 17 | 530071811 | KIT CARB ASSY Price: $32.99 |
| 18 | 530058709 | PURGE BULB ZAMA Price: $4.99 |
| 19 | 545077501 | BASE AIR BOX PP GOLD Price: $7.99 |
| 20 | 530016429 | SCREW Price: $1.99 |
| 21 | 530036575 | AIR FILTER Price: $1.99 |
| 22 | 530057545 | COVER AIR BOX FE Price: $3.99 |
| 23 | 530035505 | MODULE Price: $29.99 |
| 24 | 530059758 | SPACER FLYWHEEL Price: $4.99 |
| 25 | 530016357 | SCREW Price: $1.99 |
| 26 | 545015601 | ASSY WIRE SWITCH Price: $11.99 |
| 27 | 530016386 | SCREW Price: $5.99 |
| 28 | 530054834 | HANDLE STARTER BLK Price: $1.99 |
| 29 | 545050409 | KIT ROPE Price: $4.99 |
| 30 | 530055122 | ASSEMBLY CLUTCH Price: $8.99 |
| 31 | 530094189 | WASHER-CLUTCH Price: $2.99 |
| 32 | 545016004 | HSG FAN W/EYELET PP GOLD Price: $17.99 |
| 33 | 545008014 | KIT STARTER SPRING This part replaces 545054901. Price: $3.99 |
| 34 | 545050407 | KIT STARTER PULLEY Price: $11.99 |
| 35 | 545080601 | BAFFLE FAN Price: $6.99 |
| 36 | 530015880 | SCREW Price: $1.99 |
| 37 | 530016463 | WASHER CLUTCH Price: $1.99 |
| 38 | 530039243 | ASSY FLYWHEEL Price: $27.99 |
| 40 | 530015941 | RETAINING RING Price: $1.99 |
| 41 | 530055728 | OUTER BEARING Price: $6.99 |
| 42 | 530019264 | SEAL Price: $2.99 |
| 43 | 530032125 | BEARING Price: $11.99 |
| 45 | 530049817 | CONNECTING ROD ASSY This part replaces 530069945. Price: $6.99 |
| 47 | 530057954 | ASSY REAR PLUG Price: $3.99 |
| 48 | 530016386 | SCREW Price: $5.99 |
| 49 | 530057539 | SHROUD REAR BLACK Price: $7.99 |
| 50 | 530016445 | SCREW FUEL TANK RETAINER Price: $1.99 |
| 51 | 578943002 | ASSY FUEL TANK LOW PERM Price: $14.99 |
| 52 | 578931603 | FUEL CAP ASSY Price: $3.99 |
| 54 | 530095646 | FUEL PICK-UP ASSY Price: $2.99 |
| 56 | 530150247 | ASSY CLUTCH DRUM W/ADPT Price: $17.99 |
| 58 | 530016319 | SCREW Price: $1.99 |
| 59 | 530015772 | SCREW-10-24 X 1" (TAP.) Price: $1.99 |
| 60 | 530016381 | SCREW 12-24 X 5/8 Price: $2.99 |
| 61 | 530016382 | NUT SQUARE 12-24 Price: $2.99 |
