| Ref | Part Number | Description |
|---|
| 1 |
3249-11 |
SCREW-MACHINE Price: $0.54 |
| 2 |
29-6163 |
SWITCH-MICRO Price: $91.23 |
| 3 |
29-6120-03 |
PUMP PLATE ASM This part replaces 29-6120. Price: $93.02 |
| 4 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 5 |
251-259 |
BEARING-BALL Price: $13.67 |
| 6 |
3210-7 |
SCREW-HH Price: $0.61 |
| 7 |
29-6170 |
EXTENDED LEAF SPRING ASM Price: $45.56 |
| 8 |
322-17 |
SCREW-HH Price: $2.62 |
| 9 |
3219-2 |
NUT-HEX Price: $0.37 |
| 10 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 11 |
32121-6 |
PIN-ROLL, SLOTTED Price: $0.28 |
| 12 |
340-77 |
FITTING-ELBOW, 90 DEG Price: $24.95 |
| 13 |
340-99 |
FITTING-HYD, 90 DEG Price: $32.27 |
| 14 |
110-9695 |
HUB-PUMP This part replaces 33-4380. Price: $55.09 |
| 15 |
3257-32 |
KEY-WOODRUFF Price: $2.52 |
| 16 |
3241-5 |
SCREW-SET Price: $0.61 |
| 17 |
115-4523 |
COUPLING-RUBBER This part replaces 44-2230. Price: $52.81 |
| 18 |
46-6390-03 |
COUPLING-DRIVE ASM This part replaces 46-6390. Price: $80.79 |
| 19 |
32152-1 |
NUT-LOCK, CONE Price: $1.49 |
| 20 |
125-9249 |
SPACER-COUPLER, RUBBER This part replaces 27-6600. Price: $2.15 |
| 21 |
322-6 |
SCREW-HH Price: $0.45 |
| 22 |
27-6590 |
SPACER-COUPLING, RUBBER Price: $13.38 |
| 23 |
3256-3 |
WASHER-FLAT Price: $0.49 |
| 24 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 25 |
322-8 |
SCREW-HH Price: $1.26 |
| 26 |
321-2 |
SCREW-HH Price: $2.79 |
| 27 |
321-4 |
SCREW-HH Price: $0.99 |
| 28 |
54-9300-03 |
COVER-SHAFT, PUMP This part replaces 54-9300. Price: $31.70 |
| 29 |
54-9290 |
BRACKET-MOUNTING Price: $16.99 |
| 30 |
237-80 |
O-RING Price: $6.10 |
| 31 |
68-8660 |
FITTING-HYD, 90 DEG Price: $181.88 |
| 32 |
237-81 |
O-RING Price: $2.76 |
| 33 |
68-8990 |
HEAD-FILTER Price: $153.83 |
| 34 |
67-8110 |
CARTRIDGE-FILTER, OIL Price: $24.99 |
| 35 |
353-987 |
FITTING-ELBOW, 90 Price: $74.72 |
| 36 |
2412-34 |
CLAMP-HOSE Price: $2.14 |
| 37 |
68-9650 |
HOSE-AXLE Price: $30.32 |
| 38 |
70-2620 |
FITTING-HYD, 90 DEG Price: $116.72 |
| 39 |
323-7 |
SCREW-HH Price: $0.65 |
| 40 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 41 |
353-508 |
PLUG-HH Price: $7.96 |
| 42 |
99-5697 |
TRANSMISSION ASM This part replaces 71-4370. Price: $4,087.55 |
| 43 |
32120-72 |
RING-SNAP Price: $2.09 |
| 44 |
86-7220 |
GEAR-PINION This part replaces 23-4810. Price: $81.33 |
| 45 |
41-8760 |
GASKET Price: $5.99 |
| 46 |
110-9650 |
LEAF SPRING ASM This part replaces 29-6150. Price: $33.06 |
| 47 |
321-4 |
SCREW-HH Price: $0.99 |
| 48 |
3217-16 |
NUT-HEX Price: $0.25 |
| 49 |
3254-9 |
WASHER-LOCK, INTERNAL Price: $0.25 |
| 50 |
3255-7 |
WASHER-LOCK/EXT Price: $1.39 |
| 51 |
28-9570-03 |
LEVER-PUMP This part replaces 28-9570. Price: $264.06 |
| 52 |
49-2040 |
SCREW-HWHTF This part replaces 11-9760. Price: $1.99 |
| 53 |
3256-6 |
WASHER-FLAT Price: $0.34 |
| 54 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 55 |
32121-24 |
PIN-SPRING Price: $0.95 |
| 56 |
46-8810 |
STOP-SPRING, LEAF Price: $9.17 |
| 57 |
237-42 |
O-RING Price: $2.78 |
| 58 |
237-22 |
O-RING Price: $2.43 |

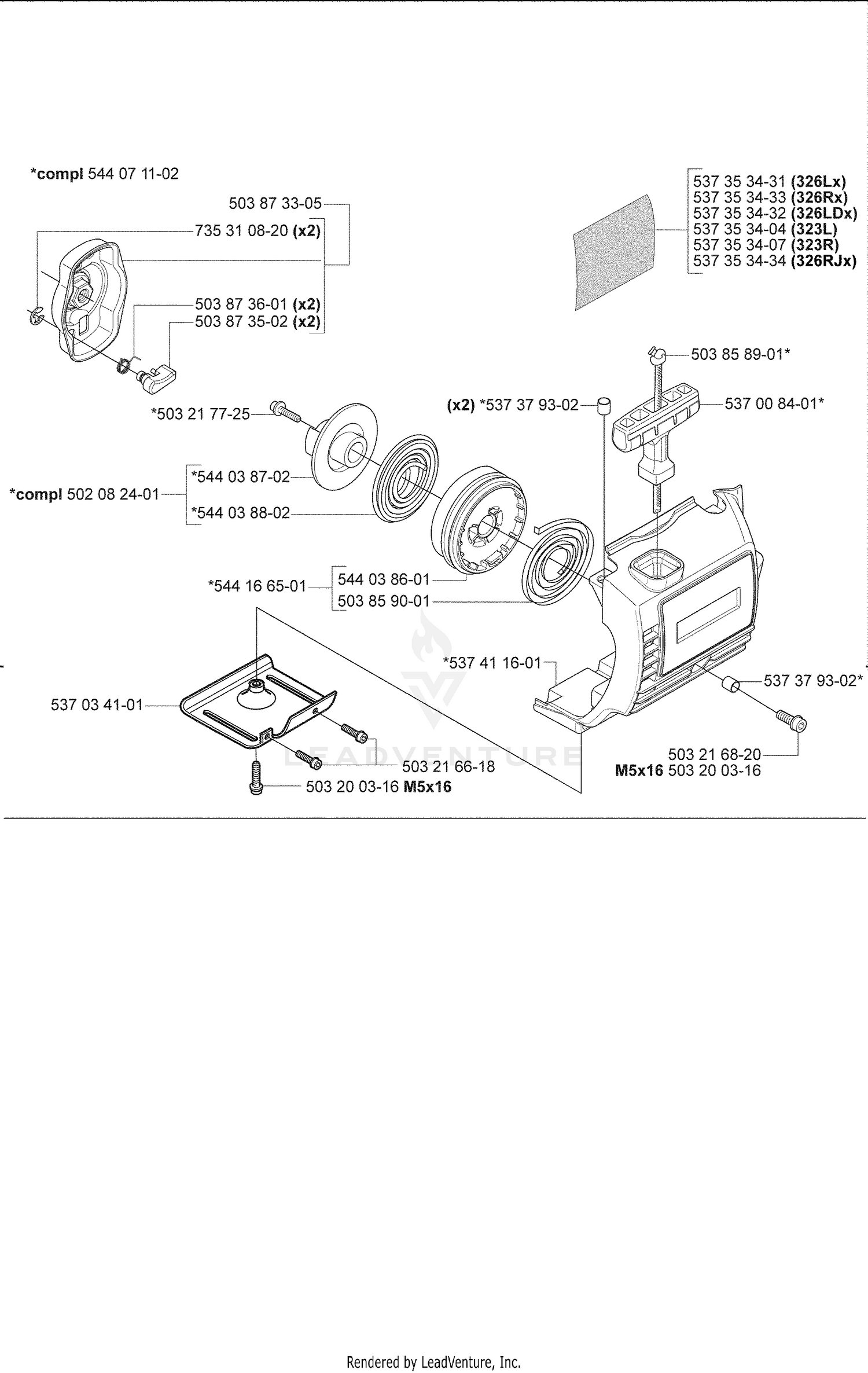

| 503200316 |
503200316 |
SCREW Price: $3.99 |
| 503216618 |
503216618 |
SCREW Price: $3.99 |
| 503216820 |
503216220 |
SCREW W/ LOCKING FLUID This part replaces 503216820. Price: $3.99 |
| 503217725 |
503217725 |
SCREW Price: $2.99 |
| 503858901 |
503858901 |
STARTER ROPE Price: $8.99 |
| 503859001 |
503859001 |
SPRING Price: $12.99 |
| 503873305 |
503873305 |
STARTER PAWL BRIDGE Price: $22.99 |
| 503873502 |
544011401 |
STARTER PAWL This part replaces 503873502. Price: $9.99 |
| 503873601 |
503873601 |
SPRING Price: $3.99 |
| 537008401 |
537008401 |
STARTER HANDLE Price: $9.99 |
| 537034101 |
537034101 |
PLATE Price: $17.99 |
| 537353404 |
537353404 |
DECAL Price: $2.99 |
| 537353407 |
537353407 |
DECAL STARTER HOUSING Price: $3.99 |
| 537353431 |
537353431 |
DECAL Price: $2.99 |
| 537353432 |
537353432 |
DECAL DEVICE Price: $3.99 |
| 537353433 |
537353433 |
DECAL DEVICE Price: $3.99 |
| 537353434 |
537353434 |
DECAL, STARTER HOUSING Price: $0.99 |
| 537379302 |
537379302 |
SPACING SLEEVE Price: $4.99 |
| 537411601 |
537411602 |
STARTER HOUSING This part replaces 537411601. Price: $22.99 |
| 544038601 |
544038601 |
STARTER PULLEY Price: $5.99 |
| 544038702 |
579366201 |
PULLEY STARTER DRIVE This part replaces 544038702. Price: $5.99 |
| 544038802 |
544038802 |
SPRING - DRIVER Price: $5.99 |
| 544071102 |
544071103 |
STARTER ASSY This part replaces 544071102. Price: $54.99 |
| 544166501 |
544166501 |
STARTER PULLEY Price: $17.99 |
| 735310820 |
735310820 |
E-RING 4 Price: $2.99 |
