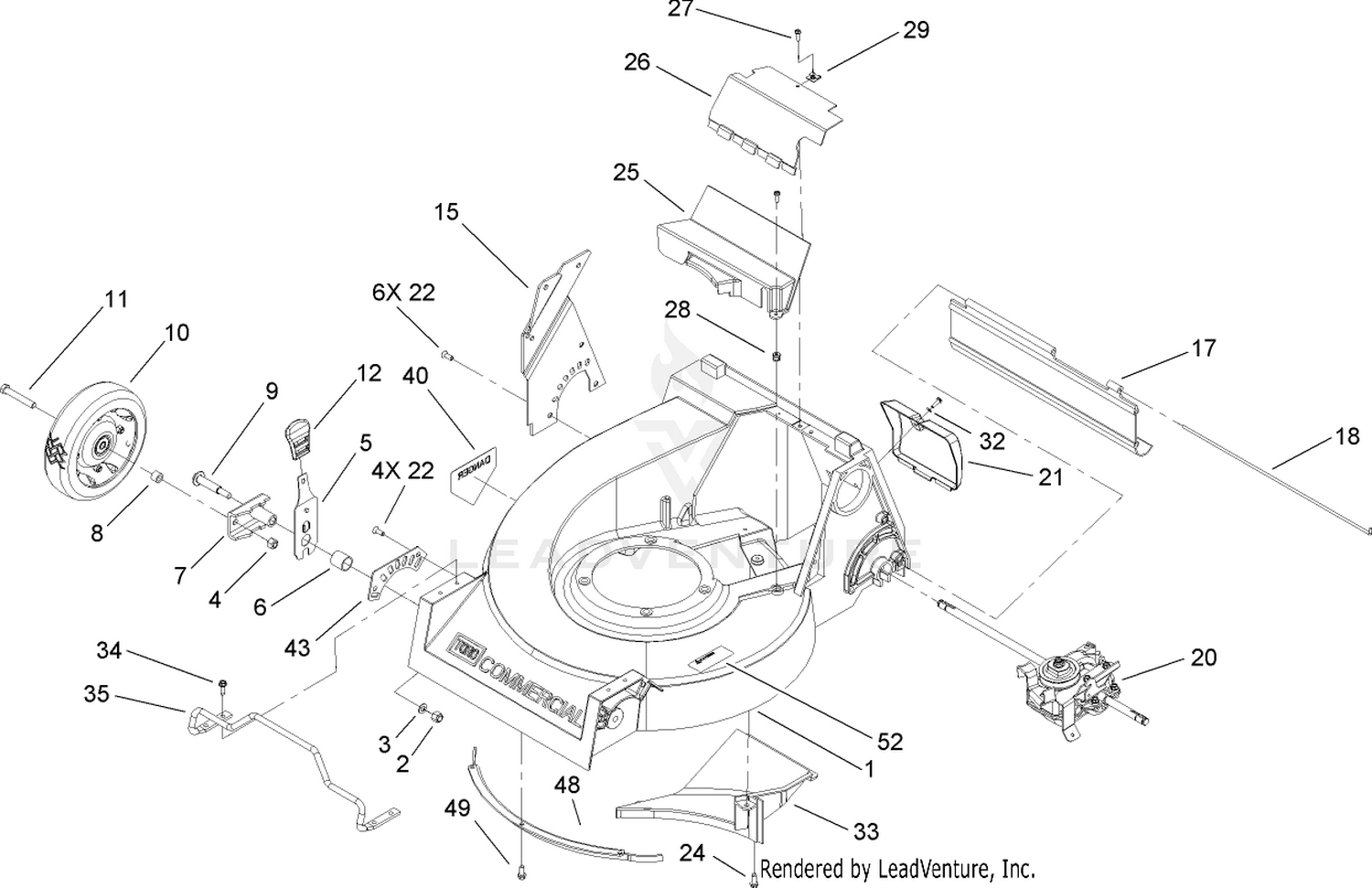

| Ref | Part Number | Description |
|---|
| 1 |
115-0992 |
DECK ASM This part replaces 107-4165-01. Price: $268.55 |
| 2 |
3296-6 |
NUT-LOCK Price: $1.49 |
| 3 |
40-1940 |
WASHER Price: $1.59 |
| 4 |
32152-2 |
NUT-LOCK, CONE Price: $1.79 |
| 5 |
115-0980 |
FRONT SPRING ARM ASM This part replaces 110-0537. Price: $9.84 |
| 6 |
75-5310 |
SPACER-BEARING Price: $4.41 |
| 7 |
61-8300 |
ARM-PIVOT, FRONT Price: $19.06 |
| 8 |
52-2480 |
SPACER-WHEEL Price: $5.89 |
| 9 |
114-3468 |
SCREW-SHOULDER This part replaces 27-6232. Price: $3.15 |
| 10 |
121-1380 |
WHEEL AND TIRE ASM This part replaces 100-2870. Price: $92.99 |
| 11 |
323-12 |
SCREW-HH Price: $1.14 |
| 12 |
110-0549 |
KNOB-HOC Price: $1.08 |
| 15 |
115-4462 |
KIT-SERVICE, 21" HI VAC REAR HOC This part replaces 107-4299-01. Price: $110.90 |
| 17 |
110-0509 |
SHEILD-TRAILING Price: $25.10 |
| 18 |
33-3202 |
ROD-SHIELD Price: $5.06 |
| 20 |
110-2100 |
GEAR CASE ASM Price: $628.68 |
| 21 |
107-4288 |
DOOR-ACCESS, REAR Price: $15.06 |
| 22 |
32144-17 |
SCREW-HH Price: $3.74 |
| 24 |
49-2040 |
SCREW-HWHTF Price: $1.99 |
| 25 |
107-4297 |
COVER-BELT, LOWER Price: $15.06 |
| 26 |
107-4298 |
COVER-BELT, UPPER Price: $15.06 |
| 27 |
32144-32 |
SCREW Price: $2.29 |
| 28 |
611380 |
NUT-CLIP Price: $2.05 |
| 29 |
3290-171 |
NUT-TYPE J Price: $3.74 |
| 32 |
3256-14 |
WASHER-FLAT Price: $0.39 |
| 33 |
115-0973 |
BAFFLE-CHUTE, FLOOR This part replaces 110-2108. Price: $18.85 |
| 34 |
49-2040 |
SCREW-HWHTF Price: $1.99 |
| 35 |
110-4876 |
GUARD-ENGINE Price: $32.66 |
| 40 |
93-6654 |
DECAL-DANGER Price: Call Us |
| 43 |
115-0961 |
PLATE-FRONT HOC, RIGHT This part replaces 108-2647. Price: $26.07 |
| 48 |
46-5400-03 |
SHIELD This part replaces 110-2148-01. Price: $37.33 |
| 49 |
32144-85 |
SCREW-HWH Price: $1.59 |
