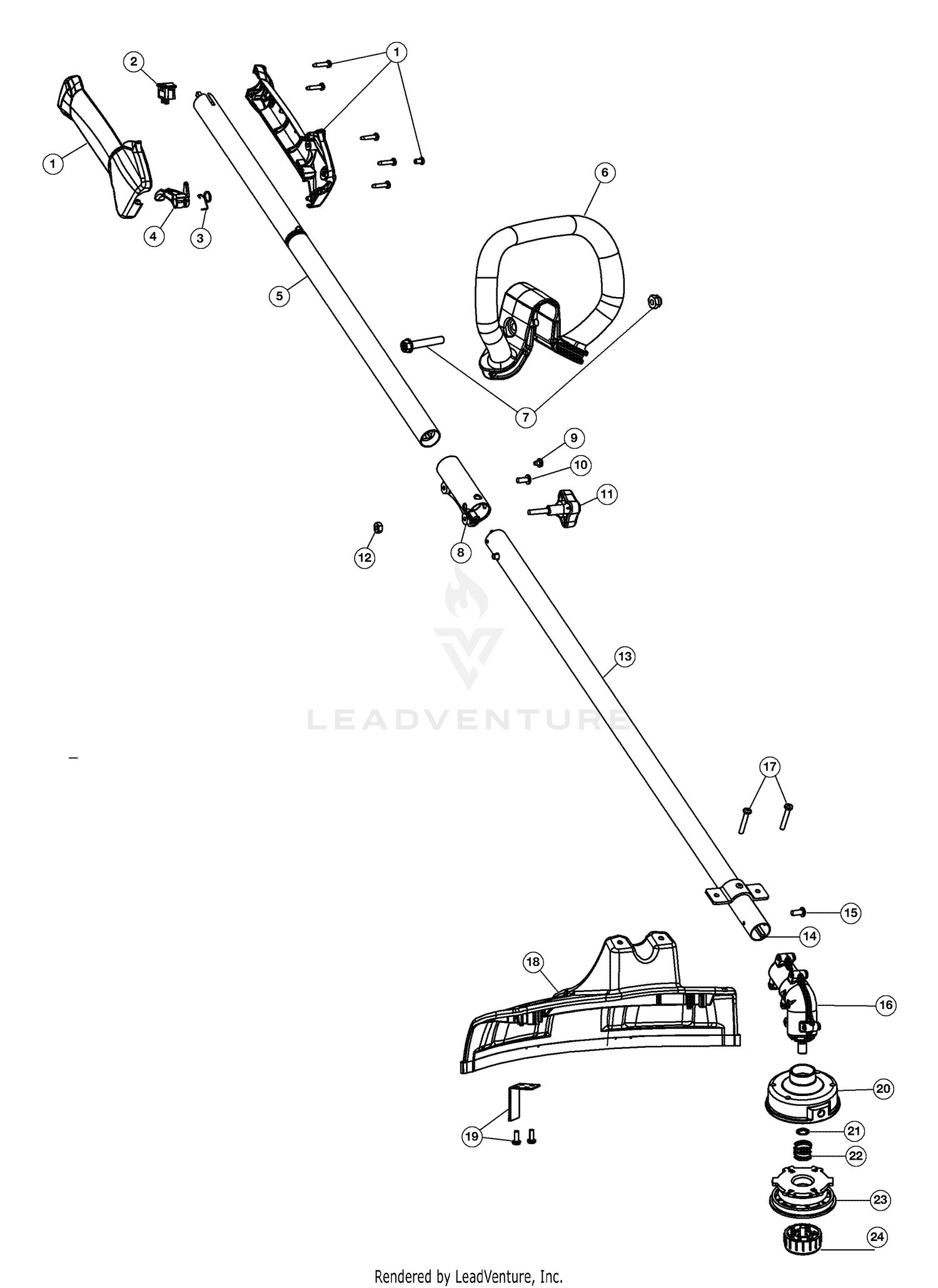

| Ref | Part Number | Description |
|---|
| 1 |
753-04234 |
Throttle Housing Assembly (Incl. 2-4) Price: $18.62 |
| 2 |
791-182405 |
Switch Price: $9.29 |
| 3 |
753-04119 |
Throttle Trigger Price: $6.56 |
| 4 |
791-182690 |
Throttle Trigger Spring Price: $7.01 |
| 5 |
753-04344 |
Upper Drive Shaft Housing Assembly Price: $79.57 |
| 6 |
753-08042 |
D-Handle (Incl. 7) Price: $4.35 |
| 7 |
753-06040 |
D-Handle Bolt Price: $6.01 |
| 8 |
753-1190 |
Split Boom Coupler (Incl. 9-12) Price: $20.56 |
| 9 |
791-182057 |
Screw Price: $3.93 |
| 10 |
791-181617 |
Bolt Price: $4.59 |
| 11 |
697-00661-9 |
CLICK LINK CLAMP Not Available This part replaces 791-181981. Price: |
| 12 |
712-04018A |
Knob Retaining Nut Price: $3.78 |
| 13 |
753-06139 |
Lower Drive Shaft Housing Assembly Price: $21.92 |
| 14 |
753-05267 |
LOWER DRIVE SHAFT Price: $37.46 |
| 15 |
7039 |
Anti-Rotation Screw Price: $4.11 |
| 16 |
753-06571 |
GEARBOX ASSEMBLY Not Available Price: |
| 17 |
753-06125 |
Shield Mounting Screws Price: $5.94 |
| 18 |
753-06123 |
Shield Assembly (Incl. 17 & 19) Price: $18.15 |
| 19 |
753-06126 |
Blade Assembly Price: $2.81 |
| 21 |
791-610660 |
Retainer Price: $4.29 |
| 22 |
791-610317B |
Spring Price: $9.47 |
| 23 |
753-1155 |
Inner Reel Price: $21.18 |
| 24 |
791-153066B |
Bump Knob Assembly Price: $11.65 |
