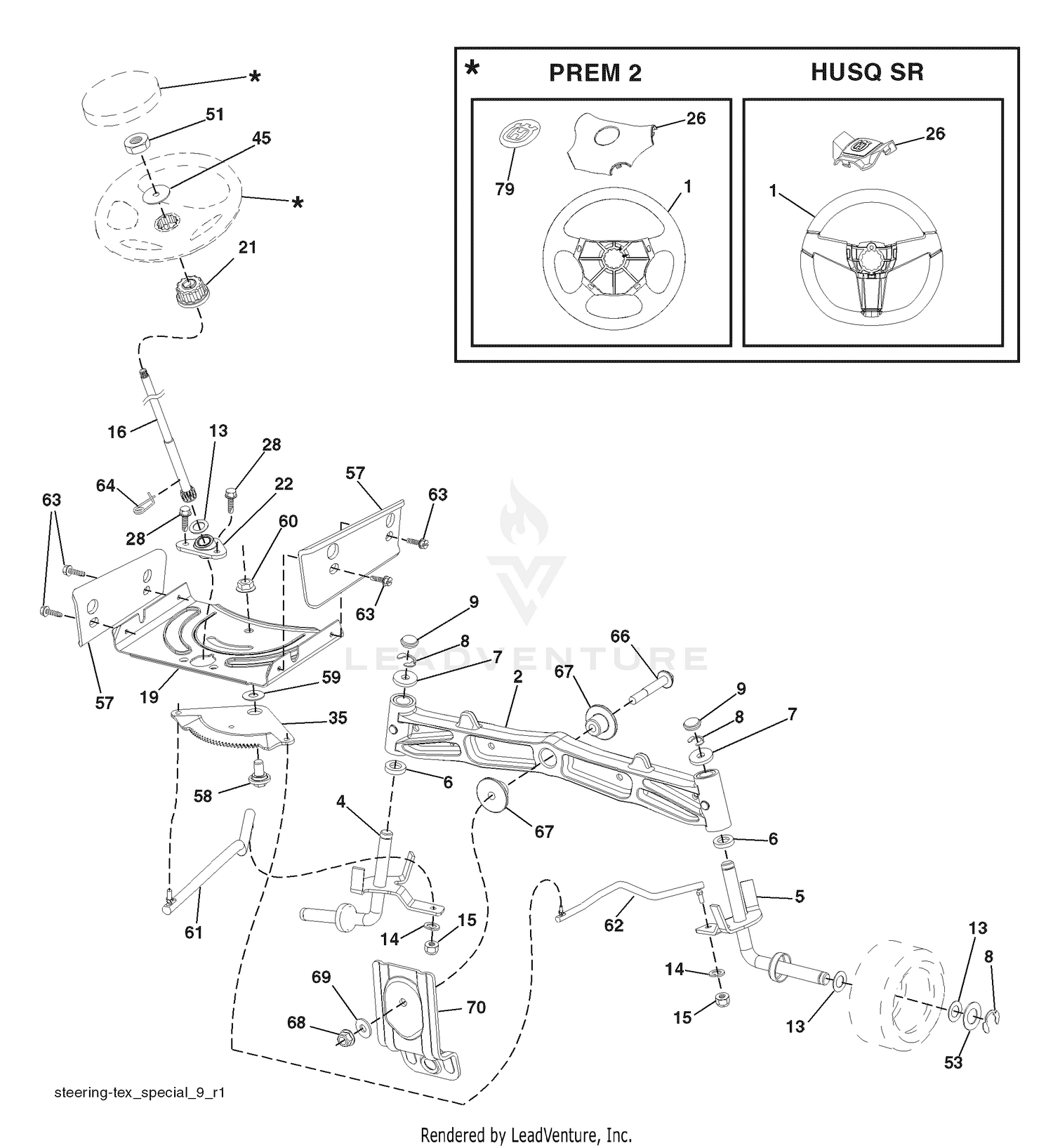

| Ref | Part Number | Description |
|---|
| 1 |
3230-3 |
SCREW-CARR Price: $0.53 |
| 1 |
532439740 |
WHEEL.STEER.HUSQ.SR.498.OVMLD This part replaces 532416480. Price: $69.99 |
| 2 |
532193542 |
AXLE.ASM.LT.CAST.LGHTWGHT This part replaces 532184706. Price: $119.99 |
| 2 |
83-7470 |
SHIM Price: $8.86 |
| 3 |
83-4970-03 |
BRACKET-BEARING This part replaces 83-4970. Price: $95.44 |
| 4 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 4 |
596873601 |
SPINDLE.WELDED.LH.15"TEX.X431 This part replaces 532403087. Price: $14.99 |
| 5 |
538691201 |
SPINDLE.WLDMT.RH.15INTIRE.X431 This part replaces 532403088. Price: $19.99 |
| 5 |
76-2460 |
BEARING ASM Price: $67.16 |
| 6 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 6 |
532006266 |
WASHER THRUST This part replaces 532124931. Price: $4.99 |
| 7 |
532121748 |
WASHER Price: $3.99 |
| 7 |
54-9090 |
YOKE-END Price: $202.33 |
| 8 |
54-9180 |
U-JOINT KIT Price: $58.18 |
| 8 |
812000029 |
RING CLIP Price: $3.99 |
| 9 |
532121232 |
CAP.SPINDLE.BLACK Price: $3.99 |
| 9 |
72-3420 |
YOKE AND SHAFT ASM Price: $278.13 |
| 10 |
302-58 |
FITTING-STRAIGHT Price: $0.81 |
| 11 |
83-5260 |
TUBE-YOKE, SLIP Price: $657.90 |
| 12 |
72-3440 |
SHAFT-YOKE Price: $743.98 |
| 13 |
253-155 |
SEAL-OIL Price: $14.36 |
| 13 |
532121749 |
WASHER Price: $2.99 |
| 14 |
596238701 |
Washers This part replaces 810040600. Price: $3.99 |
| 14 |
71-4590 |
WASHER-THRUST Price: $3.32 |
| 15 |
76-4690-03 |
COUPLING-AXLE This part replaces 76-4690. Price: $318.79 |
| 15 |
873540600 |
NUT CROWNLOCK 3/8-24 Price: $3.99 |
| 16 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 16 |
587738904 |
KIT.SRVC.STEERINGSHAFT.2HISHFT This part replaces 532408219. Price: $34.99 |
| 17 |
3274-64 |
SCREW-HSH Price: $1.02 |
| 18 |
32121-34 |
PIN-ROLL Price: $1.31 |
| 19 |
322-8 |
SCREW-HH Price: $1.26 |
| 19 |
531169101 |
SERVICE KIT PLATE PLATE.STEER. This part replaces 532194729. Price: $19.99 |
| 20 |
284-3 |
PLUG Price: $7.14 |
| 21 |
32151-87 |
RING-RETAINING Price: $1.22 |
| 21 |
587738905 |
KIT.SRVC.STEERINGSHAFT.ADAPTER This part replaces 532186737. Price: $7.99 |
| 22 |
587738901 |
KIT.SRVC.STEERINGSHAFT.LWRBSHG This part replaces 532194845. Price: $14.99 |
| 22 |
71-4580 |
BEARING Price: $80.51 |
| 23 |
71-4570-03 |
HOUSING-CLUTCH, ROLLER This part replaces 71-4570. Price: $367.36 |
| 24 |
3245-35 |
SCREW-SET, HSH Price: $0.41 |
| 25 |
251-77 |
COLLAR-LOCK, BEARING Price: $10.22 |
| 26 |
251-337 |
BEARING Price: $37.82 |
| 26 |
532439743 |
INSERT.CAP.WHL.STRG.HUSQ.PREM This part replaces 532415987. Price: $8.99 |
| 27 |
33114-025 |
SCREW-HH This part replaces 48-9460. Price: $0.70 |
| 28 |
3253-4 |
WASHER-LOCK This part replaces 42-9850. Price: $0.25 |
| 28 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 29 |
33094-00 |
WASHER-PLAIN This part replaces 48-8030. Price: $0.25 |
| 30 |
3274-34 |
SCREW-HSFH Price: $3.73 |
| 31 |
83-4900 |
DISCONTINUED Price: Call Us |
| 35 |
532194732 |
GEAR.SECTOR.PLATE.DDL. Price: $27.99 |
| 45 |
819183812 |
WASHER 9/16"ID, 2 3/8"OD Price: $7.99 |
| 51 |
873940800 |
NUT.HEX.1/2-20 Price: $3.99 |
| 53 |
532188967 |
WASHER.HARDENED Price: $3.99 |
| 57 |
532407465 |
BRACKET.UPSTOP.TEX Price: $5.99 |
| 58 |
532194747 |
BOLT.SHOULDER.SECTOR.P Price: $7.99 |
| 59 |
532194748 |
WASHER.THURST.SECTOR.S Price: $4.99 |
| 60 |
583612801 |
NUT.FLANGE.LOCK.5/8-11 This part replaces 873971000. Price: $3.99 |
| 61 |
597047802 |
Links This part replaces 532194740. Price: $11.99 |
| 62 |
597047902 |
Links This part replaces 532194741. Price: $11.99 |
| 63 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $4.99 |
| 64 |
532199849 |
RETAINER.CLIP.SPRING.S Price: $4.99 |
| 66 |
871020748 |
BOLT HEX FGHD 7/16-14 X 3 SERR Price: $4.99 |
| 67 |
529496302 |
BUSHING, AXLE This part replaces 532194737. Price: $2.99 |
| 68 |
873900700 |
NUT.LOCK.FLANGE.7/16 Price: $3.99 |
| 69 |
532199162 |
WASHER.1.5X.505X.118 Price: $4.99 |
