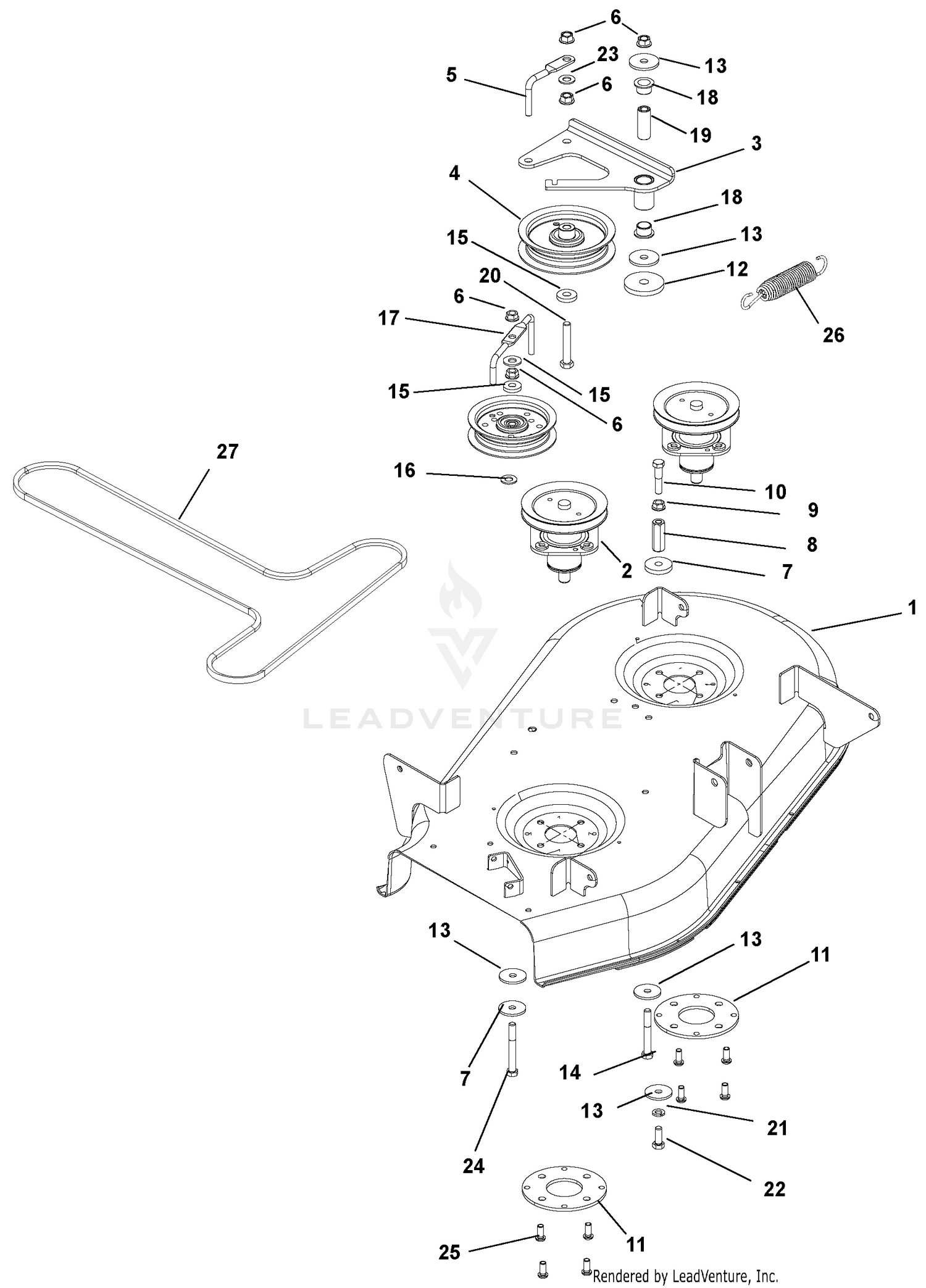

| Ref | Part Number | Description |
|---|
| 1 |
51527300 |
KIT, 34 GRAVELY CE DECK&DECALS Price: Call Us |
| 2 |
51519500 |
KIT, DECK SPINDLE ASM (34/50) Price: $139.95 |
| 3 |
04430851 |
IDLER ARM This part replaces 04430867. Price: $50.95 |
| 4 |
07350100 |
IDLER, FLAT - 4.06" X .75" This part replaces 07300039. Price: $43.95 |
| 5 |
03828800 |
WIREFORM-BELT FINGER This part replaces 03828853. Price: $8.45 |
| 6 |
06500822 |
NUT-LK-TOP-FLG .38-16 ZC120 This part replaces 06542000. Price: $0.95 |
| 7 |
06401110 |
WSHR, FLT .406X1.50X.245 ZCC This part replaces 06400006. Price: $3.95 |
| 8 |
06533500 |
NUT COUPLING .375-16X1.75 Price: $3.45 |
| 9 |
06500735 |
NUT- SPNLK-FLG .38-16 G5 ZCC This part replaces 06534900. Price: $1.45 |
| 10 |
05901809 |
BLT, HEX .38-16X1.75 G5 ZCC This part replaces 05958500. Price: $1.45 |
| 11 |
03839053 |
PLATE-REINF, SPINDLE Price: $20.45 |
| 12 |
06401111 |
WSHR, FLT .469X2.00X.250 ZCC This part replaces 06443600. Price: $6.95 |
| 13 |
06401106 |
WSHR, FLT .380X1.50X.125 ZCC This part replaces 06443400. Price: $3.45 |
| 14 |
05901814 |
BLT, HEX .38-16X3.00 G5 ZCC This part replaces 05957800. Price: $2.45 |
| 15 |
06401108 |
WSHR, FLT .406X1.00X.188 ZCC This part replaces 06444000. Price: $2.45 |
| 16 |
06401008 |
WSHR-FLT .438X1.00X.083 ZCC This part replaces 06435900. Price: $1.45 |
| 17 |
03974100 |
BELT FINGER This part replaces 03974153. Price: $10.45 |
| 18 |
05500907 |
BSHG-FLG, .625X.750X.500X1.00 Price: $5.95 |
| 19 |
03763400 |
SPACER, .375IDX.625ODX1.66 PM Price: $3.95 |
| 20 |
05901640 |
BLT,HEX .38-16X2.25 G5 ZCC This part replaces 05962900. Price: $3.95 |
| 21 |
06300116 |
WSHR-LK-REG .375X.094 ZCC This part replaces 06308800. Price: $0.95 |
| 22 |
05901711 |
BLT-HEX .38-16X1.00 G5 ZCC This part replaces 05948700. Price: $1.45 |
| 23 |
06401013 |
WSHR-FLT .406X.812X.065 ZCC This part replaces 06436200. Price: $0.95 |
| 24 |
05901611 |
BLT, HEX .38-16X2.75 G5 ZCC This part replaces 05961400. Price: $3.95 |
| 25 |
07400129 |
SCR,TAP .375-16X.75 HWH TR ZCC This part replaces 07415400. Price: $1.45 |
| 26 |
08320300 |
SG-TENS .135X.98X6.0 WLD 62 Price: $16.95 |
