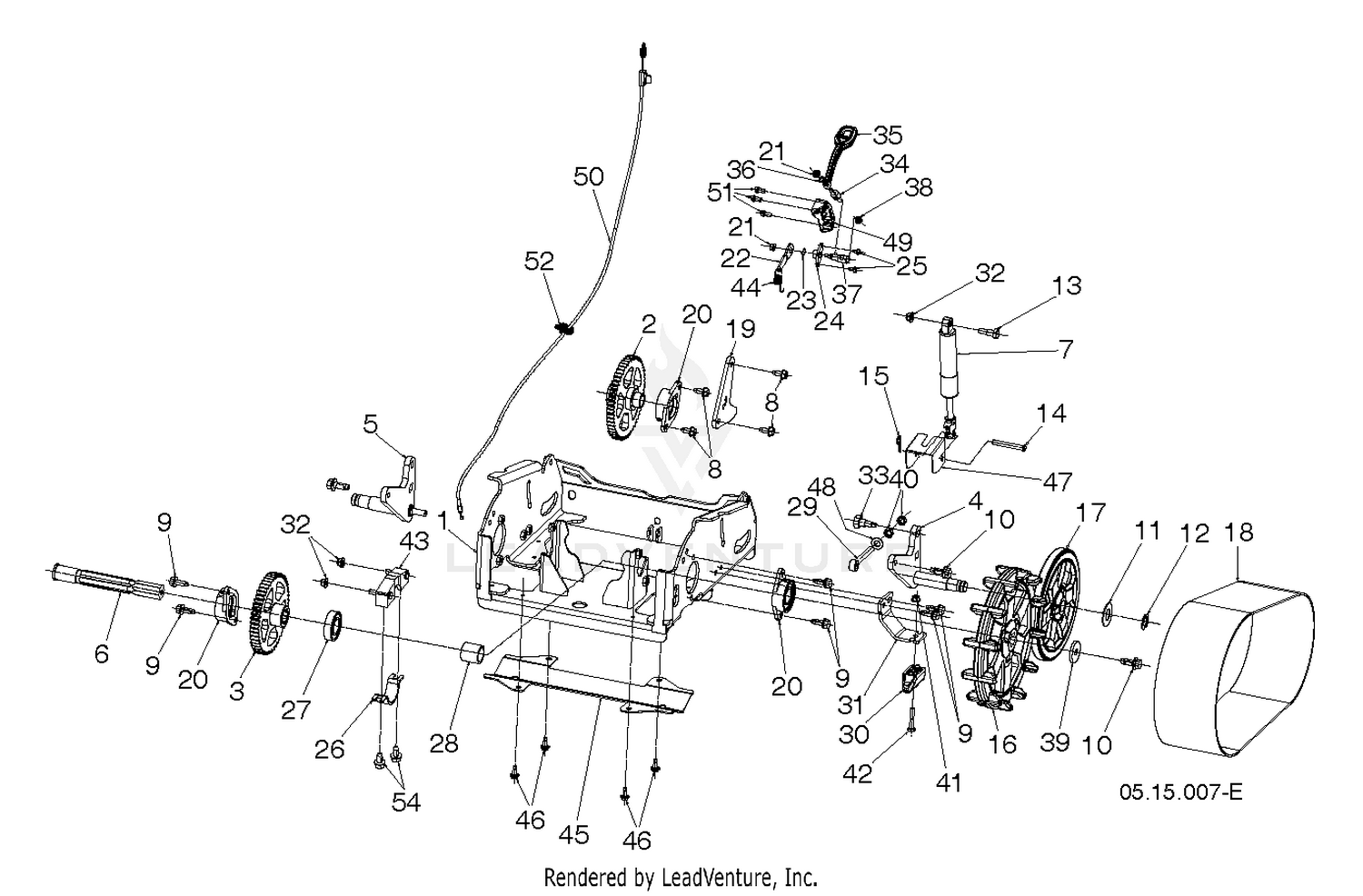

| Ref | Part Number | Description |
|---|
| 1 |
589330402 |
Frames Price: $129.99 |
| 2 |
593092101 |
GEAR TRACK TRANSMISSION Price: $59.99 |
| 3 |
589331801 |
GEAR TRACK Price: $54.99 |
| 4 |
589332401 |
ARM TRACK ADJUSTER WELDMENT LH Price: $27.99 |
| 5 |
589332402 |
ARM TRACK ADJUSTER WELDMENT RH Price: $27.99 |
| 6 |
589459501 |
AXLE TRACK HEX Price: $32.99 |
| 8 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 Price: $4.99 |
| 9 |
595517701 |
SCREW HEXAGON HEAD FLANGE 5/16 Price: $3.99 |
| 10 |
595517901 |
SCREW HEXAGON HEAD FLANGE 3/8- Price: $3.99 |
| 11 |
532188967 |
WASHER.HARDENED Price: $3.99 |
| 12 |
812000029 |
RING CLIP Price: $3.99 |
| 13 |
589353601 |
BOLT SHOULDER 10MM Price: $5.99 |
| 14 |
589353801 |
PIN 5/16 Price: $4.99 |
| 15 |
532004497 |
RETAINER M Price: $4.99 |
| 16 |
590554401 |
Sprockets Price: $79.99 |
| 17 |
589367801 |
Wheels Price: $54.99 |
| 18 |
589367501 |
Belts Price: $329.99 |
| 19 |
589793202 |
Brackets Price: $1.99 |
| 20 |
590000601 |
CARRIER BEARING Price: $32.99 |
| 21 |
589927001 |
NUT HEX; NYLON LOCKING; FLANGE Price: $1.99 |
| 22 |
597724402 |
Levers Price: $1.99 |
| 23 |
589746501 |
WASHER WAVE 3/8 Price: $5.99 |
| 24 |
589645301 |
BUSHING BUCKET HEIGHT ADJUSTER Price: $5.99 |
| 25 |
532700216 |
Screws Price: $1.99 |
| 26 |
590553701 |
MOUNT BEARING Price: $6.99 |
| 27 |
590553801 |
BEARING SEALED R16-2RS Price: $6.99 |
| 28 |
590553901 |
SPACER TRACK AXLE Price: $9.99 |
| 29 |
590554001 |
ROD END SOLID, 3/8 Price: $8.99 |
| 30 |
590554101 |
Guides Price: $11.99 |
| 31 |
590554202 |
Brackets Price: $7.99 |
| 32 |
594944401 |
NUT HEXAGON FLANGE 5/16-18 ST Price: $5.99 |
| 33 |
590554302 |
Bolts Price: $22.99 |
| 34 |
590594301 |
ROD LEVER CONTROL Price: $5.99 |
| 35 |
590594201 |
Levers Price: $14.99 |
| 36 |
590594501 |
DISC SPRING Price: $5.99 |
| 37 |
590594401 |
AXLE BUCKET HEIGHT CONTROL Price: $5.99 |
| 38 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 595086601. Price: $1.99 |
| 39 |
590698501 |
SPACER PLATE .38 X 1.5 Price: $5.99 |
| 40 |
596433501 |
NUT NUT.3/8-16.HEX.JAM.Z 3/8-1 Price: $2.99 |
| 41 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C Price: $1.99 |
| 42 |
874780424 |
Bolt Hex Fin 1/4-20 Unc x 1-1/2 Price: $3.99 |
| 43 |
599423101 |
Service Kit This part replaces 599347901. Price: $32.99 |
| 44 |
589481601 |
SPRING EXTENSION - DRIVE Price: $1.99 |
| 45 |
590849602 |
Covers Price: $22.99 |
| 46 |
585517801 |
HEX.WASHER.HEAD 1/4-20 X .65 Price: $2.99 |
| 47 |
590848404 |
COVER GAS STRUT X431 This part replaces 590848402. Price: $3.99 |
| 48 |
596565301 |
WASHER PLAIN WASHER 3/8 X 0.08 Price: $2.99 |
| 49 |
595080401 |
BRACKET BUCKET HEIGHT LEVER BU Price: $4.99 |
| 50 |
589745901 |
CABLE ASSY BUCKET HEIGHT ADJUS Price: $37.99 |
| 51 |
817411308 |
SCREW.HWH.13-16X.50 Price: $2.99 |
| 52 |
592857401 |
CABLE, 1/4 BLACK FIR TREE Price: $2.99 |
| 54 |
599351201 |
Hardware Price: $4.99 |
