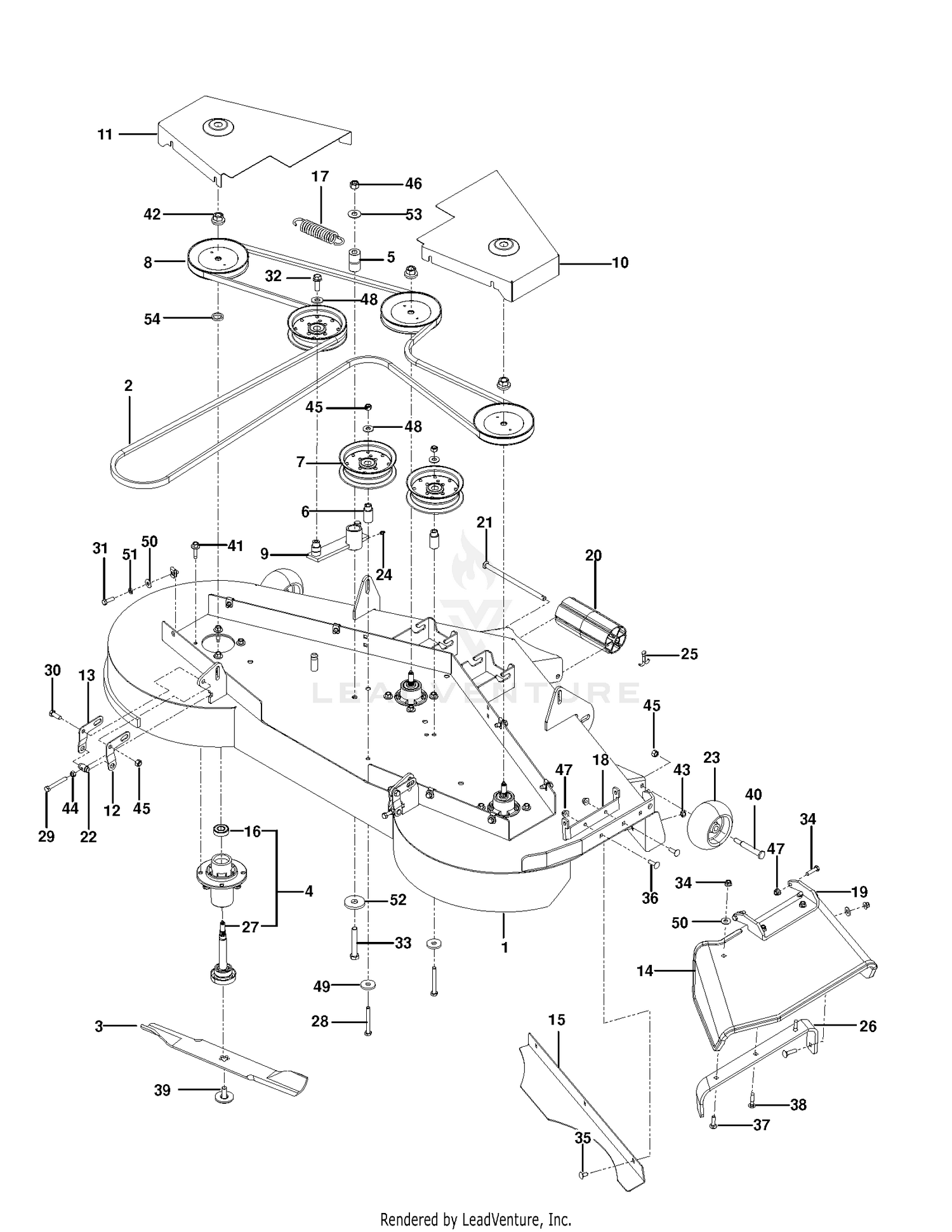

| Ref | Part Number | Description |
|---|
| 1 |
581505401 |
DECK SVC MZT 61 W/DECALS ORG Price: $1,899.99 |
| 1 |
98-3869-01 |
WEIGHT-REAR This part replaces 67-8960. Price: $461.69 |
| 2 |
32128-23 |
NUT-HF Price: $1.51 |
| 2 |
522795901 |
BELT, DECK This part replaces 539104335. Price: $79.99 |
| 3 |
3234-32 |
SCREW-HHF Price: $8.48 |
| 3 |
510417901 |
BLADE, 21" Price: $24.99 |
| 4 |
539131898 |
MANDREL ASM, CAST IRON Price: $69.99 |
| 5 |
539103427 |
PIVOT BUSHING Price: $7.99 |
| 5 |
67-8130 |
DISCONTINUED Price: Call Us |
| 6 |
32146-20 |
NUT-HEX Price: $3.23 |
| 6 |
596841501 |
Bushings This part replaces 539112169. Price: $7.99 |
| 7 |
589766102 |
Pulleys This part replaces 539132728. Price: $27.99 |
| 7 |
71-4540 |
WASHER-THRUST Price: $1.97 |
| 8 |
328-25 |
SCREW-HH Price: $4.07 |
| 8 |
539113300 |
PULLEY Price: $19.99 |
| 9 |
539112198 |
IDLER ARM Price: $27.99 |
| 9 |
67-9410 |
WASHER Price: $2.04 |
| 10 |
539113319 |
BELT SHIELD, RH ORANGE Price: $79.99 |
| 10 |
67-7250 |
SPACER-RING Price: $3.32 |
| 11 |
584385601 |
BELT.SHIELD.LH.ORANGE This part replaces 539113322. Price: $74.99 |
| 11 |
63-9240 |
DISCONTINUED Price: Call Us |
| 12 |
237-78 |
O-RING Price: $3.85 |
| 12 |
539131857 |
PITCH, ADJUST, RT Price: $29.99 |
| 13 |
340-54 |
ELBOW-45 DEG Price: $40.72 |
| 13 |
539131858 |
PITCH, ADJUST, LT Price: $34.99 |
| 14 |
237-22 |
O-RING Price: $2.43 |
| 14 |
539130901 |
CHUTE, RUBBER DISCHARGE 52/61" Price: $79.99 |
| 15 |
302-11 |
FITTING-LUBE, 45 DEG Price: $1.56 |
| 15 |
539113317 |
CONFINEMENT PLATE 61 Price: $34.99 |
| 16 |
32151-36 |
RING-RETAINING Price: $1.73 |
| 16 |
539112050 |
BEARING, BALL Price: $5.99 |
| 17 |
5-1226 |
WASHER Price: $3.90 |
| 17 |
539103256 |
SPRING Price: $9.99 |
| 18 |
10-8110 |
WASHER-THRUST Price: $1.09 |
| 18 |
581606104 |
BRACKET, CHUTE BLK This part replaces 581606102. Price: $14.99 |
| 19 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 19 |
539130917 |
PIVOT BRACKET - CHUTE Price: $129.99 |
| 20 |
532176066 |
NOSE ROLLER 48" Price: $11.99 |
| 21 |
594092501 |
Rods This part replaces 532179127. Price: $5.99 |
| 21 |
596565501 |
Nuts This part replaces 539131859. Price: $9.99 |
| 21 |
67-1750 |
BUSHING Price: $0.92 |
| 22 |
256-121 |
WASHER-THRUST Price: $4.55 |
| 22 |
532133957 |
WHEEL GAGE DONUT This part replaces 539107610. Price: $11.99 |
| 23 |
532133957 |
WHEEL GAGE DONUT This part replaces 539107610. Price: $11.99 |
| 23 |
63-9170-03 |
LH SPINDLE ASM This part replaces 63-9170. Price: $269.99 |
| 24 |
111512 |
DISCONTINUED This part replaces 10-6830. Price: Call Us |
| 24 |
596899901 |
GSPW Zerks This part replaces 539976998. Price: $2.99 |
| 25 |
21-2820 |
HUB Price: $269.34 |
| 25 |
596029501 |
Pins This part replaces 539990365. Price: $2.99 |
| 26 |
254-72 |
BEARING-CUP, TAPERED Price: $9.67 |
| 26 |
592964402 |
BRACKET.REINF.CHUTE.52/61.EDIP This part replaces 539130920. Price: $22.99 |
| 27 |
254-94 |
BEARING-CONE, TAPERED Price: $8.48 |
| 27 |
597023501 |
MANDRELS This part replaces 532187291. Price: $24.99 |
| 28 |
231-105 |
TIRE-RIBBED Price: $62.56 |
| 28 |
539101341 |
HCS 3/8C X 3 Price: $4.99 |
| 29 |
32136-5 |
NUT-HEX, SLOTTED Price: $2.71 |
| 29 |
596437101 |
Screws This part replaces 539108396. Price: $2.99 |
| 30 |
217-106 |
WHEEL-8 INCH Price: $141.58 |
| 30 |
596564401 |
Bolts This part replaces 539990563. Price: $3.99 |
| 31 |
139-2564 |
NUT-LUG This part replaces 242-50. Price: $0.99 |
| 31 |
596030501 |
SCREW HEXAGON HEAD SCREW 5/16- This part replaces 539976934. Price: $3.99 |
| 32 |
596583101 |
Screws This part replaces 539990582. Price: $3.99 |
| 33 |
3272-13 |
PIN-COTTER Price: $0.25 |
| 33 |
539103433 |
HCS 1/2C X 3 1/4 Price: $5.99 |
| 34 |
5108 |
VALVE This part replaces 232-31. Price: $6.29 |
| 34 |
539990627 |
HCS 5/16C X 1 1/4 Price: $3.99 |
| 35 |
3256-28 |
WASHER-FLAT Price: $0.48 |
| 35 |
596039401 |
BOLT ROUND HEAD SQUARE NECK BO This part replaces 539990799. Price: $2.99 |
| 36 |
253-129 |
SEAL Price: $21.73 |
| 36 |
596435701 |
Bolts This part replaces 539107271. Price: $2.99 |
| 37 |
32128-45 |
NUT-HHF Price: $7.67 |
| 37 |
596671401 |
Bolts This part replaces 539100472. Price: $3.99 |
| 38 |
596030801 |
Bolts This part replaces 539102933. Price: $3.99 |
| 38 |
63-9220 |
REAR STRG PIVOT WA Price: $434.12 |
| 39 |
21-0141 |
RH BALL JOINT ASM Price: $109.12 |
| 39 |
532193003 |
BOLT.WASHER.ASM.7/16-2 Price: $6.99 |
| 40 |
3220-5 |
NUT-JAM Price: $0.65 |
| 40 |
596434404 |
Bolts This part replaces 539107608. Price: $4.99 |
| 41 |
21-2000 |
TIE ROD-STEERING Price: $103.72 |
| 41 |
584953901 |
BOLT.HEX.WASHR.HED.313-18X1.19 This part replaces 539107630. Price: $3.99 |
| 42 |
3220-3 |
NUT-HJ Price: $0.28 |
| 42 |
596134801 |
Nuts This part replaces 539107590. Price: $1.00 |
| 43 |
596583702 |
Nuts This part replaces 539990717. Price: $2.99 |
| 44 |
256-242 |
BUSHING Price: $3.32 |
| 44 |
596582601 |
Nuts This part replaces 539990196. Price: $2.99 |
| 45 |
56-2460 |
WASHER-FLAT Price: $3.32 |
| 45 |
596240901 |
GSPW Nuts This part replaces 539976979. Price: $2.99 |
| 46 |
596135601 |
GSPW NUTS This part replaces 539101331. Price: $3.99 |
| 46 |
63-9180-03 |
RH SPINDLE ASM This part replaces 63-9180. Price: $269.99 |
| 47 |
3234-14 |
SCREW-HHF Price: $0.61 |
| 47 |
594944401 |
NUT HEXAGON FLANGE 5/16-18 ST This part replaces 539112899. Price: $5.99 |
| 48 |
596433701 |
GSPW Washers This part replaces 539990517. Price: $2.99 |
| 49 |
596770301 |
Washers This part replaces 539106504. Price: $4.99 |
| 50 |
596134901 |
GSPH This part replaces 539990692. Price: $2.99 |
| 51 |
596565001 |
Washers This part replaces 539109600. Price: $2.99 |
| 52 |
596437501 |
Washers This part replaces 539102243. Price: $8.99 |
| 53 |
595316401 |
Washers This part replaces 539990550. Price: $2.99 |
