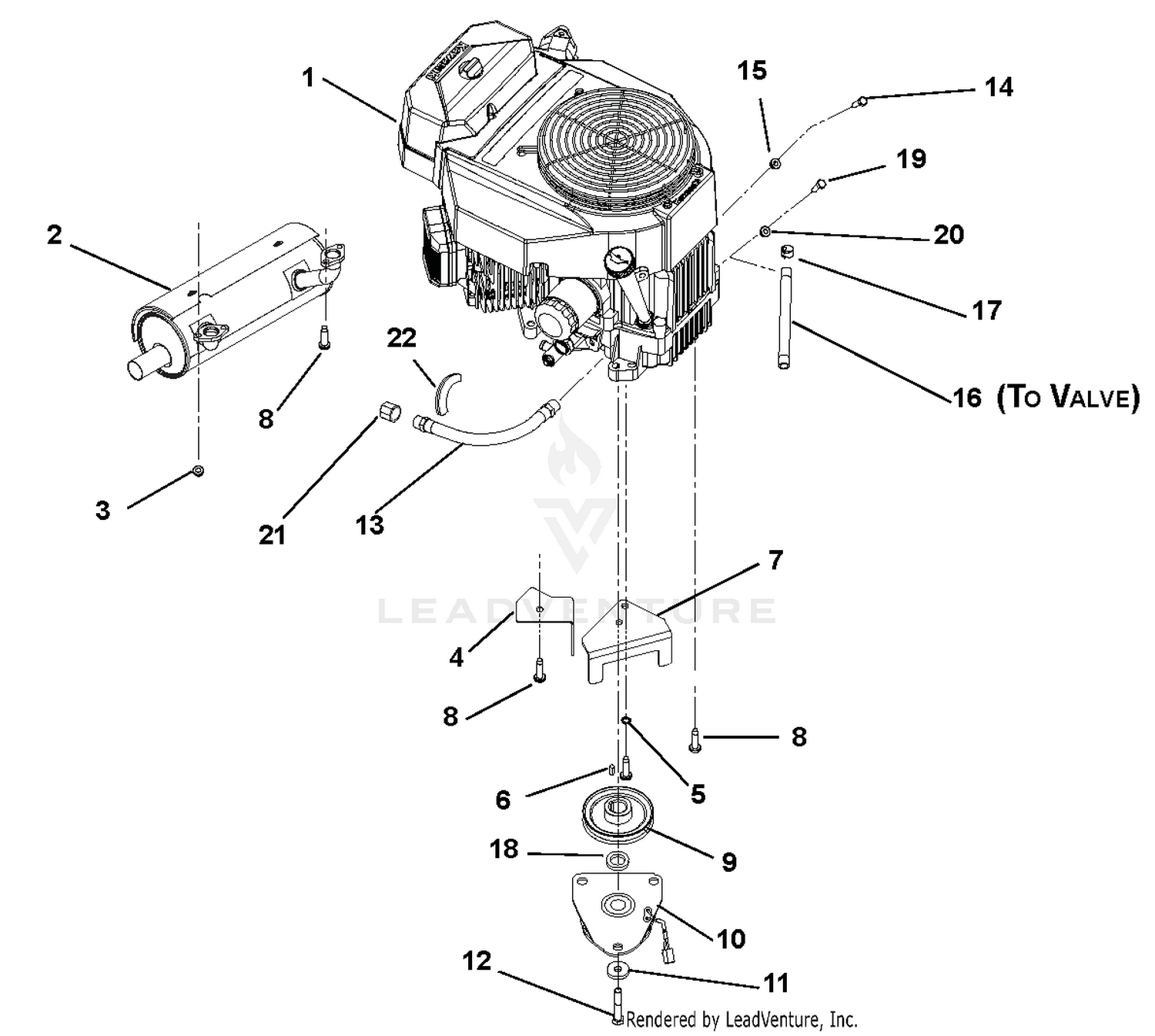

| Ref | Part Number | Description |
|---|
| 2 |
03989000 |
MUFFLER, KAWASAKI FX 24/26HP Price: $142.95 |
| 3 |
06500919 |
NUT-LK-TOP-FLG M8 ZCC This part replaces 06500018. Price: $1.95 |
| 4 |
03772951 |
GUARD, HD CLUTCH WIRE Price: $28.95 |
| 6 |
06602700 |
KEY-SQ .25X.625X.25 SAE 8630 Price: $3.45 |
| 7 |
03766851 |
ANCHOR - OGURA CLUTCH - HD Price: $33.95 |
| 8 |
05901507 |
BLT-HEX.38-16X1.25FTHG5 EP80YZ This part replaces 05900125. Price: $2.45 |
| 9 |
07331767 |
PULLEY, 4.50 OD X 1.002 ENGINE Price: $103.95 |
| 10 |
00200665 |
CLUTCH ASSY, OGURA# GT1A-HU02 Price: $296.95 |
| 11 |
06401111 |
WSHR, FLT .469X2.00X.250 ZCC This part replaces 06443600. Price: $6.95 |
| 12 |
05900037 |
BLT-HEX .44-20X3.00 G5 YZ EP80 Price: $6.45 |
| 13 |
07001829 |
HOSE, OIL DRAIN This part replaces 03873100. Price: $16.45 |
| 14 |
05901701 |
BLT-HEX .31-18X1.00 G5 ZCC This part replaces 05946900. Price: $1.45 |
| 15 |
06500809 |
NUT,NYL-FLG .31-18 GF ZCC This part replaces 06545400. Price: $1.45 |
| 17 |
03278800 |
CLAMP, FUEL LINE Price: $0.95 |
| 18 |
05500202 |
SPACER 1.002ID X 1.75 OD X.266 Price: $4.45 |
| 19 |
05901628 |
BLT, HEX M8-1.25X20 G8.8 ZCC This part replaces 05973300. Price: $1.45 |
| 20 |
06300119 |
WSHR-LK-REG .312X.078 ZCC This part replaces 06308600. Price: $0.95 |
| 21 |
03873200 |
PIPE CAP 3/8 NPT FEMALE Price: $12.45 |
