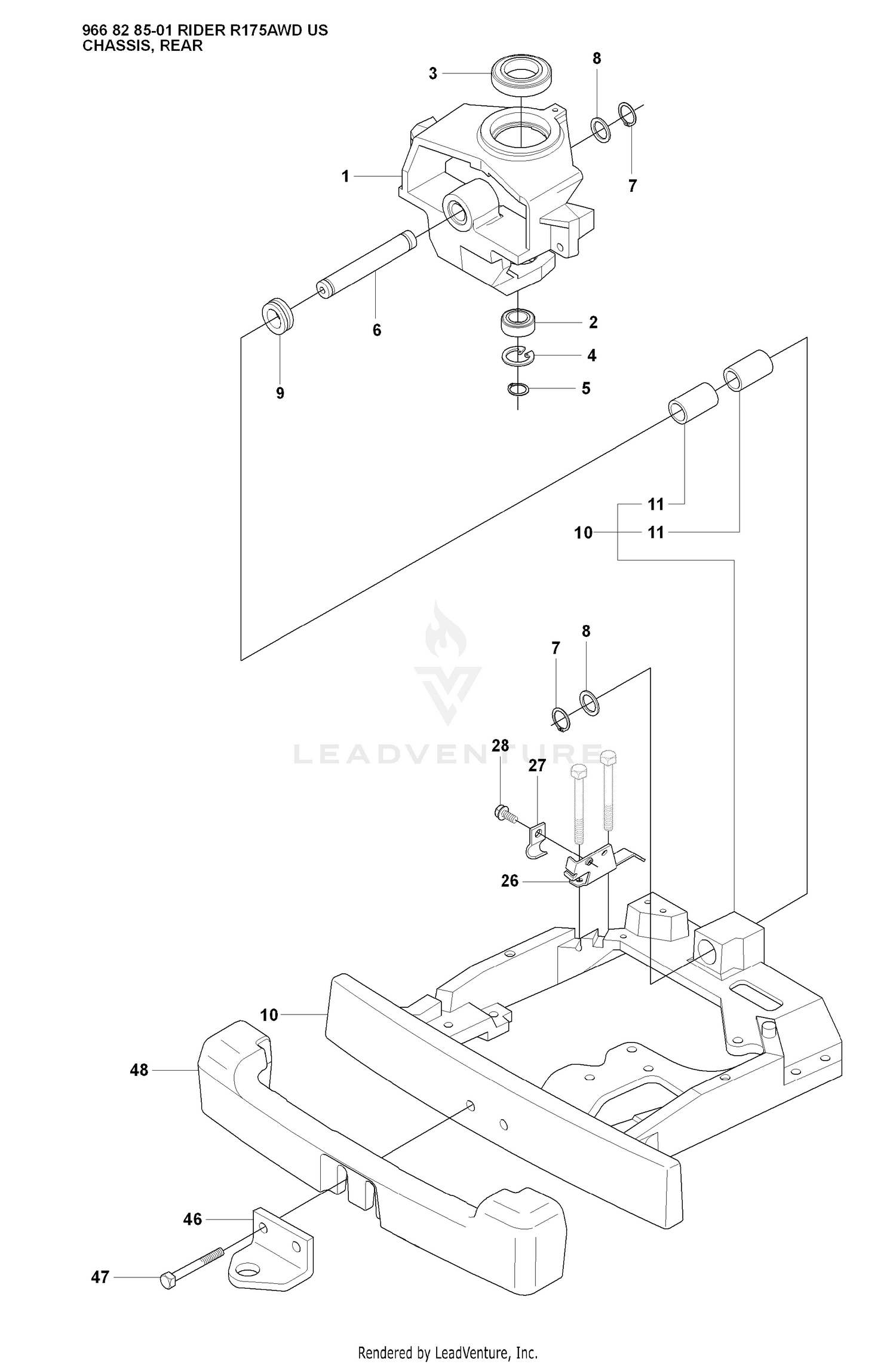

Chassis, Rear (Part 1)
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 506985803 | SPINDLE Price: $179.99 |
| 1 | 84-7770 | DISCONTINUED Price: Call Us |
| 2 | 738210504 | Ball Bearing 6005-2rs Price: $28.99 |
| 3 | 738211004 | BALL BEARING 6010 2RS1 Price: $39.99 |
| 4 | 735314010 | CIRCLIP SGH 47 Price: $4.99 |
| 5 | 735312600 | RETAINING RING SGA 25 Price: $2.99 |
| 6 | 506985901 | SHAFT Price: $44.99 |
| 7 | 735312600 | RETAINING RING SGA 25 Price: $2.99 |
| 8 | 506773401 | WASHER Price: $3.99 |
| 9 | 740681421 | V-RING Price: $3.99 |
| 10 | 535406001 | BRACKET Price: $299.99 |
| 11 | 506986102 | BUSHING Price: $14.99 |
| 26 | 544262101 | BRACKET Price: $39.99 |
| 27 | 506566501 | CLAMP Price: $2.99 |
| 28 | 725236461 | SCREW Price: $2.99 |
| 45 | 506889901 | DRAW RING Price: $17.99 |
| 46 | 725250071 | SCREW This part replaces 725250051. Price: $2.99 |
