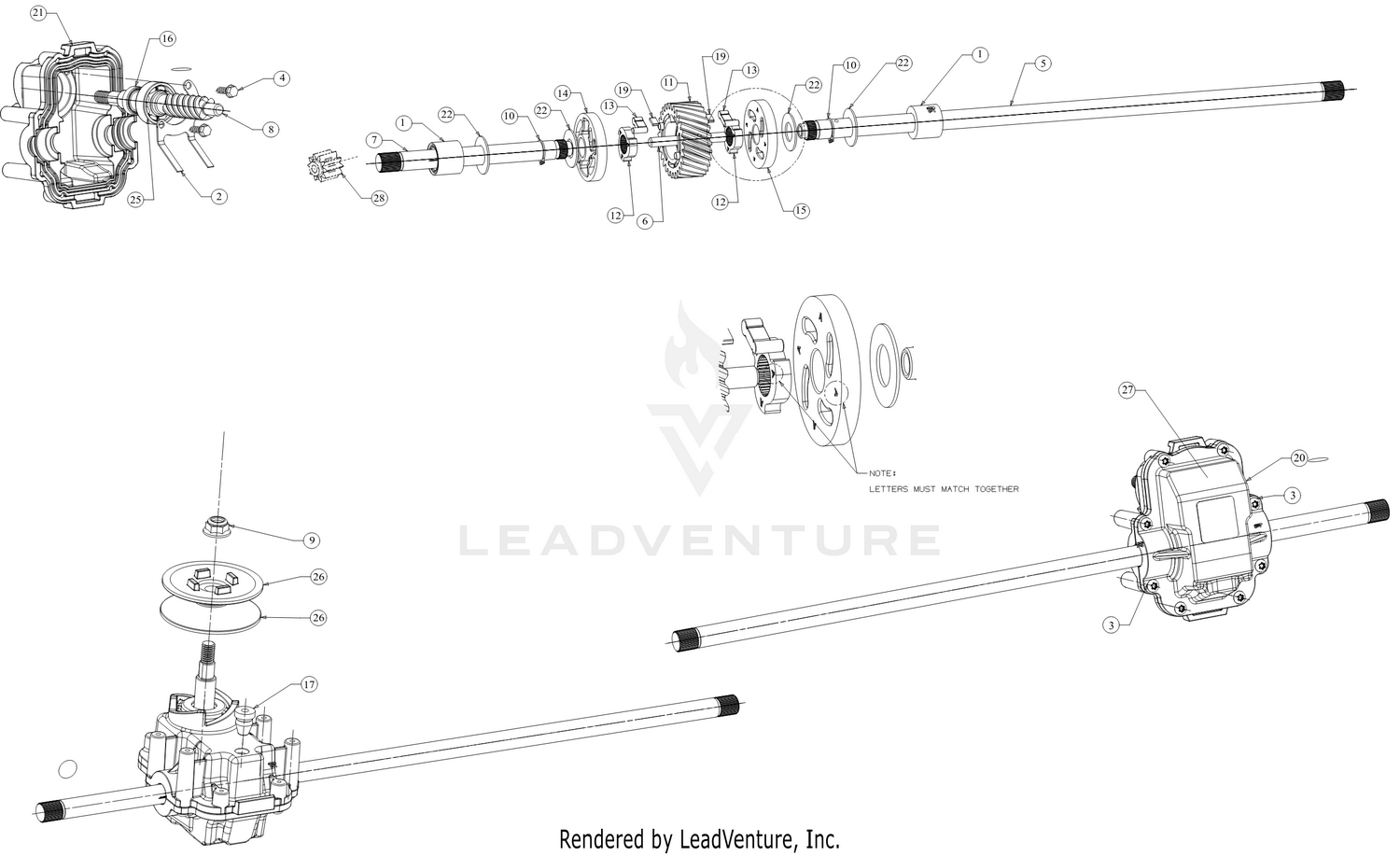

Transmission Assembly
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 3 | 710-04329 | SCREW .159 X .610 Price: $4.13 |
| 4 | 710-04374 | SCREW .159 X .43 Price: $3.24 |
| 9 | 712-04063 | FLANGE LOCK NUT 5/16-18 Price: $3.56 |
| 10 | 716-0865 | SNAP RING FOR .500 Price: $3.86 |
| 16 | 721-04107A | OIL SEAL Price: $3.95 |
| 18 | N/A | THREE BOND SEALANT |
| 22 | 736-04224 | FLAT WASHER .508X1.000X.040 Price: $3.70 |
| 23 | N/A | TRANSMISSION OIL |
| 24 | N/A | GREASE |
| 25 | 741-04116 | BALL BEARING Price: $6.90 |
| 26 | 756-05054 | HALF PULLEY 2.50 OD Price: $5.72 |
| 27 | 731-08175 | TRANSMISSION COVER Price: $10.24 |
