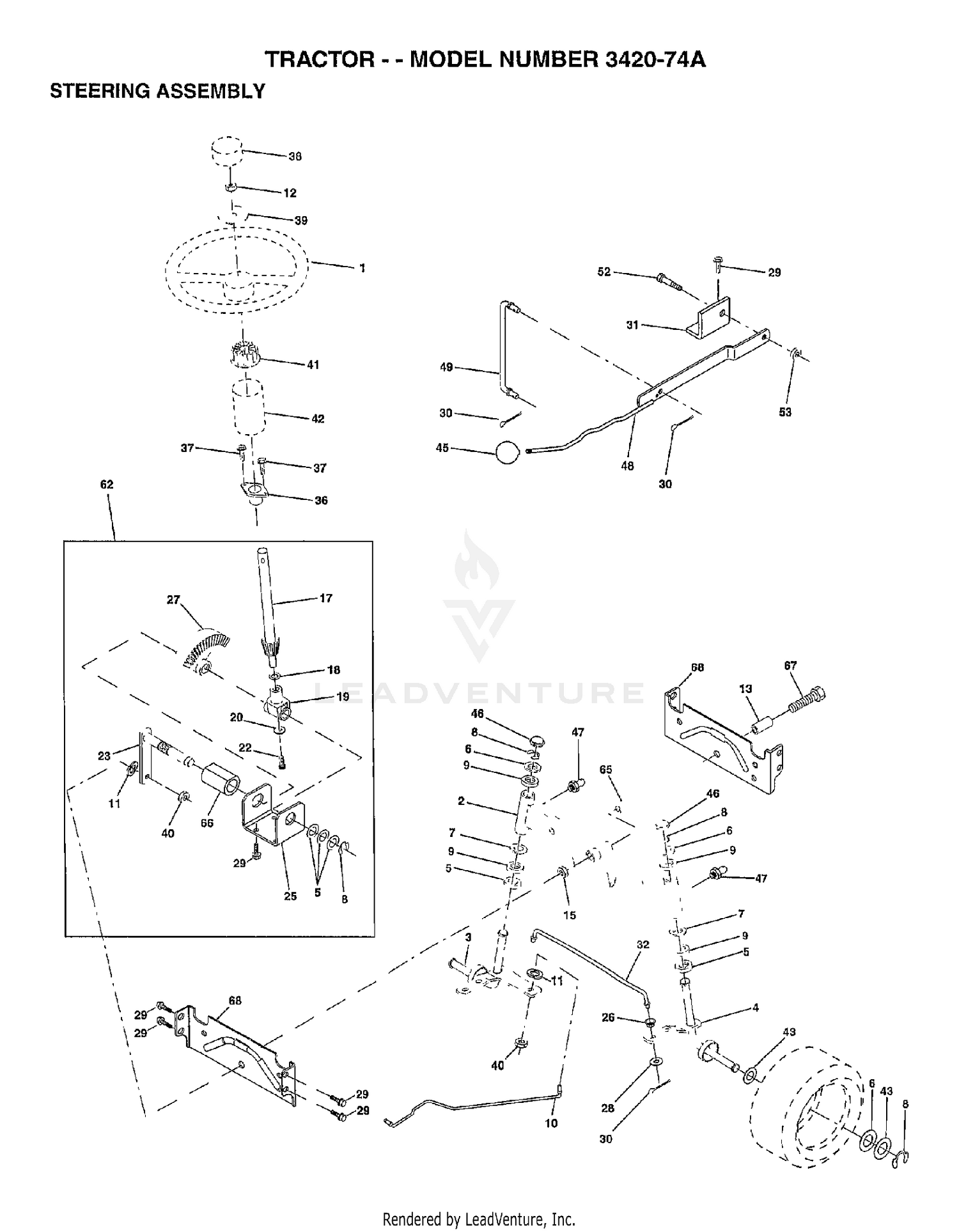

| Ref | Part Number | Description |
|---|
| 1 |
325-6 |
SCREW-HH Price: $1.42 |
| 1 |
532150546 |
STEERING WHEEL KIT This part replaces 532121472. Price: $59.99 |
| 2 |
3253-7 |
WASHER-LOCK Price: $0.27 |
| 2 |
532175131 |
AXLE ASM. This part replaces 532154427. Price: $39.99 |
| 3 |
24-5790-01 |
WEIGHT-REAR This part replaces 24-5790. Price: $334.70 |
| 3 |
532156483 |
SPINDLE ASM LH This part replaces 532154422. Price: $14.99 |
| 4 |
325-14 |
SCREW-HH Price: $2.64 |
| 4 |
532157473 |
SPINDLE ASM RH Price: $14.99 |
| 5 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 5 |
532006266 |
WASHER THRUST Price: $5.99 |
| 6 |
532121748 |
WASHER Price: $1.99 |
| 7 |
819272016 |
WASHER Price: $2.99 |
| 8 |
812000029 |
RING CLIP Price: $1.99 |
| 9 |
532003366 |
BEARING.STEERING.COLUMN Price: $1.99 |
| 10 |
532156438 |
DRAGLINK-STAMPED Price: $59.99 |
| 11 |
539990118 |
SLW 3/8 STD This part replaces 810040600. Price: $1.99 |
| 12 |
873940800 |
NUT.HEX.1/2-20 Price: $3.99 |
| 13 |
532154779 |
BEARING AXLE Price: $6.99 |
| 15 |
583612401 |
LOCKNUT M (1 2) (5 2) This part replaces 873601000. Price: $2.99 |
| 17 |
532156543 |
STEERING SHAFT Price: $49.99 |
| 18 |
532057079 |
THRUST WASHER Price: $2.99 |
| 19 |
532160395 |
STEERING SHAFT SUPPORT This part replaces 532124035. Price: $6.99 |
| 20 |
819091016 |
WASHER This part replaces 532126684. Price: $2.99 |
| 22 |
532165857 |
SCREW.HX.WSH.HD This part replaces 871200410. Price: $2.99 |
| 23 |
532156365 |
PITMAN SHAFT ASSY This part replaces 532124033. Price: $27.99 |
| 25 |
532154406 |
BRACKET STEERING Price: $5.99 |
| 26 |
532126847 |
BUSHING.DRAGLINK (2 2) This part replaces 532120754. Price: $2.99 |
| 27 |
532136874 |
GEAR.SECTOR Price: $49.99 |
| 28 |
819131414 |
WASHER This part replaces 819131416. Price: $3.99 |
| 29 |
874780612 |
Screw, Hex Wsh. Thrdrol. 3/8-16 x 3/4 (AYP part number) This part replaces 817490612. Price: $3.99 |
| 30 |
876020412 |
COTTER PIN Price: $3.99 |
| 32 |
532192757 |
ROD.TIE.WIRE.FORM This part replaces 532130465. Price: $12.99 |
| 36 |
532145207 |
BUSHING STRG 3/4 Price: $3.99 |
| 37 |
532152927 |
SCREW.TT.#10-32X.5.3/8.FLANGE Price: $3.99 |
| 38 |
532150546 |
STEERING WHEEL KIT This part replaces 532126805. Price: $59.99 |
| 39 |
532100712 |
Washer 17/32 x 2-1/4 x .160 (AYP part number) Price: $2.42 |
| 40 |
873680600 |
LOCKNUT This part replaces 532007810. Price: $1.99 |
| 41 |
532100711 |
Adapter Wheel Strg 758/ 753id (AYP part number) Price: $11.99 |
| 43 |
532121749 |
WASHER Price: $1.99 |
| 46 |
532121232 |
CAP.SPINDLE.BLACK Price: $1.99 |
| 47 |
532183226 |
FITTING.GREASE.TAPERED This part replaces 532006855. Price: $3.99 |
| 62 |
532167905 |
STEERING KIT This part replaces 532156595. Price: $99.99 |
| 65 |
532154780 |
SPACER AXLE Price: $6.99 |
| 66 |
532154404 |
BEARING ARM Price: $2.99 |
| 67 |
874781044 |
BOLT.HEX.FINISHED.5/8 Price: $3.99 |
