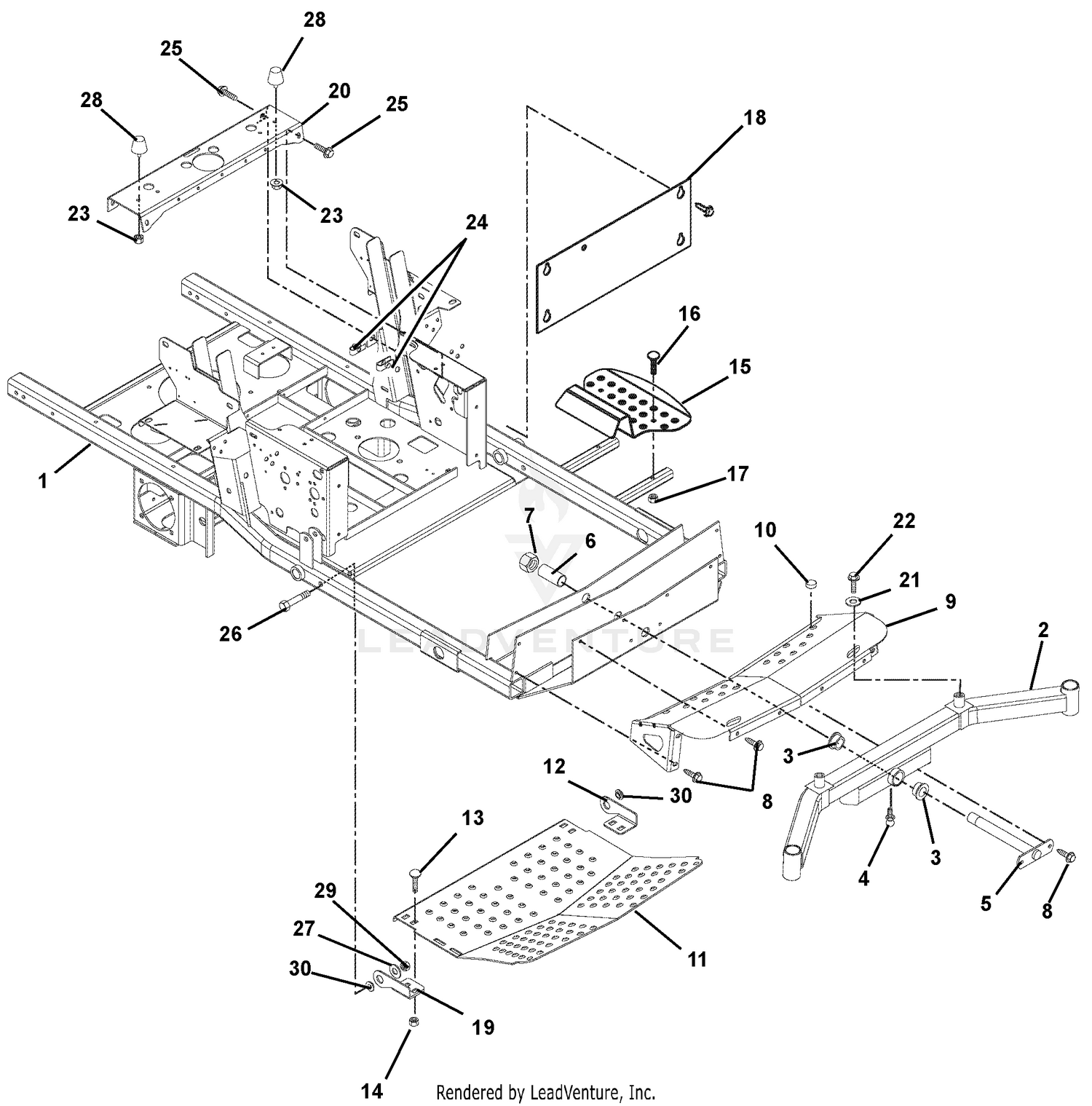

| Ref | Part Number | Description |
|---|
| 1 |
09288551 |
FRAME WELDMENT - BLACK Price: $654.75 |
| 2 |
09263753 |
WMT, FRONT AXLE Price: $611.95 |
| 3 |
05520100 |
BSHG-FLG1.020X1.385X.75X1.75NY This part replaces 018355. Price: $10.45 |
| 4 |
07012600 |
FTG-LUBE .25-28X.256 YWZC This part replaces 411027. Price: $3.45 |
| 5 |
09232000 |
PIN - AXLE Price: $61.45 |
| 6 |
09231900 |
SPACER 1.009 X 1.250 X 4.23 Price: $19.45 |
| 7 |
06543200 |
NUT-LK-NYL 1.0-14 YWZC Price: $8.95 |
| 8 |
07400129 |
SCR,TAP .375-16X.75 HWH TR ZCC This part replaces 07415400. Price: $1.45 |
| 9 |
09278053 |
WMT, AXLE COVER Price: $89.95 |
| 10 |
07516000 |
BUTTON BUMPER Price: $0.95 |
| 11 |
09233353 |
PANEL - INSPECTION (RED) Price: $100.95 |
| 12 |
09267151 |
HINGE, FOOTBOARD LH Price: $8.75 |
| 13 |
06200313 |
BLT, RHSN .38-16X1.00 G5 ZCC This part replaces 06223600. Price: $2.45 |
| 14 |
06500822 |
NUT-LK-TOP-FLG .38-16 ZC120 This part replaces 06542000. Price: $0.95 |
| 15 |
09231251 |
STEP, INGRESS (BLACK) Price: Call Us |
| 16 |
06200324 |
BLT, RHSN .31-18X1.75 G5 ZCC This part replaces 06220200. Price: $2.95 |
| 17 |
06500904 |
NUT-LK-TOP-FLG .312-18 GF ZCC This part replaces 06543100. Price: $0.95 |
| 18 |
00483153 |
PLATE - KICK This part replaces 09234053. Price: $69.45 |
| 19 |
09267251 |
HINGE, FOOTBOARD RH Price: $11.45 |
| 20 |
09275051 |
CHANNEL, CROSS (BLACK) Price: $56.45 |
| 21 |
06401127 |
WSHR, FLT .518X2.00X.105 ZCC This part replaces 06441800. Price: $3.45 |
| 22 |
05975000 |
BLT-HEX .50-20X1.00 GR5 YWZC Price: $3.45 |
| 24 |
07053300 |
NUT-RTNR .375-16X.37 Price: $3.45 |
| 25 |
07049900 |
BLT-SERHFWH .375-16X1.0 YWZC Price: $2.45 |
| 26 |
05901634 |
BLT,HEX .50-13X3.25 G5 ZCC This part replaces 05960000. Price: $3.45 |
| 27 |
06401012 |
WSHR,FLT .563X1.375X.109 ZCC This part replaces 06442000. Price: $2.45 |
| 28 |
07533000 |
BUMPER, RUBBER CONE,STUD MOUNT Price: $13.45 |
| 29 |
06500907 |
NUT-LK-TOP-FLG .500-13 GF ZCC This part replaces 06543600. Price: $1.45 |
