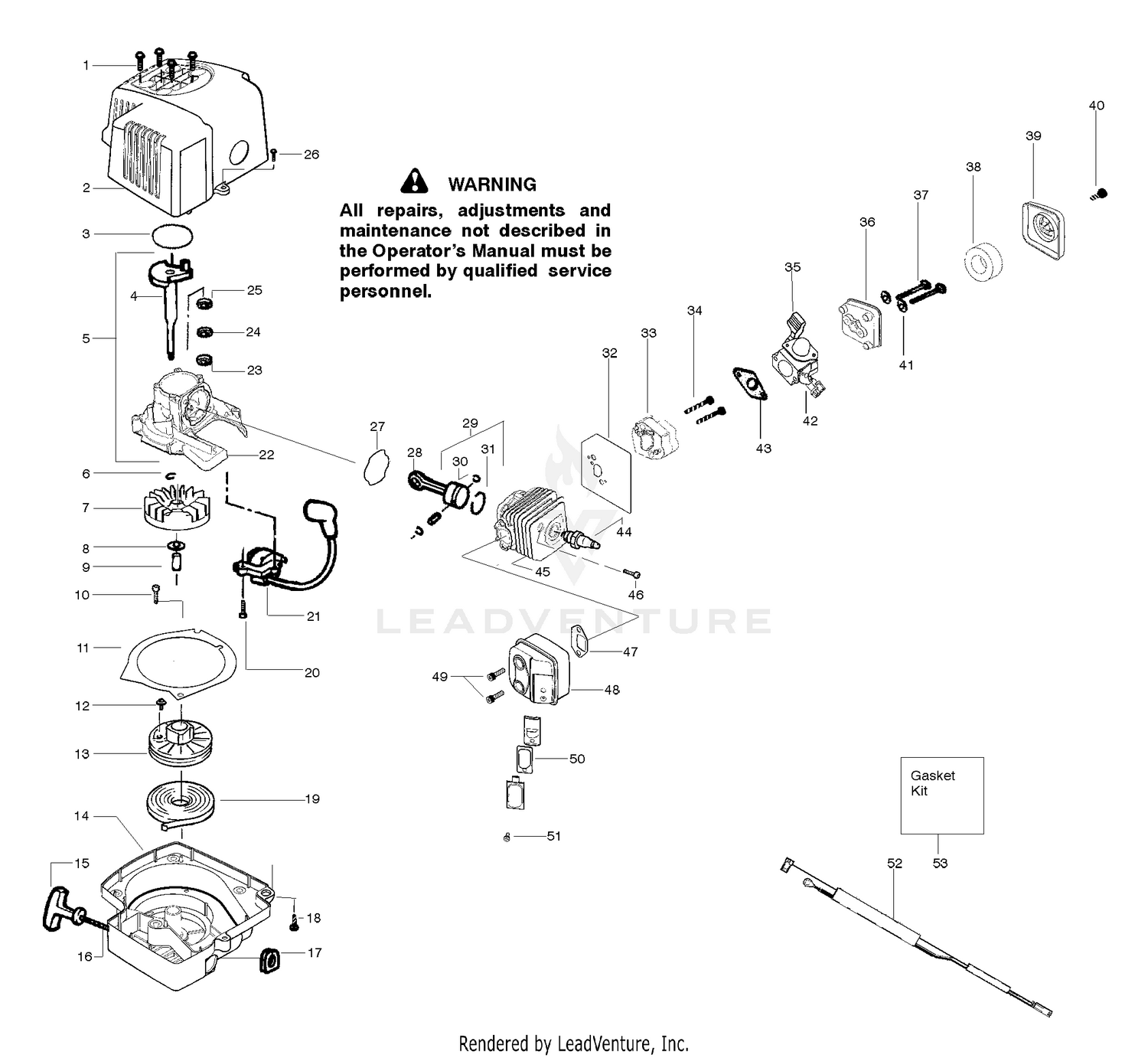

| Ref | Part Number | Description |
|---|
| 1 |
107-7773 |
SCREW-HSH Price: $8.36 |
| 1 |
530016386 |
Screw Price: $5.99 |
| 2 |
3234-7 |
SCREW-HHF Price: $1.99 |
| 2 |
530058799 |
Assy-Shroud/H'shield Price: $14.99 |
| 3 |
112-8942 |
FRONT GRASS SHIELD ASM Price: $44.08 |
| 4 |
125-1997 |
SHIELD-GRASS, REAR This part replaces 112-8944-01. Price: $68.52 |
| 4 |
545145801 |
CRANKSHAFT ASSY This part replaces 530012571. Price: $17.99 |
| 5 |
3256-74 |
WASHER-FLAT Price: $0.27 |
| 6 |
322-14 |
SCREW-HH Price: $1.01 |
| 6 |
530015941 |
Ring-Retainer-C'shaft Price: $1.99 |
| 7 |
110-1706 |
DEFLECTOR Price: $4.76 |
| 7 |
545221701 |
FLYWHEEL ASSY This part replaces 530071487. Price: $8.99 |
| 8 |
530015828 |
Washer-Flat Price: $1.99 |
| 9 |
530055729 |
Spacer-Flywheel Price: $7.99 |
| 10 |
530015496 |
Screw Price: $1.99 |
| 11 |
530055681 |
Plate-Baffle Price: $2.99 |
| 12 |
530016392 |
Screw Price: $1.99 |
| 14 |
530058801 |
Assy-Fan Housing Price: $7.99 |
| 15 |
530027569 |
Handle-Starter Price: $1.99 |
| 16 |
530069232 |
Kit-Rope Price: $3.99 |
| 17 |
530019182 |
Grommet-Ignition Module Price: $1.99 |
| 19 |
545008010 |
STARTER SPRING This part replaces 530042085. Price: $3.99 |
| 20 |
530016357 |
Screw Price: $1.99 |
| 21 |
530054137 |
Ignition Module Price: $32.99 |
| 23 |
530055728 |
Bearing-Outer Price: $6.99 |
| 24 |
530019264 |
Seal-Crankcase Price: $2.99 |
| 25 |
530032125 |
Bearing-Inner Price: $11.99 |
| 26 |
530015934 |
Screw Price: $1.99 |
| 28 |
530049817 |
CONNECTING ROD ASSY This part replaces 530069945. Price: $6.99 |
| 30 |
530015162 |
Retainer-Piston Pin Price: $1.99 |
| 31 |
545154009 |
PISTON RING This part replaces 530012472. Price: $1.99 |
| 33 |
530057634 |
Adapter-Carburetor Price: $8.99 |
| 34 |
530016309 |
Screw Price: $1.99 |
| 35 |
530071718 |
Kit-Choke Lever Price: $8.99 |
| 36 |
530055680 |
Air Box Price: $2.99 |
| 37 |
530016429 |
Screw Price: $1.99 |
| 38 |
530047932 |
Air Filter Foam Price: $1.99 |
| 39 |
530055679 |
Air Filter Cover Price: $1.99 |
| 40 |
530015957 |
Screw Price: $1.99 |
| 41 |
530015123 |
Washer This part replaces 530015158. Price: $1.99 |
| 45 |
530012553 |
Cylinder Price: $14.99 |
| 46 |
530015953 |
Screw Price: $1.99 |
| 49 |
530016338 |
Bolt-Muffler Price: $1.99 |
| 50 |
530071544 |
Kit-Spark Arrestor Price: $6.99 |
| 51 |
530015241 |
Screw Price: $1.99 |
| 52 |
530057728 |
Assy-Leadwire Price: $6.99 |
