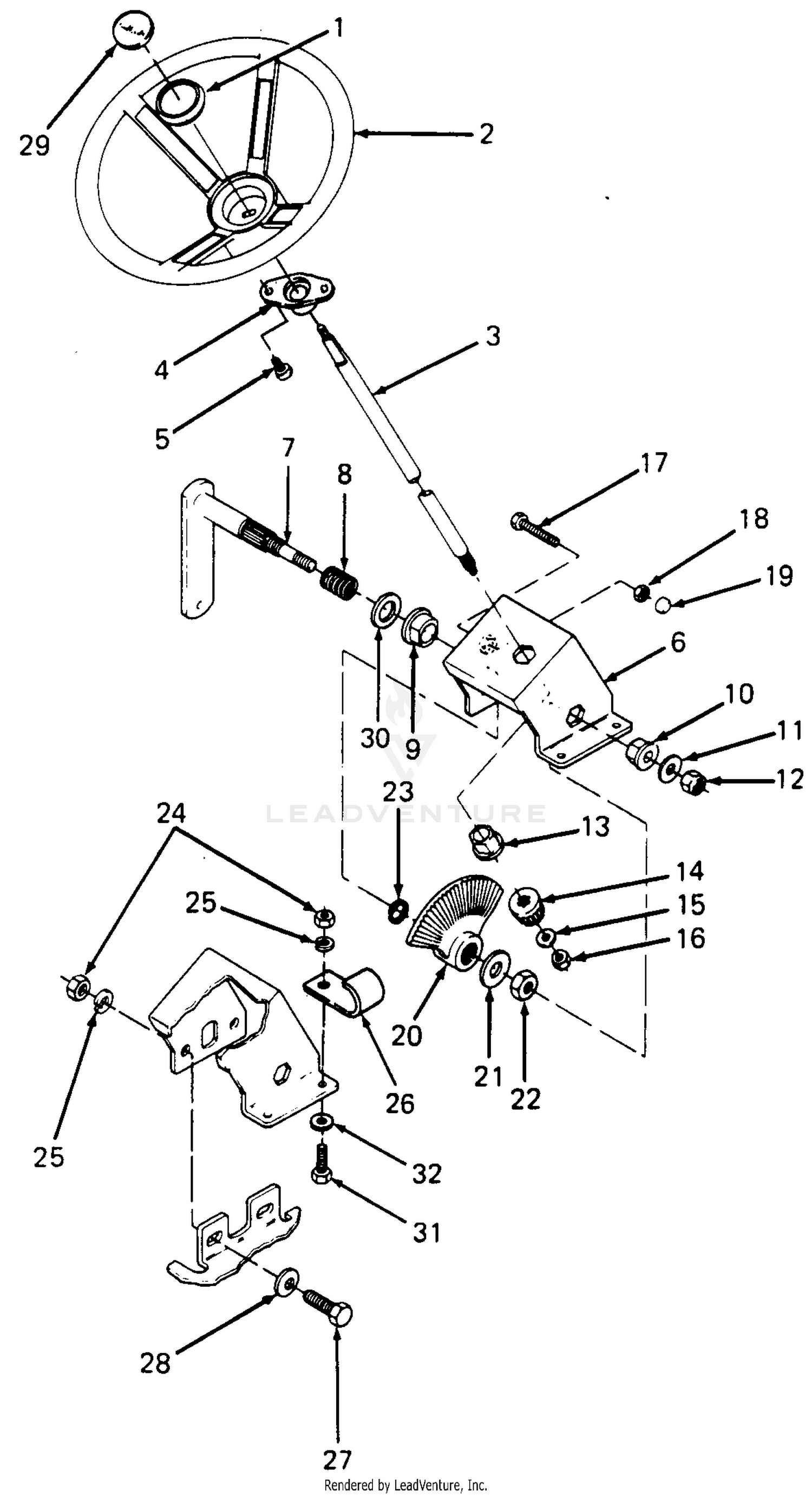

| Ref | Part Number | Description |
|---|
| 1 |
86-5470 |
DISCONTINUED Price: Call Us |
| 1 |
931-0220 |
Steering Wheel Cap This part replaces 731-0220. Price: $7.93 |
| 2 |
731-0806A |
STEERING WHEEL Not Available Price: |
| 2 |
76-4880 |
CONNECTOR Price: $10.76 |
| 3 |
68-9400 |
NUT-FLANGE This part replaces 48-7930. Price: $2.29 |
| 3 |
738-3070 |
STEERING SHAFT WHEEL Not Available Price: |
| 4 |
48-7890 |
NUT-HEX Price: $0.25 |
| 4 |
741-3025 |
BEARING Not Available Price: |
| 5 |
48-7880 |
NUT-HEX Price: $0.25 |
| 5 |
710-3105 |
Bolt, 5/16 X 7/8 Sq-Nk Crg Price: $5.35 |
| 6 |
100-8035 |
WIRE HARNESS-MAIN Price: $1,269.81 |
| 6 |
703-1551 |
ASSEMBLY-steeri Not Available Price: |
| 7 |
703-1531 |
SHAFT ASSEMBLY-STEERIN Not Available Price: |
| 7 |
86-7470 |
DIODE ASM Price: $27.38 |
| 8 |
732-3054 |
COMPRESSION SPRING Not Available Price: |
| 8 |
95-4375 |
DISCONTINUED Price: Call Us |
| 9 |
94-8001 |
FUSE-80 AMP Price: $25.34 |
| 9 |
941-0490 |
Flange Brg. w/Flats .75" I.D. This part replaces 741-0490. Price: $11.60 |
| 10 |
748-0228 |
HEX FLANGE BEARING .505 ID Not Available Price: |
| 11 |
736-3087 |
FLAT WASHER .510 x 1.120 X Not Available Price: |
| 12 |
712-3022 |
Nut, Hex Center Lock, 1/2-13 GR5 Price: $3.61 |
| 13 |
948-0227A |
Bearing, hex Flange .629 Id This part replaces 748-0227A. Price: $7.61 |
| 14 |
948-0237 |
Pinion Gear This part replaces 748-0237. Price: $19.21 |
| 15 |
736-3081 |
Washer, Flat, .320 X .60 X .06 Thk HDN Price: $3.08 |
| 16 |
712-0237 |
Nut, Hex Center Lock, 5/16-24 Price: $4.37 |
| 17 |
710-3200 |
SCREW 3/8-16 x 2.25 GR5 Not Available Price: |
| 18 |
712-3008 |
HEX JAM NUT 3/8-16 GR5 Price: $4.08 |
| 19 |
731-0988 |
CAP-NYLON Not Available Price: |
| 20 |
748-0236 |
Gear, Bevel Price: $88.74 |
| 21 |
736-0187 |
Washer, Flat, .640 X 1.25 X .06 Thk Price: $4.02 |
| 22 |
712-0318 |
HEX JAM NUT 5/8-18 Not Available Price: |
| 23 |
716-3001 |
Ring, Snap Price: $3.96 |
| 24 |
712-3010 |
HEX NUT 5/16-18 This part replaces 7123010. Price: $3.89 |
| 25 |
936-0119 |
Washer, Lock, 5/16 This part replaces 736-0119. Price: $4.29 |
| 26 |
726-3008 |
Clip, Cable Price: $4.26 |
| 27 |
710-0376 |
Screw, 5/16-18 X 1 Znd Hex Hd Cap This part replaces 710-3002. Price: $3.66 |
| 28 |
736-0242 |
Washer, Bell, .345 X .88 X .060 Thk Price: $3.75 |
| 29 |
779-3600 |
LABEL-STEERING CAPSMALL Not Available Price: |
| 30 |
736-0188 |
Washer, Flat, .760 X 1.49 X .06 Thk HDN Price: $3.75 |
| 31 |
710-0528 |
Screw, Hex Cap, 5/16-18 X 1.25 Lg Price: $3.90 |
