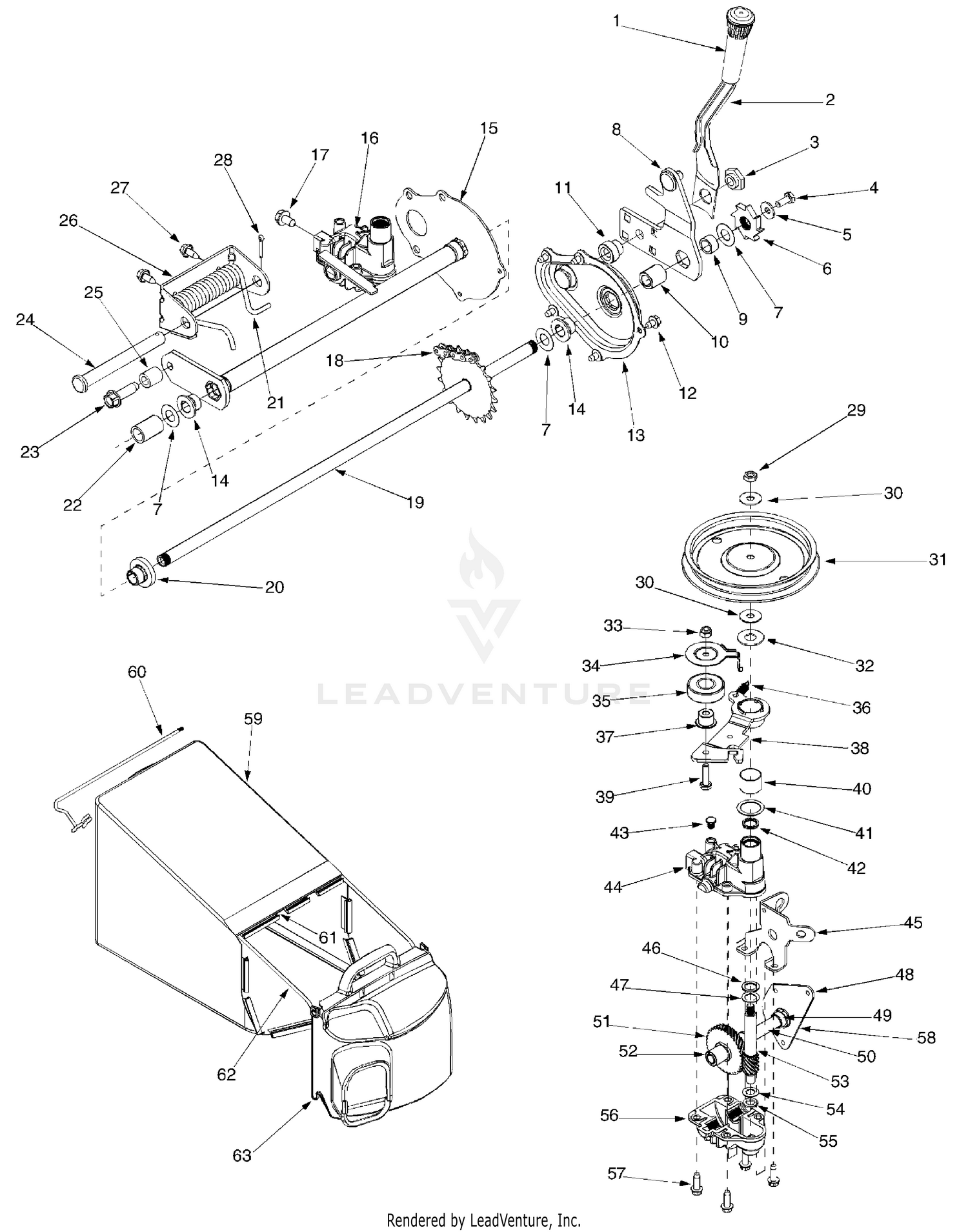

| Ref | Part Number | Description |
|---|
| 1 |
720-0223 |
Grip Price: $12.89 |
| 2 |
732-0803A |
SPRING LEVER Not Available Price: |
| 3 |
938-0529 |
Shoulder Nut .825 x .165 Lg. This part replaces 738-0529. Price: $9.85 |
| 4 |
710-0751 |
SCREW 1/4-20 x .620 GR5 Price: $3.63 |
| 5 |
736-0270 |
SPRING WASHER BELL Price: $3.63 |
| 6 |
948-0318 |
Wheel Rachet This part replaces 748-0318. Price: $8.90 |
| 7 |
736-0369 |
Flat Washer .508 ID x 1.0 OD Price: $3.90 |
| 8 |
782-0566B-0637 |
Pivot Arm Assembly This part replaces 782-0566B. Price: $39.19 |
| 9 |
750-0515 |
Spacer .510 ID x .70 OD Price: $3.85 |
| 10 |
741-0978 |
Sleeve Bearing .504 ID x .830 OD Price: $3.95 |
| 11 |
950-1056 |
Shoulder This part replaces 750-1056. Price: $6.21 |
| 12 |
710-0653 |
Tap Screw 1/4-20 x .375 Price: $3.78 |
| 13 |
682-7528-0637 |
CHAIN COVER ASSEMBLY (POWDER BLACK) Not Available This part replaces 682-7528. Price: |
| 14 |
741-0324A |
Flange Bearing.506 ID x.590 Lg This part replaces 741-0324. Price: $7.07 |
| 15 |
682-7526-0637 |
Transmission Axle Assembly This part replaces 682-7526. Price: $115.90 |
| 16 |
918-0263A |
TRANSMISSION Not Available This part replaces 618-0263A. Price: |
| 17 |
710-0604A |
Hex Screw 5/16-18 Price: $3.96 |
| 18 |
913-0453 |
Chain This part replaces 713-0453. Price: $10.58 |
| 19 |
938-0012A |
Rear Axle Assembly This part replaces 638-0012. Price: $69.12 |
| 20 |
741-0522 |
Flange Bearing .506 ID x .715 Lg Price: $7.70 |
| 21 |
732-0832 |
Torsion Spring Price: $16.75 |
| 22 |
950-0151 |
Spacer .550 ID x .755 OD x 1.1 This part replaces 750-0151. Price: $9.70 |
| 23 |
710-1315 |
Screw 3/8-16 x .25 Price: $3.90 |
| 24 |
911-0835 |
CLEVIS PIN This part replaces 711-0835. Price: $11.12 |
| 25 |
750-0807 |
Spacer .385 ID x .624 OD Price: $5.44 |
| 26 |
782-0568B-0637 |
LIFT BRACKET SPRING (POWDER BLACK) Not Available This part replaces 782-0568. Price: |
| 27 |
710-1652 |
Screw 1/4-14 x .825 Price: $3.86 |
| 28 |
714-0474 |
Cotter Pin Price: $4.08 |
| 29 |
712-3025 |
Hex Jam Nut 5/16-24 Price: $6.24 |
| 30 |
736-0425 |
Bell Washer .325 ID x .930 OD Price: $3.95 |
| 31 |
756-0656 |
Pulley Not Available Price: |
| 32 |
736-3084 |
Flat Washer .510 ID x 1.120 OD Price: $4.39 |
| 33 |
712-0896 |
Hex Jam Nut 1/4-28 Price: $4.08 |
| 34 |
782-7598 |
Belt Keeper Price: $13.38 |
| 35 |
941-0600 |
BALL BEARING This part replaces 741-0600. Price: $23.34 |
| 36 |
932-0849A |
Extension Spring This part replaces 732-0849A. Price: $3.91 |
| 37 |
750-1050 |
Flange Spacer Price: $4.56 |
| 38 |
982-0027A |
IDLER BRACKET ASSEMBLY Not Available This part replaces 682-0027A. Price: |
| 39 |
710-0299 |
Hex Cap Screw 1/4-28 x 1.0 Price: $3.94 |
| 40 |
741-0682A |
Bearing Sleeve Price: $9.86 |
| 41 |
936-0570 |
FLAT WASHER Not Available This part replaces 736-0570. Price: |
| 42 |
921-0329 |
Oil Seal This part replaces 721-0329. Price: $8.93 |
| 43 |
721-0325 |
Plug Price: $3.82 |
| 44 |
618-0253 |
UPPER HOUSING ASSEMBLY Not Available Price: |
| 45 |
782-7601A-0637 |
CABLE GUARD BRACKET Not Available This part replaces 782-7601A. Price: |
| 46 |
741-0690 |
Bearing Price: $4.02 |
| 47 |
936-0616 |
THRUST WASHER This part replaces 736-0616. Price: $4.02 |
| 48 |
782-7595 |
Pivot Bracket Not Available Price: |
| 49 |
741-0324A |
Flange Bearing.506 ID x.590 Lg This part replaces 741-0324. Price: $7.07 |
| 50 |
711-1168 |
OUTPUT SHAFT 6T Not Available Price: |
| 51 |
717-1469 |
Gear 34T Price: $55.35 |
| 52 |
941-0674 |
BEARING Not Available This part replaces 741-0674. Price: |
| 53 |
917-1487 |
Pinion Shaft 10T This part replaces 717-1487. Price: $60.40 |
| 54 |
736-0314 |
Thrust Washer 3/8 x .70 Price: $6.01 |
| 55 |
936-0569 |
THRUST WASHER Not Available This part replaces 736-0569. Price: |
| 56 |
918-0252 |
LOWER HOUSING ASSEMBLY Not Available This part replaces 618-0252. Price: |
| 57 |
710-0642 |
Hex Screw 1/2-20 x .75 Price: $4.05 |
| 58 |
911-0066 |
OUTPUT SHAFT ASSEMBLY Not Available This part replaces 611-0066. Price: |
| 59 |
664-04016 |
GRASSBAG ASSEMBLY Not Available Price: |
| 60 |
747-0940A-0637 |
Support Rod w/ Rope Guide This part replaces 747-0940A. Price: $23.67 |
| 61 |
747-0939 |
Pivot Rod Price: $9.51 |
| 62 |
747-0937-0637 |
Grassbag Frame Not Available This part replaces 747-0937. Price: |
