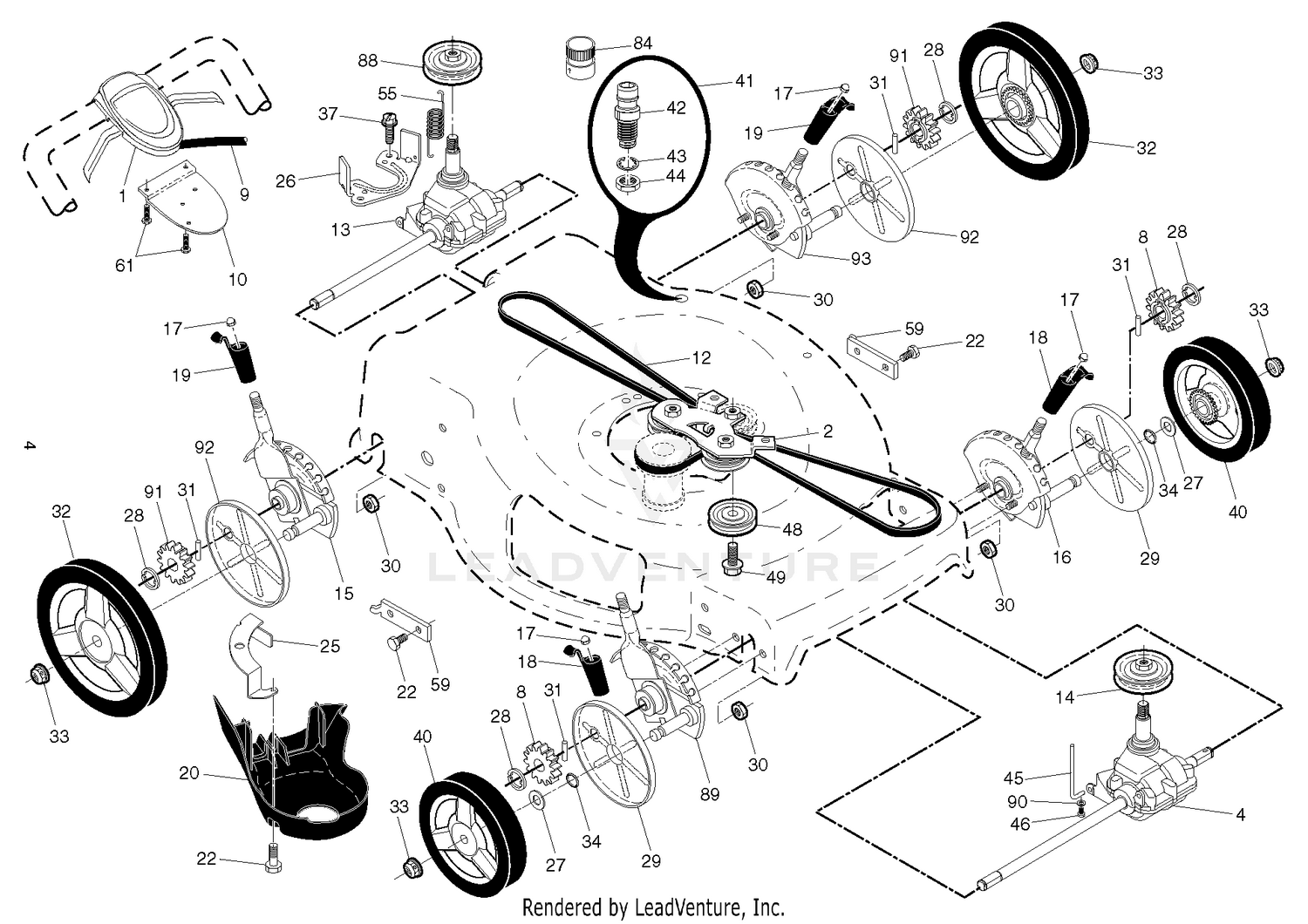

| Ref | Part Number | Description |
|---|
| 1 |
589818808 |
CONTROL.DR.AW2.22+.BLK.GEN This part replaces 581950505. Price: $39.99 |
| 2 |
586072802 |
BRACKET.ASM.AWD.BZP.BLACK Price: $6.99 |
| 4 |
589599201 |
TRANSMISSION.22+.AWD.FRT This part replaces 585305701. Price: $119.99 |
| 8 |
532404835 |
PINIION.14.TOOTH.RGD Price: $5.99 |
| 9 |
581952101 |
CABLE.DRIVE.RWD.WALK. Price: $29.99 |
| 10 |
532432790 |
BRACKET.DRIVE.CONTR.GEN2.BLACK Price: $3.99 |
| 12 |
580364610 |
BELT V3L 64.10 CLUTCHING COVER This part replaces 580364603. Price: $14.99 |
| 13 |
581975506 |
TRANMISSION.ASM.22+AWD.REAR This part replaces 581975501. Price: $79.99 |
| 14 |
586963002 |
PULLEY AWD/RGD, SCREW-ON AWD/R This part replaces 586038401. Price: $9.99 |
| 17 |
583343001 |
NUT.PUSH.156 This part replaces 532413808. Price: $2.99 |
| 18 |
532426188 |
KNOB.ADJUSTER.LW.BLK Price: $5.99 |
| 20 |
580806901 |
COVER.REAR.DRIVE.22+2013 Price: $19.99 |
| 22 |
817000510 |
BOLT.5/16HEX.WHS.HD Price: $4.99 |
| 25 |
532426065 |
BRACKET.DRIVE.COVER.RGD.BZP Price: $6.99 |
| 26 |
581152502 |
BRACKET.TRAN.BELTKEEPER.22+RGD Price: $5.99 |
| 27 |
532067725 |
WASHER FLUT Price: $5.99 |
| 28 |
812000058 |
E-RING 7/16 RE Price: $2.99 |
| 29 |
581840401 |
COVER.DUST.WHEEL.INNER.WALK Price: $5.99 |
| 30 |
596041001 |
Hardware This part replaces 532438130. Price: $2.99 |
| 31 |
532404845 |
PAWL, DRIVE Price: $4.99 |
| 32 |
501067001 |
WHEEL.11.H3SP.AWD.LC.460.BB2 This part replaces 585265602. Price: $59.99 |
| 33 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 532409148. Price: $3.99 |
| 34 |
532197480 |
O-RING..070X.487.NEOPRENE Price: $3.99 |
| 37 |
532163409 |
SCREW Price: $3.99 |
| 40 |
580365301 |
WHEEL.8".AWD.3SP.EXT.DR.GREY Price: $37.99 |
| 41 |
532438489 |
KIT.WASH-OUT.PORT.ZINC.WALK Price: $14.99 |
| 42 |
532438489 |
KIT.WASH-OUT.PORT.ZINC.WALK This part replaces 532434994. Price: $14.99 |
| 43 |
532415585 |
WASHER.LOCK.INTERNAL.TOOTH Price: $2.99 |
| 44 |
532415586 |
LOCKNUT.HEX.WITH.O-RING Price: $4.99 |
| 45 |
581241301 |
BRACKET.AWD.FRONT.BELT.KEEPER Price: $3.99 |
| 46 |
584299401 |
SCREW.HI-LO. 5/16 X 1.00 Price: $2.99 |
| 48 |
587973001 |
PULLEY.ASM.22+ AWD This part replaces 581904001. Price: $19.99 |
| 49 |
581334501 |
SCREW Price: $11.99 |
| 55 |
581351301 |
SPRING.RETURN.AUTO. Price: $4.99 |
| 59 |
532442113 |
BRACKET.SUPPORT.22+RWGD.BZP Price: $3.99 |
| 61 |
532181698 |
SCREW, PHILLIPS HEAD 10 X 5/8 Price: $3.99 |
| 84 |
532416405 |
COUPLING.QUICK CONNECT Price: $8.99 |
| 88 |
532194128 |
PULLEY Price: $17.99 |
| 89 |
587429702 |
ADJUSTER.ASM.FG/AWD.RF.QP.BZIN Price: $19.99 |
| 90 |
596134901 |
GSPH This part replaces 539990692. Price: $2.99 |
| 91 |
587232401 |
PINION.16.TEETH.HW.AWD.REAR Price: $3.99 |
| 92 |
587251701 |
COVER.DUST.WHEEL.HW.AWD.REAR Price: $6.99 |
| 93 |
587233201 |
ADJUSTER.ASM.HW.AWD.LR Price: $22.99 |
