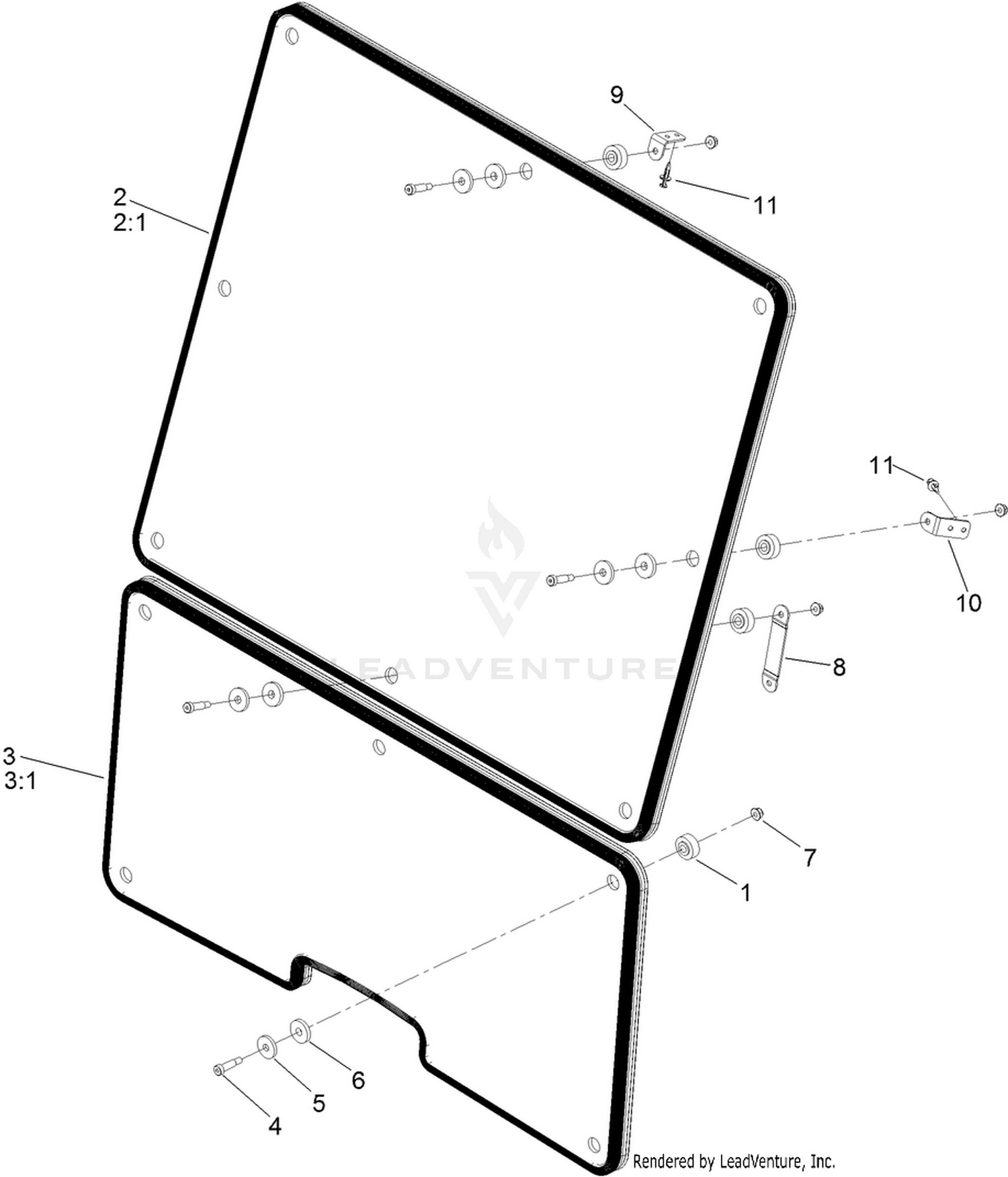

Polycarbonate Windshield Assembly
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 125-9537 | BUSHING-FLANGE Price: $2.58 |
| 2 | 133-0840 | WINDOW ASM-SHIELD, POLY Price: $1,367.02 |
| 3 | 136-2119 | WINDOW ASM-LOWER, POLY This part replaces 133-0838. Price: $756.39 |
| 4 | 125-9521 | SCREW-SHOULDER, HSH Price: $3.53 |
| 5 | 130-5815 | WASHER-BACKUP Price: $3.60 |
| 6 | 125-9982 | BUSHING-FLANGE Price: $1.76 |
| 7 | 104-8300 | NUT-HF, NI Price: $0.39 |
| 8 | 132-3717-03 | TAB-DUAL Price: $21.78 |
| 9 | 132-3716-03 | TAB-MOUNT Price: $11.00 |
| 10 | 132-3715-03 | TAB-MOUNT Price: $7.02 |
