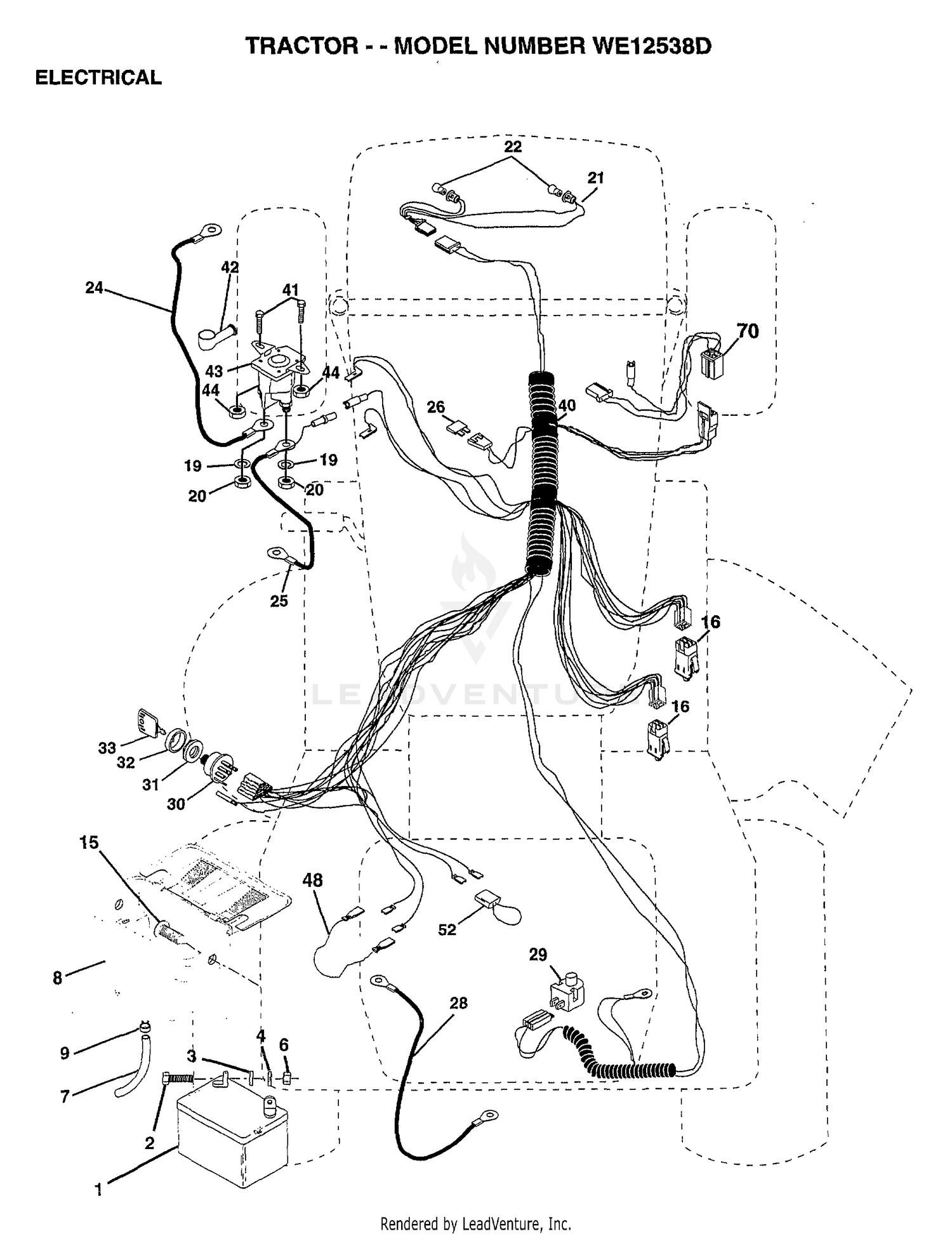

| Ref | Part Number | Description |
|---|
| 1 |
144925 |
SUB= 123899X Price: Call Us |
| 1 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 2 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 2 |
74760412 |
BOLT LT Price: Call Us |
| 3 |
11-0160 |
ROLLER SHAFT SCREW ASM Price: $28.16 |
| 3 |
19091016 |
WASHER Price: Call Us |
| 4 |
10040400 |
LOCKWASHER Price: Call Us |
| 4 |
3220-3 |
NUT-HJ Price: $0.28 |
| 5 |
137-9706 |
DECAL-WARNING This part replaces 93-8064. Price: $4.48 |
| 6 |
147-3120 |
BALL JOINT RECEIVER ASM This part replaces 99-1460. Price: $16.35 |
| 6 |
73220400 |
SUB= 50675 Price: Call Us |
| 7 |
109238X |
TUBE T Price: Call Us |
| 8 |
105-3823 |
HYD CYLINDER ASM Price: $493.03 |
| 9 |
109596X |
HOSE CLAMP T Price: Call Us |
| 9 |
340-103 |
FITTING-HYD, 45 DEG Price: $36.92 |
| 10 |
83-1680 |
HOSE-HYD Price: $39.99 |
| 11 |
88-9700 |
HOSE-HYD Price: $64.30 |
| 12 |
302-2 |
FITTING-GREASE Price: $1.89 |
| 13 |
322-1 |
SCREW-HH Price: $0.22 |
| 14 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 15 |
115-3260 |
KIT-SERVICE, PIN This part replaces 27-2550. Price: $33.44 |
| 15 |
147688 |
FASTNER.SNAP-IN Price: Call Us |
| 16 |
153664 |
SWITCH INTERLOCK Price: Call Us |
| 16 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 17 |
131-4307 |
PIN This part replaces 68-5560. Price: $15.61 |
| 18 |
322-3 |
SCREW-HH Price: $0.79 |
| 19 |
10090400 |
SUB= 10040400 Price: Call Us |
| 19 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 20 |
73350400 |
NUT Price: Call Us |
| 20 |
93-2384 |
SPACER-CARRIER Price: $9.09 |
| 21 |
5-1226 |
WASHER Price: $3.90 |
| 22 |
10-8110 |
WASHER-THRUST Price: $1.09 |
| 22 |
4152J |
HEADLAMP BULB Price: Call Us |
| 23 |
10-7820 |
PIVOT HINGE ASM Price: $504.57 |
| 24 |
302-60 |
FITTING-GREASE Price: $2.26 |
| 25 |
136-8446 |
KIT, CENTER PULL FRAME This part replaces 104-2056. Price: $340.89 |
| 25 |
146147 |
CABLE.BTRY.6GA.RD Price: Call Us |
| 26 |
108824X |
FUSE HYT Price: Call Us |
| 26 |
138-6311 |
ARM-PULL-ASSEMBLY-LH This part replaces 92-0586. Price: $29.91 |
| 27 |
133-2337 |
ROLLER ASM This part replaces 99-4277. Price: $176.14 |
| 28 |
3290-317 |
WASHER-SPRING Price: $1.40 |
| 28 |
4207J |
CABLE T Price: Call Us |
| 29 |
121305X |
SWITCH SEAT Price: Call Us |
| 29 |
131-4295 |
PIN-PIVOT This part replaces 10-6090. Price: $51.39 |
| 30 |
138-6303 |
ARM-PULL-ASSEMBLY-RH This part replaces 92-0585. Price: $29.91 |
| 30 |
140301 |
SWITCH IGN 4POS Price: Call Us |
| 31 |
124211X |
NUT IGNITION Price: Call Us |
| 31 |
21-8470 |
SHAFT-ROLLER Price: $62.10 |
| 32 |
141226 |
COVER KEY SWITCH Price: Call Us |
| 33 |
122147X |
KEY Price: Call Us |
| 40 |
156442 |
HARNESS-IGNITION Price: Call Us |
| 41 |
71110408 |
BOLT HXHD FIN Price: Call Us |
| 42 |
131563 |
SUB= 154336 Price: Call Us |
| 43 |
145673 |
SUB= 146154 Price: Call Us |
| 44 |
73640400 |
NUT HXKEP 1/4X20 Price: Call Us |
| 48 |
140844 |
ADAPTER AMMETER Price: Call Us |
| 52 |
141940 |
PROTECTION LOOP Price: Call Us |
