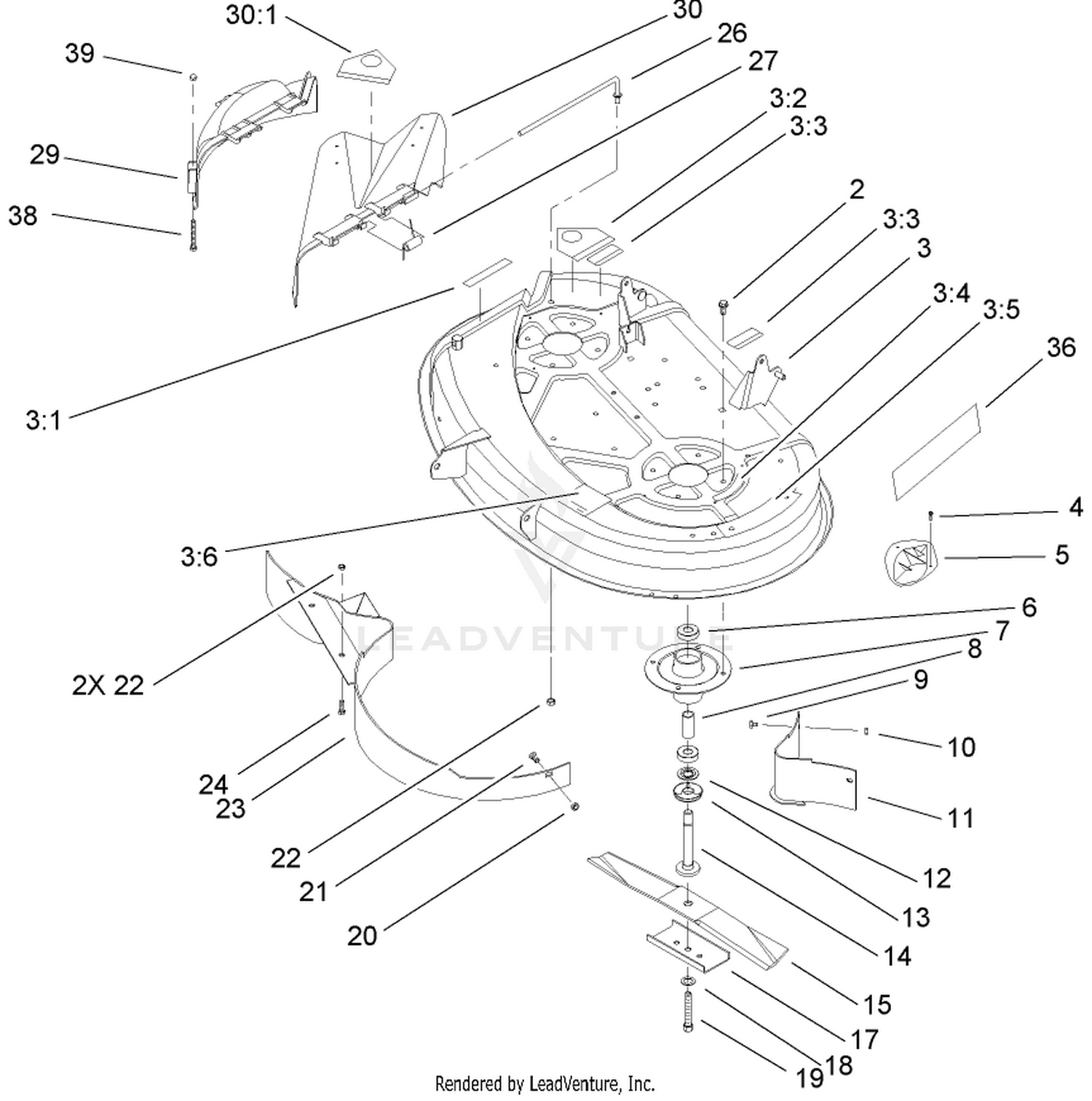

| Ref | Part Number | Description |
|---|
| 2 |
32144-41 |
SCREW-TAPTITE Price: $4.79 |
| 3 |
99-5846 |
DECK ASM Price: $674.86 |
| 4 |
32144-111 |
SCREW-PPH Price: $0.66 |
| 5 |
76-2160 |
PLATE-KICKER Price: $10.37 |
| 6 |
38-7820 |
BEARING-BALL This part replaces 100-1048. Price: $13.99 |
| 7 |
88-4510 |
HOUSING-SPINDLE Price: $71.13 |
| 8 |
62-3661 |
SPACER Price: $10.41 |
| 9 |
321-4 |
SCREW-HH Price: $0.99 |
| 10 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 11 |
79-1640-03 |
BAFFLE ASM Price: $39.67 |
| 12 |
80-4380 |
SPACER Price: $4.08 |
| 13 |
80-4360 |
SHIELD-BEARING Price: $12.11 |
| 14 |
80-4341 |
SHAFT-SPINDLE Price: $40.48 |
| 15 |
14-7799 |
BLADE KIT Price: $54.71 |
| 17 |
80-0510-03 |
STIFFENER-BLADE Price: $10.93 |
| 18 |
3290-465 |
WASHER-BELLEVILLE Price: $2.89 |
| 19 |
26-0671 |
SCREW-HH Price: $7.99 |
| 20 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 21 |
3230-1 |
BOLT-CARR Price: $1.49 |
| 22 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 23 |
79-1600-03 |
BAFFLE ASM Price: $62.12 |
| 24 |
323-5 |
SCREW-HH Price: $0.41 |
| 26 |
95-1661 |
ROD-PIVOT Price: $13.31 |
| 27 |
57-6950 |
SPRING Price: $16.98 |
| 29 |
88-4430 |
COVER-RECYCLER Price: $47.93 |
| 30 |
93-0317 |
DEFLECTOR ASM Price: $47.57 |
| 36 |
106-6407 |
DECAL Price: $19.73 |
| 38 |
321-14 |
SCREW-HH Price: $0.55 |
