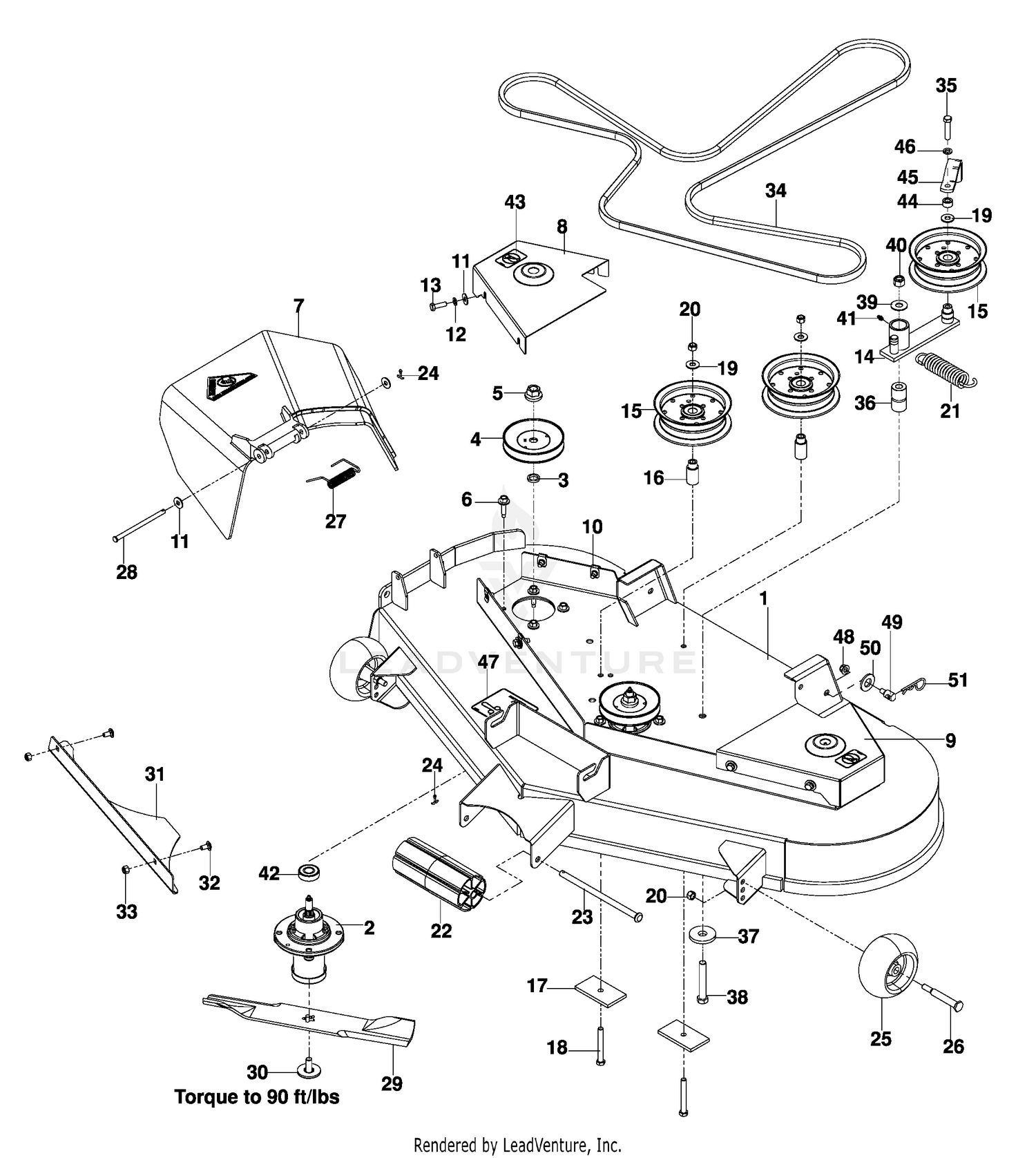

48 Inch Deck

48 Inch Deck

Parts (111)

RefPart NumberDescription
1 522744501 DECK.48".TRI-FORCE.W/DECALS.OR Price: $1,099.99
1 93-7836 DECAL-PEDAL, TRACTION Price: $14.38
2 539112170 MANDREL.DECK.ASSEMBLY Price: $69.99
2 70-2200 DECAL Price: $5.09
3 532187690 WASHER.SPACER.MANDREL This part replaces 539107520. Price: $3.99
3 94-2689 DISCONTINUED Price: Call Us
4 21-2770 PAD-FLOOR PLATE, RH Price: $96.81
4 532173434 MANDREL PULLEY Price: $14.99
5 532173436 PULLEY MANDREL This part replaces 532112171. Price: $14.99
5 93-7832 DECAL-CAUTION Price: $26.67
6 21-2660-01 PLATE-SIDE This part replaces 21-2660. Price: $299.86
6 596134801 Nuts This part replaces 539107590. Price: $1.00
7 32128-21 NUT-HF Price: $0.39
7 584953901 BOLT.HEX.WASHR.HED.313-18X1.19 This part replaces 539107630. Price: $3.99
8 3234-12 SCREW-HHF Price: $0.61
8 539110732 DISCHARGE CHUTE 48" Price: $44.99
9 3253-4 WASHER-LOCK Price: $0.25
9 539113411 BELT SHIELD - R.H. ORANGE Price: $64.99
10 539113413 BELT SHIELD - L.H. ORANGE Price: $64.99
10 72-3690 DISCONTINUED Price: Call Us
11 3217-6 NUT-HEX Price: $1.19
11 539104763 U-CLIP 5/16-18 NUT RETAINER Price: $4.99
12 107-2918 DECAL-DANGER This part replaces 93-7806. Price: $30.43
12 596134901 GSPH This part replaces 539990692. Price: $2.99
13 3290-144 SCREW-SHWH Price: $0.47
13 596238801 WASHER SPRING LOCK WASHER WITH This part replaces 539990187. Price: $2.99
14 249-21 CLAMP-SLOTTED Price: $18.93
14 596580801 Bolts This part replaces 539990209. Price: $2.99
15 106-5190 BATTERY This part replaces 63-9230. Price: $170.85
15 539112198 IDLER ARM Price: $27.99
16 24-6390 STUD-HOLDDOWN, BATTERY Price: $19.83
16 589766102 Pulleys This part replaces 539132728. Price: $27.99
17 32103-2 NUT-WING Price: $0.68
17 596841501 Bushings This part replaces 539112169. Price: $7.99
18 3296-2 NUT-LOCK, NI Price: $1.89
18 596770301 Washers This part replaces 539103303. Price: $4.99
19 28-1280 DISCONTINUED Price: Call Us
19 539101341 HCS 3/8C X 3 Price: $4.99
20 596433701 GSPW Washers This part replaces 539990517. Price: $2.99
20 70-1180 DISCONTINUED Price: Call Us
21 24-6420-03 HOLDDOWN-BATTERY This part replaces 24-6420. Price: $55.90
21 596240901 GSPW Nuts This part replaces 539976979. Price: $2.99
22 3290-378 TIE-CABLE Price: $0.79
22 539103256 SPRING Price: $9.99
23 2412-61 TINNERMAN CLIP Price: $4.93
23 532176066 NOSE ROLLER 48" Price: $11.99
24 3290-357 NUT-HHF, WHIZ Price: $0.61
24 594092501 Rods This part replaces 539107613. Price: $5.99
25 2412-4 CLAMP-R Price: $4.22
25 596029501 Pins This part replaces 539990365. Price: $2.99
26 3234-11 SCREW-HHF Price: $1.23
26 532133957 WHEEL GAGE DONUT This part replaces 539107610. Price: $11.99
27 37-9650 TRIM-BOX, TOOL Price: $19.76
27 596434404 Bolts This part replaces 539107608. Price: $4.99
28 596646001 Springs This part replaces 539110735. Price: $3.99
29 595935501 Pins This part replaces 539110736. Price: $2.99
30 38-4550-03 COVER-INSTRUMENTS This part replaces 38-4550. Price: $448.71
30 539113425 BLADE, 16-1/4" Price: $19.99
31 532193003 BOLT.WASHER.ASM.7/16-2 This part replaces 539107522. Price: $6.99
31 95-2746 DECAL - STARTING INSTRUCT Price: $33.93
32 539113427 CONFINEMENT PLATE 48" BLK Price: $32.99
32 92-7800 BATTERY COVER ASM This part replaces 24-9740. Price: $65.49
33 39-8020 TRIM-COVER, INSTRUMENT Price: $15.23
33 596039401 BOLT ROUND HEAD SQUARE NECK BO This part replaces 539990799. Price: $2.99
34 596583702 Nuts This part replaces 539990717. Price: $2.99
34 93-6680 DECAL-DIESEL Price: $19.31
35 43-4300 TRIM-FRAME, REAR Price: $13.54
35 539103013 BELT, DECK Price: $59.99
36 539109243 BELT, DECK Price: $74.99
36 93-7822 DECAL-REFUELING Price: $17.17
37 596583901 Bolts This part replaces 539990730. Price: $2.99
37 HY3225 DISCONTINUED This part replaces 322-5. Price: Call Us
38 2412-74 R-CLAMP Price: $2.37
38 539103427 PIVOT BUSHING Price: $7.99
39 32128-20 NUT-HF Price: $0.99
39 596437501 Washers This part replaces 539102243. Price: $8.99
40 3229-1 BOLT-CARR Price: $3.39
40 539103433 HCS 1/2C X 3 1/4 Price: $5.99
41 32128-33 NUT-HF Price: $0.25
41 595316401 Washers This part replaces 539990550. Price: $2.99
42 596135601 GSPW NUTS This part replaces 539101331. Price: $3.99
42 93-3183 TOOL BOX ASM Price: $240.67
43 596899901 GSPW Zerks This part replaces 539976998. Price: $2.99
44 539112050 BEARING, BALL Price: $5.99
44 93-7830 DECAL-TORQUE Price: $23.91
45 581724301 DECAL.DECK.6MIL.EURO.NOSTEP This part replaces 539105743. Price: $3.99
45 68-8610-01 EXTENSION-FENDER This part replaces 68-8610. Price: $186.20
46 3234-14 SCREW-HHF Price: $0.61
46 539923515 SPACER Price: $4.99
47 32144-10 SCREW-HWH Price: $4.29
47 539114981 GUIDE, BELT Price: $19.99
48 21-2760 PAD-PLATE FLOOR, LH Price: $96.42
48 596238701 Washers This part replaces 539990118. Price: $3.99
49 539112620 DECAL, BELT ROUTING Price: $4.99
49 88-0070-01 PLATE-FLOOR This part replaces 88-0070. Price: $169.68
50 594944401 NUT HEXAGON FLANGE 5/16-18 ST This part replaces 539112899. Price: $5.99
50 93-7839 DECAL-DANGER Price: $37.36
51 593824001 STUD.W/"D"ANTI-ROTATION This part replaces 532195161. Price: $3.99
51 93-3185 COVER ASM Price: $144.25
52 3254-2 WASHER-LOCK, INTERNAL Price: $0.27
52 539976982 WASHER 5/8 FLAT Price: $3.99
53 18-2770 CABLE-GROUND Price: $47.33
54 92-7801 SHIELD-COVER, BATTERY Price: $12.83
55 3290-144 SCREW-SHWH Price: $0.47
56 3296-2 NUT-LOCK, NI Price: $1.89
58 93-7410-01 PANEL-FOOTREST This part replaces 93-7410. Price: $44.33
59 66-3200 TREAD-FOOTREST, LH Price: $7.38
60 93-7626-01 FENDER-RH This part replaces 93-7626. Price: $177.45
61 3234-33 SCREW-HHF Price: $0.79
62 93-7276 DECAL-DANGER Price: $15.13
63 93-6668 DECAL-BATTERY Price: $18.99
