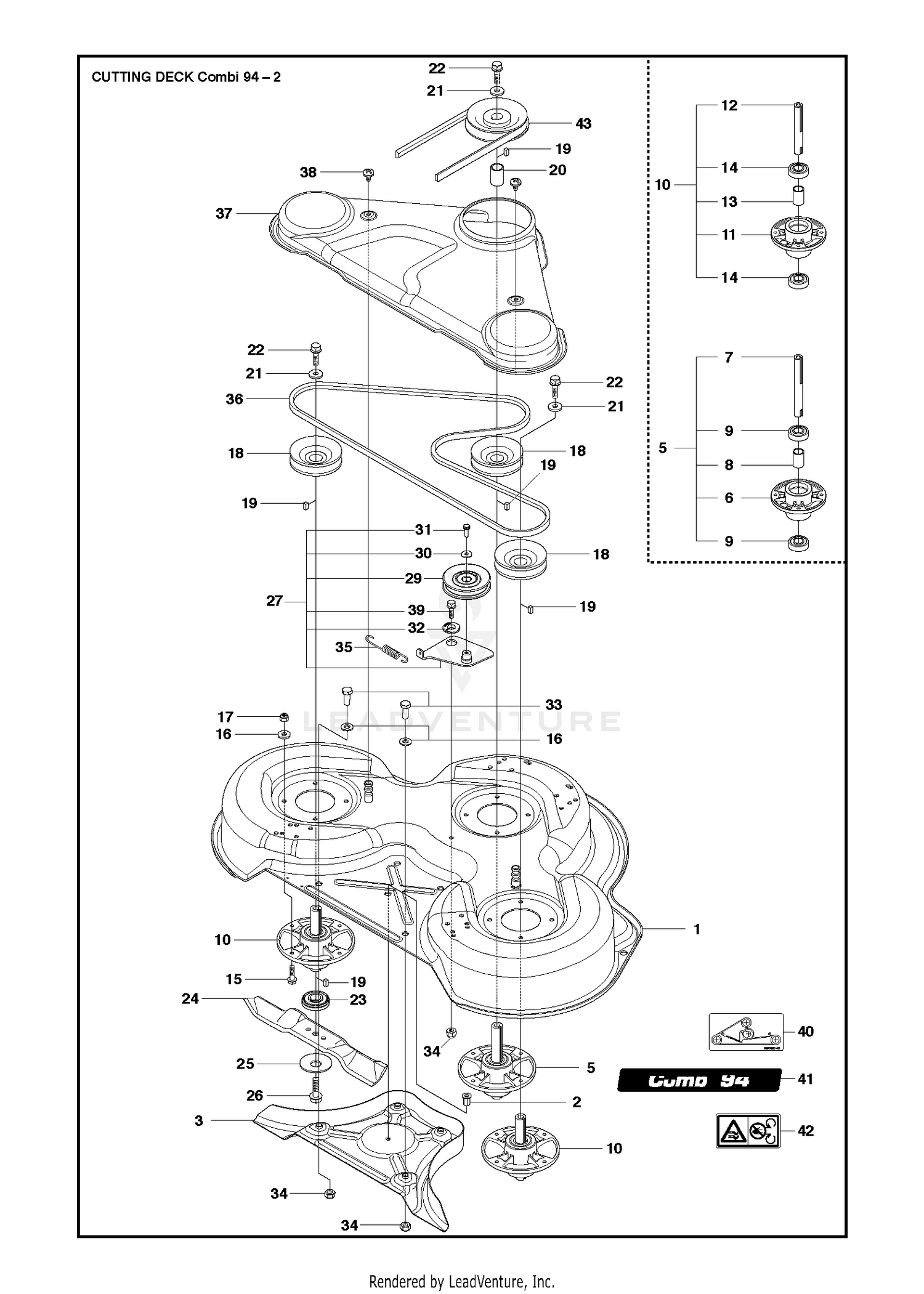

94CM CUTTING DECK
Parts (40)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 581237407 | NEEDS DESCRIPTION Price: Call Us |
| 2 | 506916201 | NUT Price: $4.99 |
| 3 | 544065801 | PLUG C93 & C94 Price: $44.99 |
| 5 | 576384101 | BLADE HOUSING ASSY Price: $84.99 |
| 6 | 576384201 | BEARING HOUSING Price: $29.99 |
| 7 | 576384301 | SHAFT Price: $29.99 |
| 8 | 576384401 | SPACING SLEEVE Price: $6.99 |
| 9 | 738230434 | BEARING Price: $17.99 |
| 10 | 576384102 | BLADE HOUSING ASSY Price: $79.99 |
| 11 | 576384201 | BEARING HOUSING Price: $29.99 |
| 12 | 576384302 | SHAFT Price: $21.99 |
| 13 | 576384401 | SPACING SLEEVE Price: $6.99 |
| 14 | 738230434 | BEARING Price: $17.99 |
| 15 | 535423801 | BOLT Price: $4.99 |
| 16 | 734116401 | WASHER BRB 8.4X17 Price: $5.99 |
| 17 | 732211801 | LOCKNUT M8 Price: $3.99 |
| 19 | 506533501 | KEY Price: $3.99 |
| 20 | 544068002 | SPACER Price: $9.99 |
| 21 | 734117441 | WASHER Price: $3.99 |
| 22 | 544114101 | SCREW Price: $3.99 |
| 23 | 535504202 | ADAPTER Price: $19.99 |
| 24 | 579652510 | BLADE Price: $22.99 |
| 25 | 588145601 | WASHER Price: $6.99 |
| 26 | 544114101 | SCREW Price: $3.99 |
| 27 | 586966601 | BELT TENSIONER ASSY KIT Price: $59.99 |
| 29 | 506532701 | PULLEY Price: $39.99 |
| 30 | 734116441 | SPACER Price: $3.99 |
| 31 | 586320401 | Price: Call Us |
| 32 | 586496701 | WASHER SHOULDER ASSY Price: $4.99 |
| 33 | 725245171 | SCREW Price: $2.08 |
| 34 | 732211801 | LOCKNUT M8 Price: $3.99 |
| 35 | 506533101 | SPRING Price: $9.99 |
| 36 | 589530701 | BELT Price: $49.99 |
| 37 | 544066301 | BELT COVER C93 & C94 GREY Price: $44.99 |
| 38 | 544400501 | SCREW Price: $3.99 |
| 39 | 725645301 | SCREW Price: $3.99 |
| 40 | 506789701 | Decal Price: $21.55 |
| 41 | 544238101 | Price: Call Us |
| 42 | 574510001 | DECAL Price: $2.99 |
| 43 | 506778601 | PULLEY Price: $49.99 |
