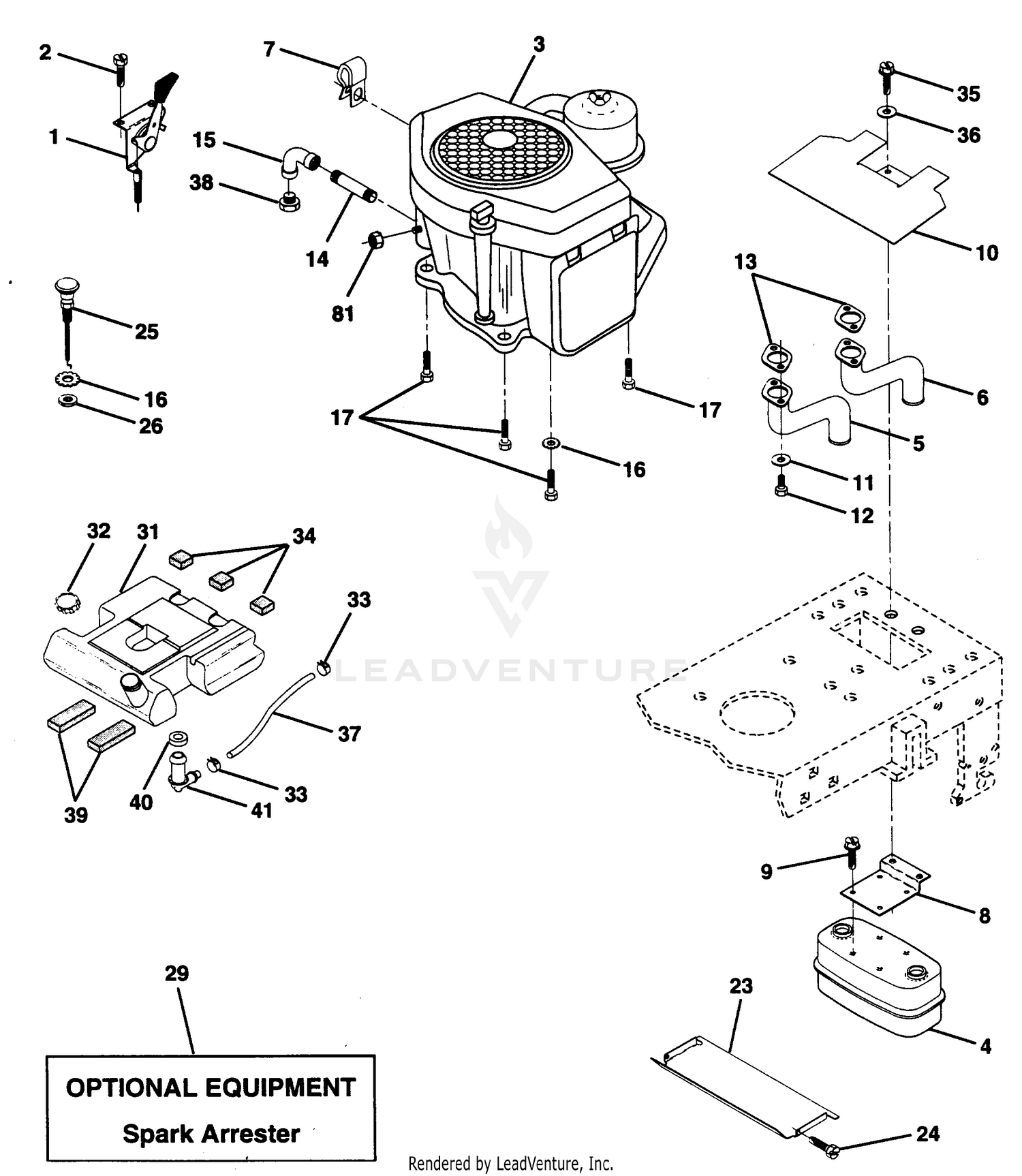

| Ref | Part Number | Description |
|---|
| 1 |
3218-5 |
NUT-JAM Price: $0.27 |
| 1 |
532132748 |
CONTROL.THROT.RH.BLK.FLG.44.75 This part replaces 532132747. Price: $22.99 |
| 2 |
3253-7 |
WASHER-LOCK Price: $0.27 |
| 2 |
817720410 |
Screw Hex Thd Cut 1/4-20x5/8 T (AYP part number) Price: $5.99 |
| 3 |
325-13 |
SCREW-HH This part replaces 325-26. Price: $3.57 |
| 4 |
532149723 |
MUFFLER.TWIN.CYL.LOW.TONE This part replaces 532137978. Price: $49.99 |
| 5 |
583954501 |
PIPE.EXHAUST.LH.CV18/20 This part replaces 532146699. Price: $9.99 |
| 6 |
583954801 |
PIPE.EXHAUST.RH.CV18/20 This part replaces 532146700. Price: $9.99 |
| 7 |
532002751 |
Clip, Insulated (AYP part number) This part replaces 532124996. Price: $2.42 |
| 8 |
532122439 |
Bracket Muffler Mounting (AYP part number) Price: $6.27 |
| 9 |
817190408 |
Screw Hex Wsh Thd Cut 1/4-20 (AYP part number) Price: $5.99 |
| 10 |
532434017 |
SHIELD.HEAT.MUFFLER This part replaces 532146629. Price: $11.99 |
| 11 |
810040500 |
Washer Lock Hvy Hlcl 1/4 (Order from Engine Manufacturer) (AYP part number) Price: $2.99 |
| 12 |
874570512 |
Bolt, Fin Hex 1/4-20 x 3/4 (Order from Engine Manufacturer) (AYP part number) Price: $3.99 |
| 14 |
813280336 |
Nipple Pipe 3/8 Npt X 4-1/2" (AYP part number) Price: Call Us |
| 15 |
532428287 |
VALUE.OIL.DRAIN This part replaces 813200300. Price: $11.99 |
| 16 |
539990118 |
SLW 3/8 STD This part replaces 811050600. Price: $1.99 |
| 17 |
874930624 |
Bolt, Hex Head 3/8-16 UNC x 1-1/2 (AYP part number) This part replaces 817490624. Price: $3.99 |
| 23 |
532128953 |
Shield Heat Browning LT/YT (AYP part number) Price: $3.08 |
| 24 |
817021008 |
Screw Tap Hex #10-24unc X 1/2 (AYP part number) Price: $1.99 |
| 25 |
532132781 |
Control, Choke (AYP part number) This part replaces 532132782. Price: $19.99 |
| 26 |
873680600 |
LOCKNUT This part replaces 873610600. Price: $1.99 |
| 29 |
532137180 |
Kit Spark Arrestor (Flat Scrn) (AYP part number) Price: $129.99 |
| 31 |
532151346 |
FUEL TANK This part replaces 532141069. Price: $59.99 |
| 32 |
532140527 |
Cap Asm Fuel W/sym Vented (AYP part number) Price: $6.99 |
| 33 |
532123487 |
Clamp Hose Blk (AYP part number) Price: $3.99 |
| 34 |
532106082 |
Pad, Spacer (AYP part number) Price: $2.99 |
| 35 |
539976934 |
HCS 5/16C X 3/4 This part replaces 817490512. Price: $1.99 |
| 36 |
819132012 |
Washer 13/32 x 1-1/4 x 12 Ga. (AYP part number) Price: $2.99 |
| 37 |
532008543 |
Line Fuel 54" (AYP part number) Price: $7.99 |
| 39 |
532109227 |
Pad, Idler (AYP part number) Price: $2.99 |
| 40 |
532003645 |
BUSHING OUTLET T This part replaces 532124952. Price: $2.99 |
| 41 |
532139277 |
Stem Tank Fuel (AYP part number) Price: $5.99 |
