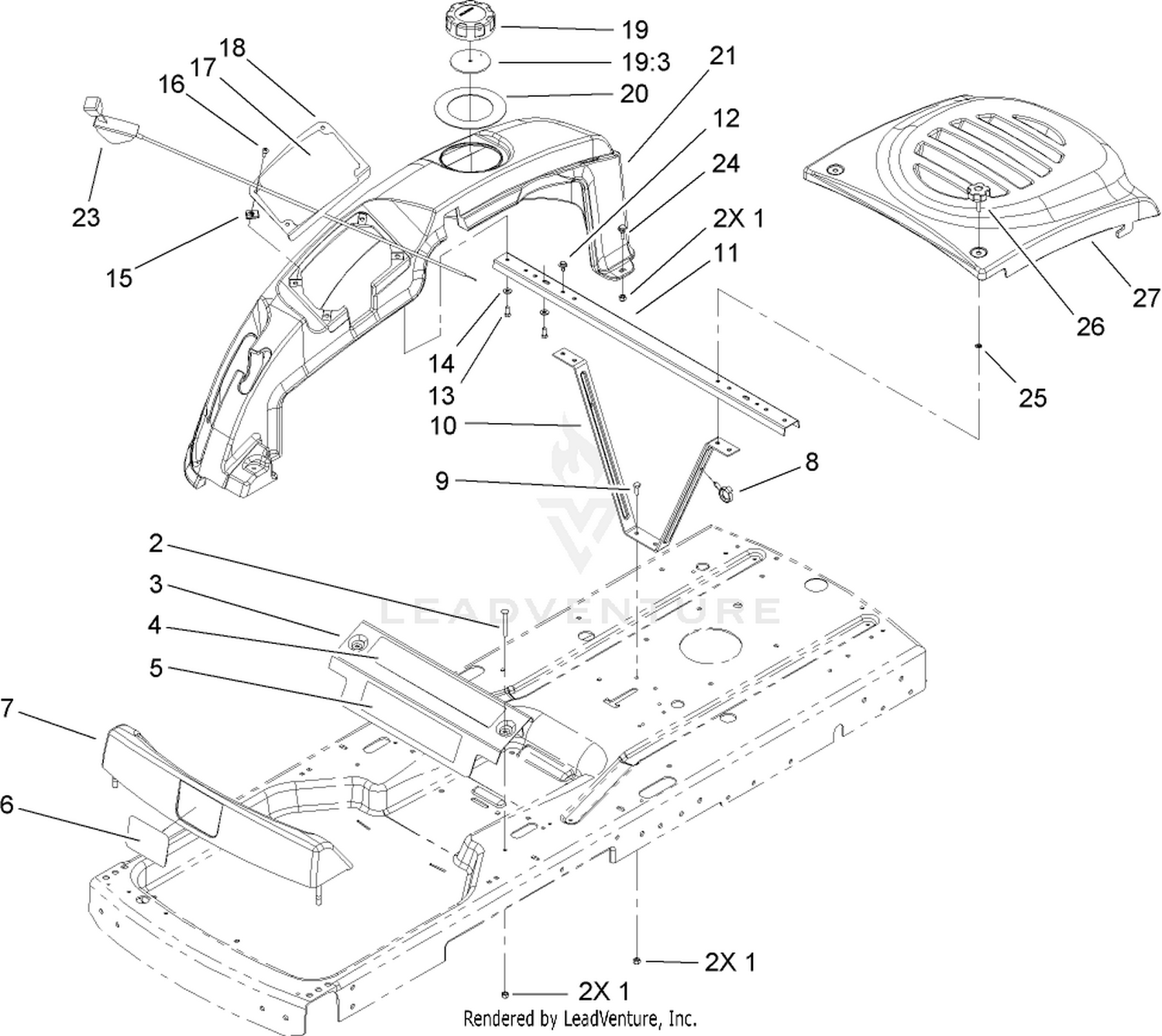

Styling Assembly
Parts (25)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 3296-42 | NUT-LOCK, NI Price: $0.28 |
| 2 | 3229-7 | SCREW-CARR Price: $0.87 |
| 3 | 106-2164-03 | BRACKET-SUPPORT, FRONT Price: $26.40 |
| 4 | 107-2514 | DECAL-DANGER Price: $10.68 |
| 5 | 108-7128 | DECAL Price: $6.25 |
| 6 | 105-6971 | DECAL Price: $5.04 |
| 7 | 105-6965 | FOOTREST ASM Price: $115.16 |
| 8 | 105-1853 | CLAMP-HOSE Price: $3.49 |
| 9 | 321-4 | SCREW-HH Price: $0.99 |
| 10 | 106-6994-03 | BRACE ASM Price: $25.36 |
| 11 | 108-2313-03 | CHANNEL-CROSS Price: $38.79 |
| 12 | 46-8560 | SCREW-HHFTF Price: $1.79 |
| 13 | 46-8090 | SCREW-PLASTITE Price: $1.84 |
| 14 | 3256-22 | WASHER-FLAT Price: $0.39 |
| 15 | 107069 | CLIP Price: $1.79 |
| 16 | 3258-166 | SCREW-PRH Price: $0.28 |
| 17 | 106-2224 | DECAL-CONTROL Price: $20.60 |
| 18 | 106-2167-03 | PANEL-CONTROL Price: $14.20 |
| 19 | 88-3980 | GAS CAP ASM Price: $31.99 |
| 20 | 106-7042 | SEAL-RUBBER Price: $6.25 |
| 21 | 106-2161 | COVER-SIDE, RH Price: $178.05 |
| 23 | 104-3626 | CABLE-THROTTLE Price: $48.15 |
| 24 | 11-9030 | SCREW-SHOULDER Price: $5.63 |
| 25 | 32115-15 | PUSHNUT-RETAINER, BOLT This part replaces 106-8737. Price: $0.99 |
| 26 | 106-7017 | KNOB Price: $13.18 |
