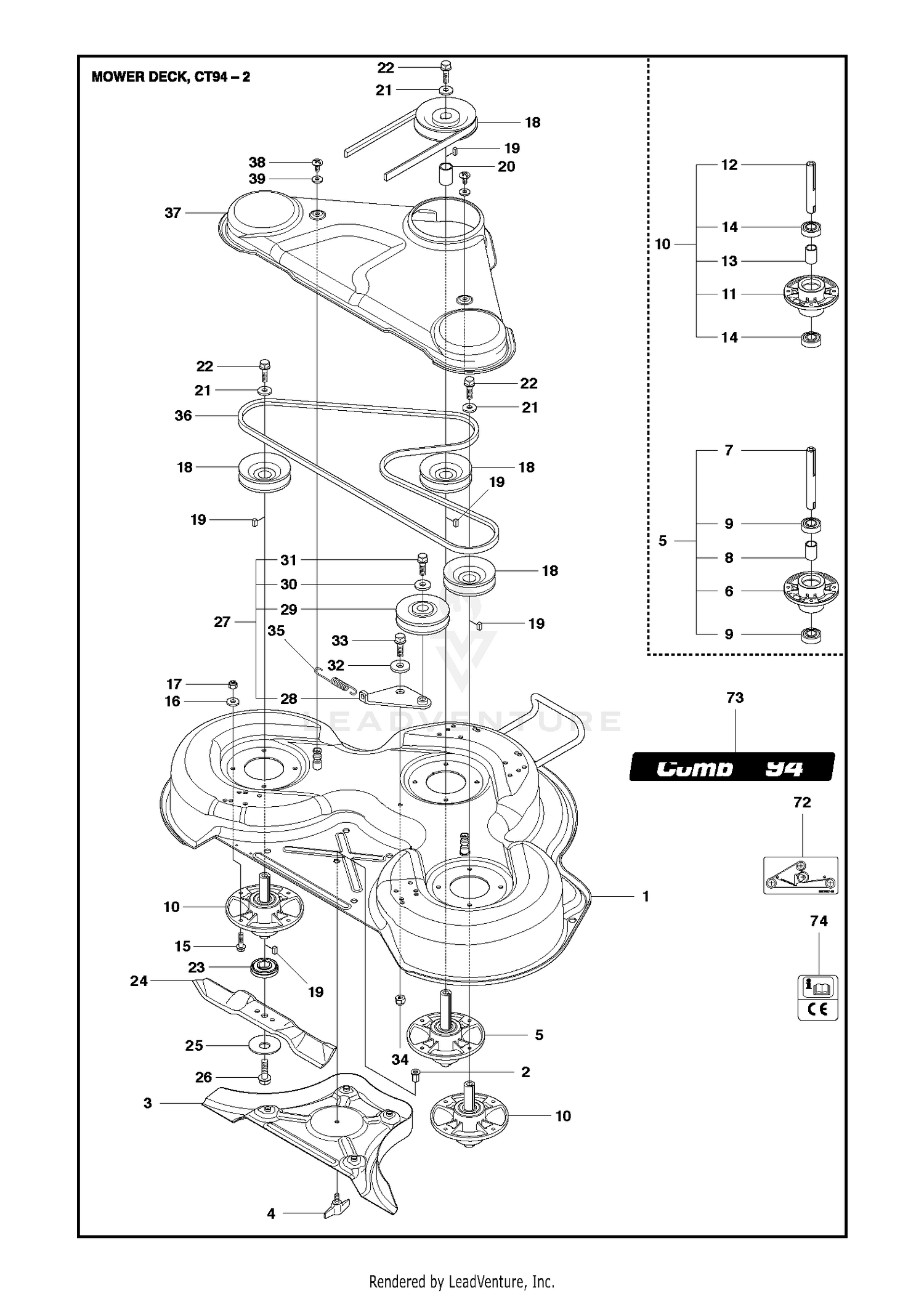

94CM CUTTING DECK
Parts (59)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 106-1093 | RING AND PINION SET Price: $954.77 |
| 1 | 544065509 | DECK SHELL ASSY CT94 GREY Price: $379.99 |
| 2 | 506916201 | NUT Price: $4.99 |
| 2 | 99-7570 | BEARING-ROLLER, TAPER Price: $61.91 |
| 3 | 544065801 | PLUG C93 & C94 Price: $44.99 |
| 3 | 95-7534 | CASE-BEARING Price: $176.21 |
| 4 | 106-1065 | O-RING Price: $9.02 |
| 4 | 544066101 | KNOB Price: $4.99 |
| 5 | 535503501 | NEEDS DESCRIPTION Price: Call Us |
| 5 | 99-7572 | COLLAR-SEAL, OIL Price: $21.01 |
| 6 | 106-1066 | O-RING Price: $5.71 |
| 6 | 576384201 | BEARING HOUSING This part replaces 544067801. Price: $29.99 |
| 7 | 535428701 | NEEDS DESCRIPTION Price: Call Us |
| 7 | 99-7574 | SEAL-OIL Price: $4.42 |
| 8 | 535428801 | SPACER Price: $7.99 |
| 8 | 99-7559 | WASHER-LOCK Price: $9.82 |
| 9 | 738220519 | BALL BEARING Price: $6.99 |
| 9 | 99-7560 | NUT-LOCK Price: $27.76 |
| 10 | 535503502 | NEEDS DESCRIPTION Price: Call Us |
| 10 | 99-7550 | SHIM 0.1 Price: $4.34 |
| 10 | 99-7551 | SHIM 0.2 Price: $4.55 |
| 11 | 576384201 | BEARING HOUSING This part replaces 544067801. Price: $29.99 |
| 11 | 95-7533 | CASE-GEAR Price: $289.33 |
| 12 | 535428702 | AXLE Price: $49.99 |
| 12 | 99-7575 | BOLT Price: $4.00 |
| 13 | 535428801 | SPACER Price: $7.99 |
| 13 | 98-7735 | STUD Price: $1.36 |
| 14 | 738220519 | BALL BEARING Price: $6.99 |
| 14 | 99-7527 | WASHER-SPRING Price: $1.02 |
| 15 | 535423801 | BOLT Price: $4.99 |
| 15 | 99-7526 | NUT Price: $1.29 |
| 16 | 734116401 | WASHER BRB 8.4X17 Price: $5.99 |
| 16 | 95-7541 | PLATE-COVER Price: $89.04 |
| 17 | 106-1140 | GASKET Price: $17.66 |
| 17 | 732211801 | LOCKNUT M8 Price: $3.99 |
| 18 | 535429001 | NEEDS DESCRIPTION Price: Call Us |
| 19 | 506533501 | KEY Price: $3.99 |
| 20 | 535428801 | SPACER Price: $7.99 |
| 21 | 535429201 | Price: Call Us |
| 22 | 725254251 | Screw Price: $4.99 |
| 23 | 535504201 | Price: Call Us |
| 24 | 579652610 | BLADE Price: $27.99 |
| 25 | 506792302 | WASHER Price: $12.99 |
| 26 | 725254251 | Screw Price: $4.99 |
| 27 | 586966601 | BELT TENSIONER ASSY KIT This part replaces 506540701. Price: $59.99 |
| 28 | 586966601 | BELT TENSIONER ASSY KIT This part replaces 506519501. Price: $59.99 |
| 29 | 506532701 | PULLEY Price: $39.99 |
| 30 | 734116441 | SPACER Price: $3.99 |
| 31 | 506558302 | BOLT Price: $3.99 |
| 32 | 584288604 | Washers This part replaces 506918702. Price: $3.99 |
| 33 | 725245171 | SCREW Price: $2.08 |
| 35 | 506533101 | SPRING Price: $9.99 |
| 36 | 589538501 | NEEDS DESCRIPTION Price: Call Us |
| 37 | 544066301 | BELT COVER C93 & C94 GREY Price: $44.99 |
| 38 | 506982601 | SCREW Price: $5.99 |
| 39 | 506559701 | WASHER Price: $4.99 |
| 72 | 506789701 | Decal Price: $21.55 |
| 73 | 544238110 | NEEDS DESCRIPTION Price: Call Us |
| 74 | 506929001 | DECAL Price: $3.99 |
