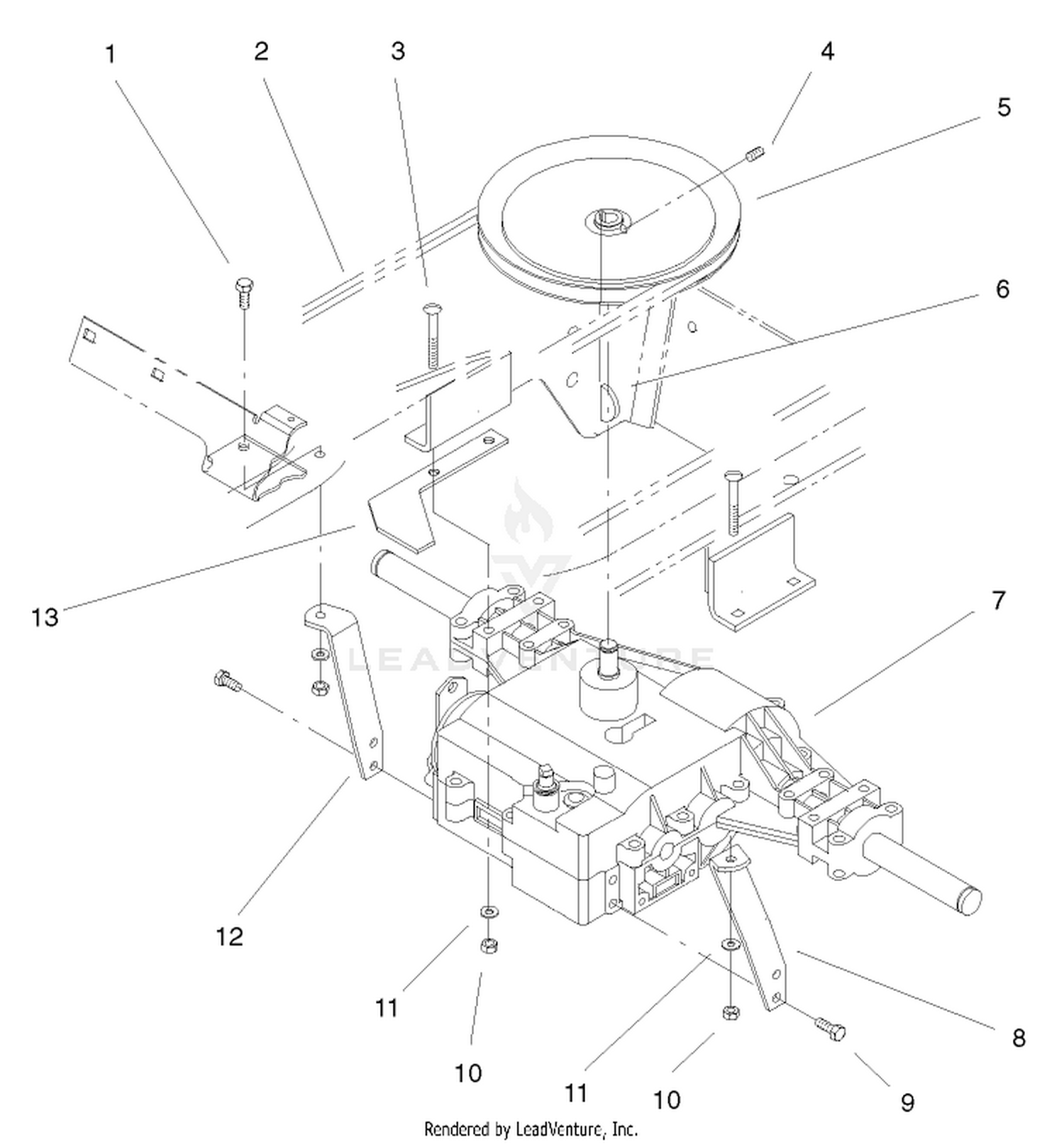

Gear Transaxle Assembly
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 322-6 | SCREW-HH Price: $0.45 |
| 2 | 92-6955 | BELT - V GEAR Price: $95.18 |
| 3 | 3230-26 | SCREW-CARR Price: $3.99 |
| 4 | 909543 | SCREW-SQ HD SET Price: $2.14 |
| 5 | 92-6887 | PULLEY-TRANS (GEAR) Price: $88.03 |
| 6 | 937225 | KEY-HI-PRO Price: $3.18 |
| 7 | 92-6761 | TRANSAXLE 820-024 Price: $2,991.03 |
| 8 | 92-6889-03 | DISCONTINUED Price: Call Us |
| 9 | 32144-70 | SCREW-HWHTF Price: $1.99 |
| 10 | 3296-29 | NUT-LOCK, NI Price: $2.09 |
| 11 | 3256-23 | WASHER-PLAIN Price: $0.28 |
| 12 | 92-6890-03 | DISCONTINUED Price: Call Us |
