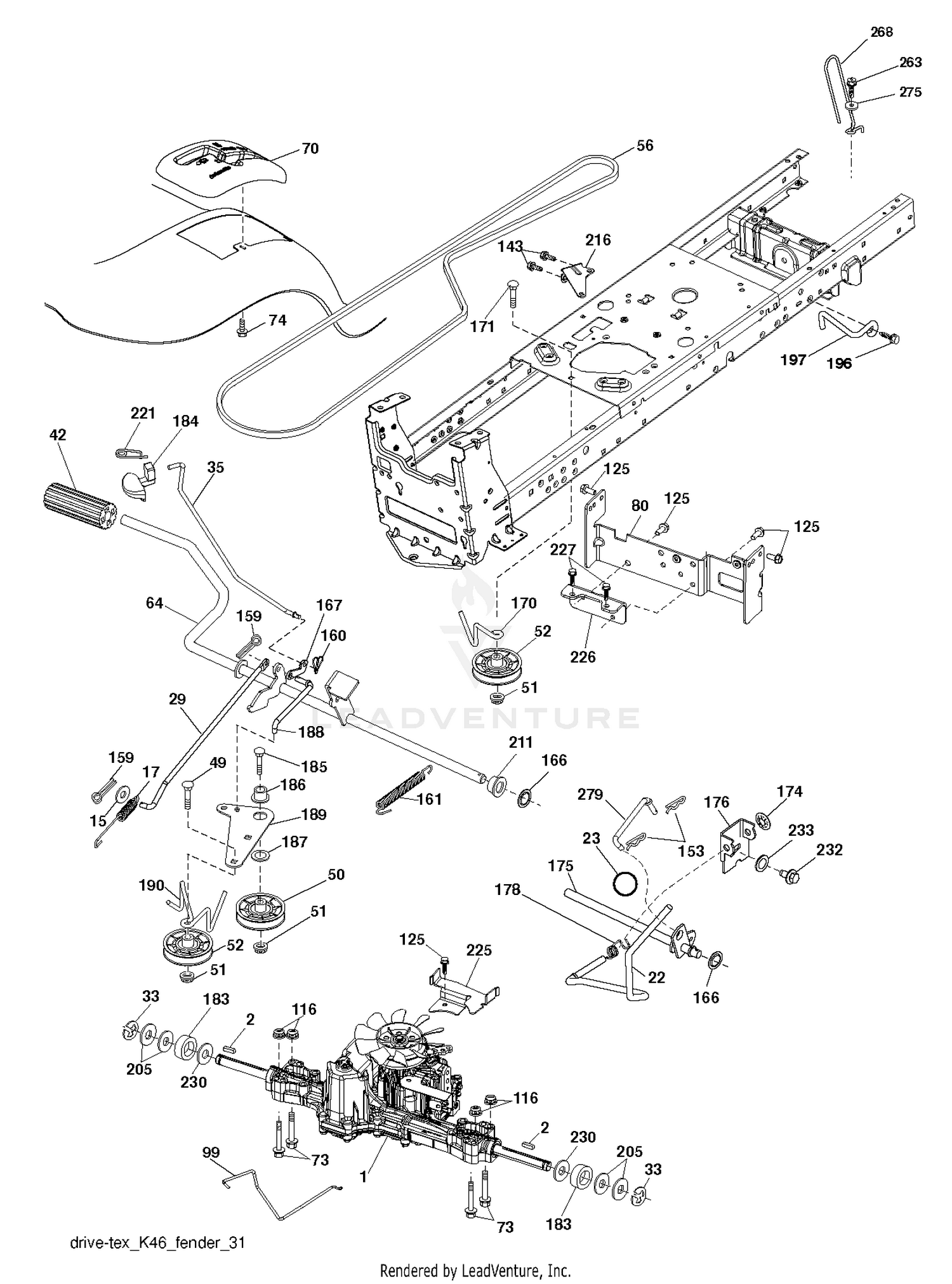

| Ref | Part Number | Description |
|---|
| 2 |
532123583 |
SQUARE KEY Price: $2.69 |
| 10 |
99-8321 |
MANIFOLD-INLET Price: $243.74 |
| 15 |
819131316 |
WASHER Price: $2.99 |
| 17 |
532413678 |
SPRING.BRAKE.K46.GREEN Price: $3.99 |
| 20 |
99-8329 |
GASKET-MANIFOLD, INTAKE Price: $21.36 |
| 22 |
532197660 |
ROD.SHIFT.FENDER.TLT.2006 Price: $30.99 |
| 23 |
532411400 |
Price: $56.99 |
| 29 |
532403806 |
ROD.BRAKE.K46 Price: $17.99 |
| 30 |
98-7568 |
BOLT Price: $0.84 |
| 33 |
812000001 |
E-RING LT Price: $2.99 |
| 35 |
532401031 |
ROD, BRAKE, PARK Price: $12.99 |
| 40 |
100-1765 |
BOLT This part replaces 107-9073. Price: $1.59 |
| 42 |
532008883 |
Cover, Pedal This part replaces 532124872. Price: $3.49 |
| 49 |
872110614 |
BOLT Price: $3.99 |
| 50 |
532194327 |
IDLER.FLAT.910.OFFSET Price: $9.99 |
| 50 |
99-8320 |
BOLT Price: $0.94 |
| 51 |
532409148 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $2.69 |
| 52 |
532194326 |
IDLER.V-GROOVE.910.OFFSET Price: $9.99 |
| 56 |
532130969 |
V-BELT Price: $22.99 |
| 60 |
99-8323 |
HOSE-INLET Price: $54.63 |
| 64 |
532196200 |
SHAFT.ASM.PEDAL.BRAKE. Price: $22.99 |
| 70 |
532411329 |
CONSOLE.SHIFT.STL.HYD.BLACK Price: $9.99 |
| 70 |
99-8324 |
BAND-PIPE Price: $3.47 |
| 73 |
874490540 |
BOLT Price: $2.99 |
| 74 |
532142432 |
SCREW.HI-LO.CONSOLE Price: $3.99 |
| 80 |
532440619 |
STRAP.TORQUE.K46.K57R.TT Price: $17.99 |
| 80 |
99-8322 |
BAND-PIPE Price: $19.99 |
| 90 |
108-1411 |
MANIFOLD-EXHAUST Price: $389.83 |
| 99 |
532415742 |
ROD.SPRING.BYPASS.K46.LT.Z Price: $6.99 |
| 100 |
98-9665 |
NUT Price: $2.17 |
| 110 |
98-9588 |
STUD Price: $1.87 |
| 116 |
873900500 |
NUT LOCK HEX FLANGE 5/16-18 Price: $2.99 |
| 125 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $2.49 |
| 143 |
817490508 |
Screw, Hex Washer Head Threaded, Rolling 5/16-18 x 1/2 Price: $3.99 |
| 153 |
532004497 |
RETAINER M This part replaces 532124788. Price: $5.99 |
| 159 |
876020412 |
COTTER PIN Price: $3.99 |
| 160 |
532169484 |
RETAINER CLIP Price: $4.99 |
| 161 |
532105709 |
SPRING, RETURN LT Price: $7.99 |
| 166 |
532429164 |
NUT.PUSH.625 Price: $2.99 |
| 167 |
532405257 |
LATCH.BRAKE.SPRING Price: $2.99 |
| 170 |
532194322 |
KEEPER.V-IDLER.CENTER. Price: $3.99 |
| 171 |
872110616 |
BOLT Price: $3.99 |
| 174 |
532197289 |
NUT.PUSH.500.2006 Price: $2.99 |
| 175 |
532406208 |
SHAFT ASM SHIFT Price: $14.99 |
| 176 |
532196214 |
ARM.CLEVIS.ROD.SHIFT Price: $4.99 |
| 178 |
532197456 |
SPRING.SHIFT.GT2006 Price: $2.99 |
| 183 |
532137057 |
SPACER AXLE Price: $3.99 |
| 184 |
532199996 |
HANDLE.PARKG.BRK.PRED.LT This part replaces 532441407. Price: $7.99 |
| 185 |
872110622 |
BOLT Price: $3.99 |
| 186 |
532194321 |
SPACER.RETAINER Price: $3.99 |
| 187 |
532413524 |
WASHER.13/32 X 1 X 1/2.11GUARD This part replaces 819133210. Price: $2.99 |
| 188 |
532194323 |
LINK.CLUTCH.GROUND.DRIVE Price: $7.99 |
| 189 |
532194317 |
BELLCRANK.GROUND.DRIVE.TEX. Price: $3.99 |
| 190 |
532194318 |
KEEPER.BELLCRANK.DRIVE Price: $4.99 |
| 196 |
817000616 |
SCREW 3/8-16X1 Price: $3.99 |
| 197 |
532195804 |
LINK.CLUTCH.ANIT-ROTAT Price: $4.99 |
| 205 |
532121748 |
WASHER Price: $1.99 |
| 211 |
532196212 |
BUSHING.SHAFT.BRAKE.HAND Price: $2.99 |
| 216 |
532196131 |
BRACKET.PULLEY.IDLER.W/TEX Price: $3.99 |
| 221 |
532403187 |
RETAINER.SPRING.CLIP.H Price: $2.99 |
| 225 |
532403319 |
KEEPER.BELT.TRANSAXLE.K46 Price: $14.99 |
| 226 |
532401564 |
BRACKET.MOUNT.TORQUE.K46.TLT Price: $12.99 |
| 227 |
539976934 |
HCS.5/16-18X3/4 This part replaces 817490512. Price: $1.99 |
| 230 |
532188967 |
WASHER.HARDENED Price: $2.99 |
| 232 |
874780716 |
BOLT FIN HEX 7/16-14 X 1 Price: $2.99 |
| 233 |
532405296 |
WASHER SERRATED Price: $3.99 |
| 263 |
817000612 |
SCREW, 3/8-16X3/4 Price: $2.99 |
| 268 |
532182402 |
Price: $4.99 |
| 275 |
819131612 |
Washer 13/32 x 1 x 12 Ga. This part replaces 819131614. Price: $3.99 |
