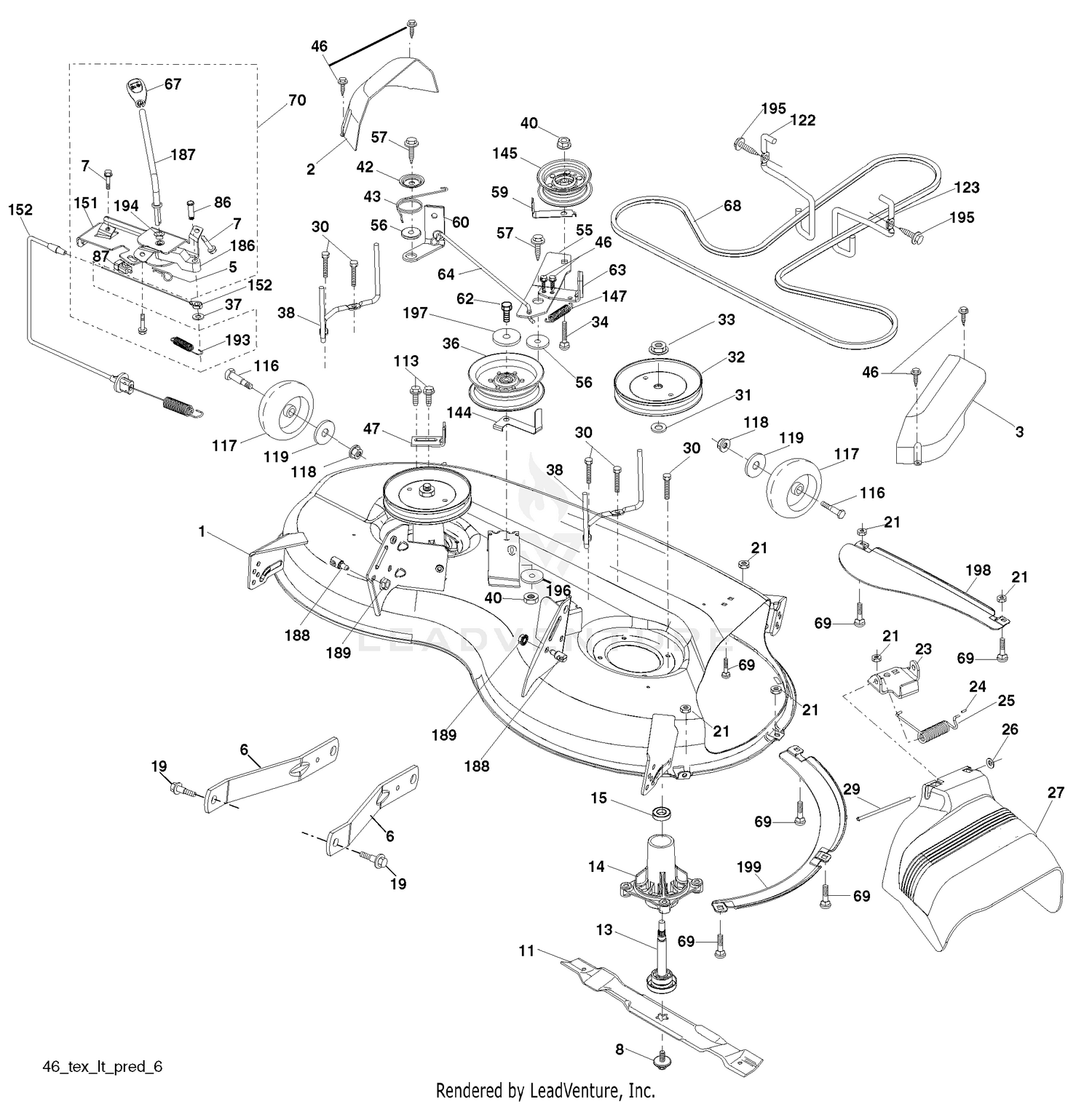

| Ref | Part Number | Description |
|---|
| 1 |
405050X421 |
Mower Housing Price: Call Us |
| 1 |
94-6765 |
FITTING-BARBED, 90 DEG Price: $10.99 |
| 2 |
405507 |
Cover Mandrel Price: Call Us |
| 3 |
110-7501 |
HOSE-FUEL This part replaces 94-4522. Price: $12.75 |
| 3 |
405506 |
Cover Mandrel Price: Call Us |
| 4 |
110-3257 |
HOSE-FUEL This part replaces 63-7630. Price: $17.26 |
| 5 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 5 |
4939M |
Retainer Spring Price: Call Us |
| 6 |
195186 |
Arm Suspension Price: Call Us |
| 6 |
324-5 |
SCREW-HH Price: $0.54 |
| 7 |
191611 |
Screw 10 x 3/4 Single Hex Price: Call Us |
| 7 |
3256-25 |
WASHER-FLAT Price: $0.25 |
| 8 |
193003 |
Bolt/Washer asm 7/16-20 unf Price: Call Us |
| 8 |
3296-48 |
NUT-LOCK, NI Price: $0.37 |
| 9 |
3256-67 |
WASHER Price: $0.49 |
| 10 |
23-7270 |
NUT-LUG Price: $10.37 |
| 11 |
405380 |
Blade Mower Price: Call Us |
| 11 |
86-9640-03 |
FRONT AXLE ASM Price: $2,641.21 |
| 11 |
92-2377-03 |
FRONT AXLE ASM Price: $4,787.10 |
| 12 |
66-8120 |
PIPE-STAND Price: $36.87 |
| 13 |
110-4107 |
HOSE-FUEL This part replaces 63-7622. Price: $7.77 |
| 13 |
192872 |
Shaft Assembly, Mandrel Price: Call Us |
| 14 |
187281 |
Housing, Mandrel Price: Call Us |
| 14 |
321-5 |
SCREW-HH Price: $0.22 |
| 15 |
110485X |
Bearing, Ball, Mandrel Price: Call Us |
| 15 |
237-136 |
GROMMET Price: $3.52 |
| 16 |
105-7172 |
DIPSTICK ASM Price: $46.40 |
| 17 |
98-5001 |
TANK-FUEL Price: $278.13 |
| 18 |
93-3102 |
CAP-FUEL Price: $24.02 |
| 19 |
196539 |
Bolt, Shoulder Price: Call Us |
| 19 |
3253-8 |
WASHER-LOCK Price: $0.47 |
| 20 |
3253-15 |
WASHER-LOCK Price: $1.49 |
| 21 |
32122-24 |
SCREW-PTH Price: $0.27 |
| 21 |
73680500 |
Nut Price: Call Us |
| 22 |
63-7640 |
SENDER-FUEL Price: $94.22 |
| 23 |
192557 |
Bracket, Deflector Price: Call Us |
| 23 |
42-6080 |
SHIM-AXLE Price: $29.45 |
| 24 |
105304X |
Cap, Sleeve Price: Call Us |
| 24 |
3273-38 |
SCREW-HSH Price: $6.65 |
| 25 |
108-9698 |
HOSE-FUEL This part replaces 105-0020. Price: $38.48 |
| 25 |
197026 |
Spring, Torsion, Deflector Price: Call Us |
| 26 |
110-9678 |
BRACKET-CARRIER This part replaces 98-2328-03. Price: $160.63 |
| 26 |
110452X |
Nut, Push Price: Call Us |
| 27 |
405357 |
Shield, Deflector Price: Call Us |
| 27 |
62-7650 |
GASKET Price: $4.28 |
| 28 |
2412-108 |
CLAMP-WORM Price: $1.29 |
| 29 |
131491 |
Rod, Hinge Price: Call Us |
| 30 |
173984 |
Screw Thdrol Rolling Wsh Hd Price: Call Us |
| 30 |
46-6560 |
BUSHING Price: $2.94 |
| 31 |
110-4105 |
HOSE-FUEL This part replaces 63-7620. Price: $11.71 |
| 31 |
187690 |
Washer, Spacer Price: Call Us |
| 32 |
104-5215 |
PUMP-FUEL, ELECTRIC Price: $264.12 |
| 32 |
195945 |
Pulley, Mandrel Price: Call Us |
| 33 |
3234-26 |
SCREW-HHF Price: $2.69 |
| 33 |
400234 |
Nut, Toplock, Flanged Price: Call Us |
| 34 |
72110612 |
Bolt Carr Sh. 3/8-16 x 1-1/2 Gr. 5 Price: Call Us |
| 34 |
92-5083 |
HOSE-HYD Price: $25.27 |
| 36 |
196106 |
Pulley, Idler, Flat Price: Call Us |
| 36 |
92-5088 |
FITTING-ELBOW, 45 DEG Price: $124.81 |
| 37 |
19131316 |
Washer 13/32 x 13/16 x 16 Ga. Price: Call Us |
| 38 |
105-7169 |
TUBE-FILL, OIL Price: $89.59 |
| 38 |
199189 |
Keeper Belt LH Mandrel Price: Call Us |
| 39 |
2810-1 |
COUPLING-PIPE Price: $4.55 |
| 40 |
289-6 |
NIPPLE-PIPE Price: $6.96 |
| 40 |
73900600 |
Nut, Lock Flg. 3/8-16 unc Price: Call Us |
| 41 |
2412-34 |
CLAMP-HOSE Price: $2.14 |
| 42 |
198410 |
Spring Trosion Brake Price: Call Us |
| 42 |
353-781 |
FITTING-HYD, 90 Price: $24.44 |
| 43 |
197256 |
Spring Torsion Retainer Price: Call Us |
| 44 |
353-783 |
FITTING-STR Price: $29.05 |
| 45 |
321-4 |
SCREW-HH Price: $0.99 |
| 46 |
110-4113 |
HOSE-FUEL This part replaces 63-7627. Price: $9.44 |
| 46 |
137729 |
Screw Price: Call Us |
| 47 |
197250 |
Bracket Clutch Cable Price: Call Us |
| 47 |
98-7612 |
FILTER-FUEL Price: $10.48 |
| 48 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 51 |
98-9305 |
WATER / FUEL FILTER ASM Price: $116.51 |
| 52 |
321-5 |
SCREW-HH Price: $0.22 |
| 53 |
32128-33 |
NUT-HF Price: $0.25 |
| 55 |
104-3409-03 |
BRACKET-FILTER Price: $34.33 |
| 55 |
197249 |
Arm, Idler Price: Call Us |
| 56 |
199092 |
Spacer, Retainer Price: Call Us |
| 57 |
17000616 |
Screw Hexwsh Thd 3/8-16 x 1 Price: Call Us |
| 59 |
141043 |
Guard, Tuv Idler (94) Price: Call Us |
| 60 |
400132 |
Arm Brake Mower Price: Call Us |
| 62 |
74520636 |
Bolt Fin Hex 3/8-16 x 2-1/4 Gr. 5 Price: Call Us |
| 63 |
199478 |
Arm Brake Mower Price: Call Us |
| 64 |
405139 |
Linkage Brake Price: Call Us |
| 67 |
198398X421 |
Handle, Clutch Cable Price: Call Us |
| 68 |
405143 |
V-Belt Price: Call Us |
| 69 |
72140505 |
Bolt Price: Call Us |
| 70 |
198332 |
Clutch Asm. Manual Price: Call Us |
| 86 |
197798 |
Pin Attachment Cable Price: Call Us |
| 87 |
197802 |
Switch Interlock Price: Call Us |
| 113 |
17000510 |
Screw 5/16-18 Price: Call Us |
| 116 |
4898H |
Bolt, Shoulder Price: Call Us |
| 117 |
188606 |
Wheel, Gauge Price: Call Us |
| 118 |
73930600 |
Nut, Crownlock 3/8-1 Price: Call Us |
| 119 |
19121414 |
Washer 13/32 x 7/8 x 14 Ga. Price: Call Us |
| 122 |
197258 |
Keeper Belt Eng. LH Price: Call Us |
| 123 |
197259 |
Keeper Belt Eng. RH Price: Call Us |
| 144 |
199204 |
Keeper Belt Price: Call Us |
| 145 |
177968 |
Pulley Idler Price: Call Us |
| 147 |
401872 |
Spring Return Price: Call Us |
| 151 |
198331 |
Bracket Clutch CBL Price: Call Us |
| 152 |
408714 |
Cable Clutch Manual w/Spr. Price: Call Us |
| 186 |
197799 |
Arm Acutator CL Cable Price: Call Us |
| 187 |
197800 |
Lever Control CL Cable Price: Call Us |
| 188 |
195161 |
Stud Fastener Price: Call Us |
| 189 |
73900500 |
Nut Lock Hex Flange Price: Call Us |
| 193 |
197801 |
Spring Plunger Actuator Price: Call Us |
| 194 |
197797 |
Bearing Control Lever Clutch Price: Call Us |
| 195 |
17000612 |
Screw Hexwsh Thdrol 3/8-16 x 3/4 Price: Call Us |
| 196 |
19133210 |
Washer 13/32 x 2 x 10 Ga Price: Call Us |
| 197 |
19131312 |
Washer 13/32 x 13/16 x 12 Ga. Price: Call Us |
| 198 |
403149 |
Baffle Center Front Price: Call Us |
| 199 |
403150 |
Baffle Front RH Price: Call Us |
